A commercial-grade electrode steam humidifier engineered for comprehensive whole-house moisture distribution independent of HVAC heating cycles. The AprilAire 800 generates pure steam by passing electric current between submerged electrodes in an internal disposable canister, delivering between 11.5 and 34.6 gallons per day (GPD) depending on electrical supply voltage and amperage configuration. Because the system produces steam independently of furnace plenum heat, it is the premier choice for homes heated by variable-capacity heat pumps, radiant in-floor hydronic systems, large luxury floor plans up to 6,200 sq. ft., or structures with humidity-sensitive hardwood flooring and fine architectural millwork. Packaged with the Model 62 Automatic Digital Humidifier Control and exterior temperature sensor, the unit modulates moisture delivery 24/7 to prevent window condensation throughout harsh Canadian winters.
Technical specifications
| Warranty | Your AprilAire® Humidifier is expressly warranted to be free from defects in materials or workmanship for five (5) years from date of purchase. Source: AprilAire warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Electrode steam technology — electric current passes through natural minerals in water to boil steam efficiently without exposed heating elements that foul or burn out.
- Multi-voltage electrical flexibility — field-configurable for 120 VAC, 208 VAC, or 240 VAC supply power to deliver 11.5, 16.0, 20.5, 23.3, or 34.6 gallons per day.
- Independent moisture delivery — introduces steam directly into the supply plenum regardless of furnace firing rate, ideal for heat pump and geothermal systems.
- Automatic digital humidity control — includes Model 62 digital controller and outdoor temperature sensor to dynamically modulate indoor humidity based on exterior winter temperatures.
- Tap water compatibility — operates on municipal or domestic well water between 3 and 36 grains per gallon; no reverse osmosis or water softening pre-filtration required.

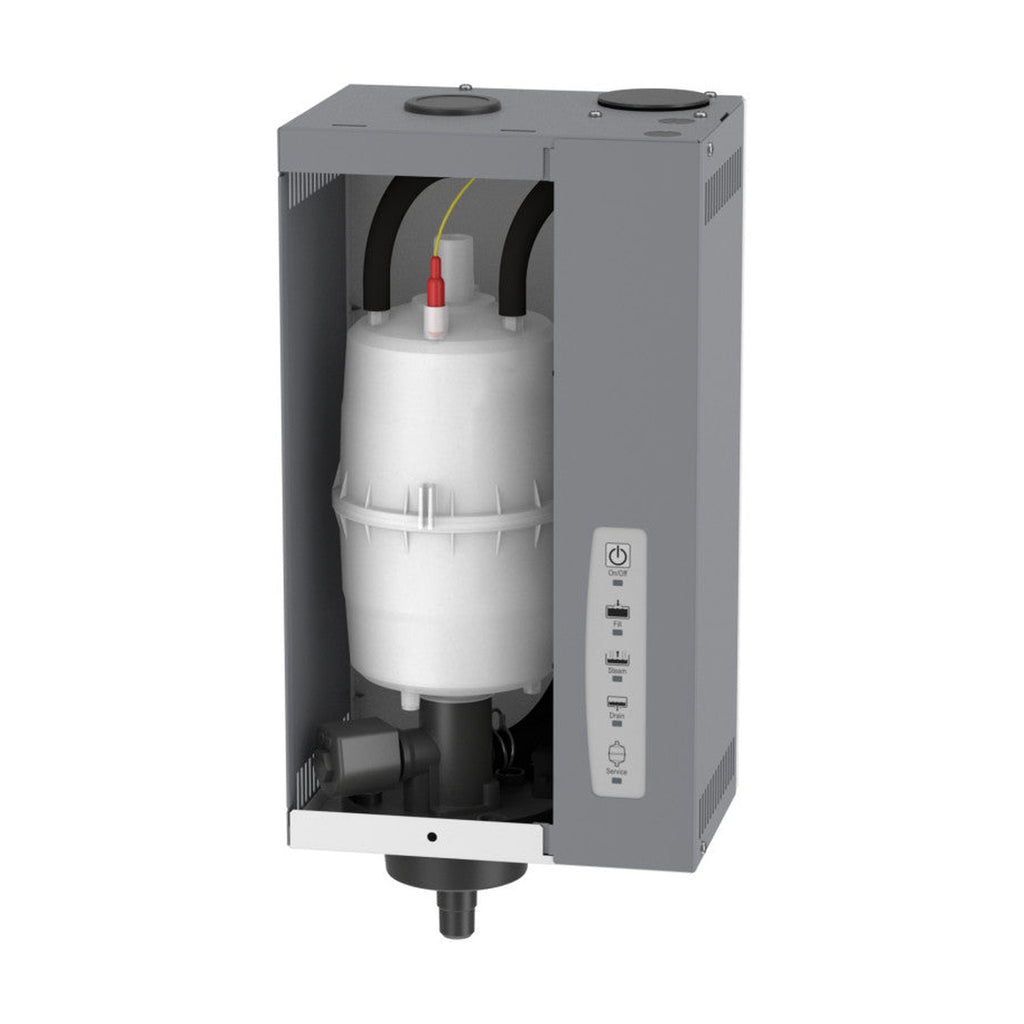

- Simple annual maintenance — disposable Model 80 steam canister unplugs and replaces in minutes without mechanical scrubbing or acid descaling.
Sizing guide
| 240V / 16.0A (34.6 GPD / 131.0 L/day) | Tight construction up to 6,200 sq. ft. (576 m²) · Average construction up to 3,900 sq. ft. |
|---|---|
| 240V / 11.5A (23.3 GPD / 88.2 L/day) | Tight construction up to 4,400 sq. ft. (409 m²) · Average construction up to 2,800 sq. ft. |
| 208V / 11.5A (20.5 GPD / 77.6 L/day) | Tight construction up to 3,800 sq. ft. (353 m²) · Average construction up to 2,400 sq. ft. |
| 120V / 16.0A (16.0 GPD / 60.6 L/day) | Tight construction up to 3,000 sq. ft. (279 m²) · Average construction up to 1,900 sq. ft. |
| 120V / 11.5A (11.5 GPD / 43.5 L/day) | Tight construction up to 2,200 sq. ft. (204 m²) · Average construction up to 1,400 sq. ft. |
Specifications
| Manufacturer | AprilAire |
|---|---|
| Series | 800 Series Whole-House Steam |
| Model / SKU | 800 |
| Equipment type | Residential electrode canister steam humidifier |
| Evaporative capacity range | 11.5 to 34.6 Gallons Per Day (43.5 to 131.0 Liters/day) |
| Maximum coverage (tight construction) | Up to 6,200 sq. ft. (576 m²) @ 240V / 16.0A |
| Maximum coverage (average construction) | Up to 3,900 sq. ft. (362 m²) @ 240V / 16.0A |
| Maximum coverage (loose construction) | Up to 2,600 sq. ft. (242 m²) @ 240V / 16.0A |
| Supply voltage options | 120 VAC · 208 VAC · 240 VAC (single phase, 60 Hz) |
| Operating current | 11.5 A or 16.0 A (internal circuit board jumper selectable) |
| Power consumption | 1.4 kW (120V/11.5A) to 3.8 kW (240V/16.0A) |
| Control included | Model 62 Automatic Digital Humidifier Control |
| Outdoor temperature sensor | Included (digital proportional outdoor reset) |
| Replacement steam canister | Model 80 Steam Canister (disposable) |
| Water requirements | Potable tap water (hard or soft), 3 to 36 grains/gal conductivity |
| Water feed connection | 1/4 in. O.D. copper tubing with compression fitting & inline strainer |
| Water feed operating pressure | 25 to 120 PSI (172 to 827 kPa) |
| Drain hose connection | 7/8 in. I.D. flexible drain hose (10 ft length included) |
| Steam distribution tube | Stainless steel duct-mount dispersion tube included |
| Steam delivery hose | 6 ft high-temperature EPDM steam hose included |

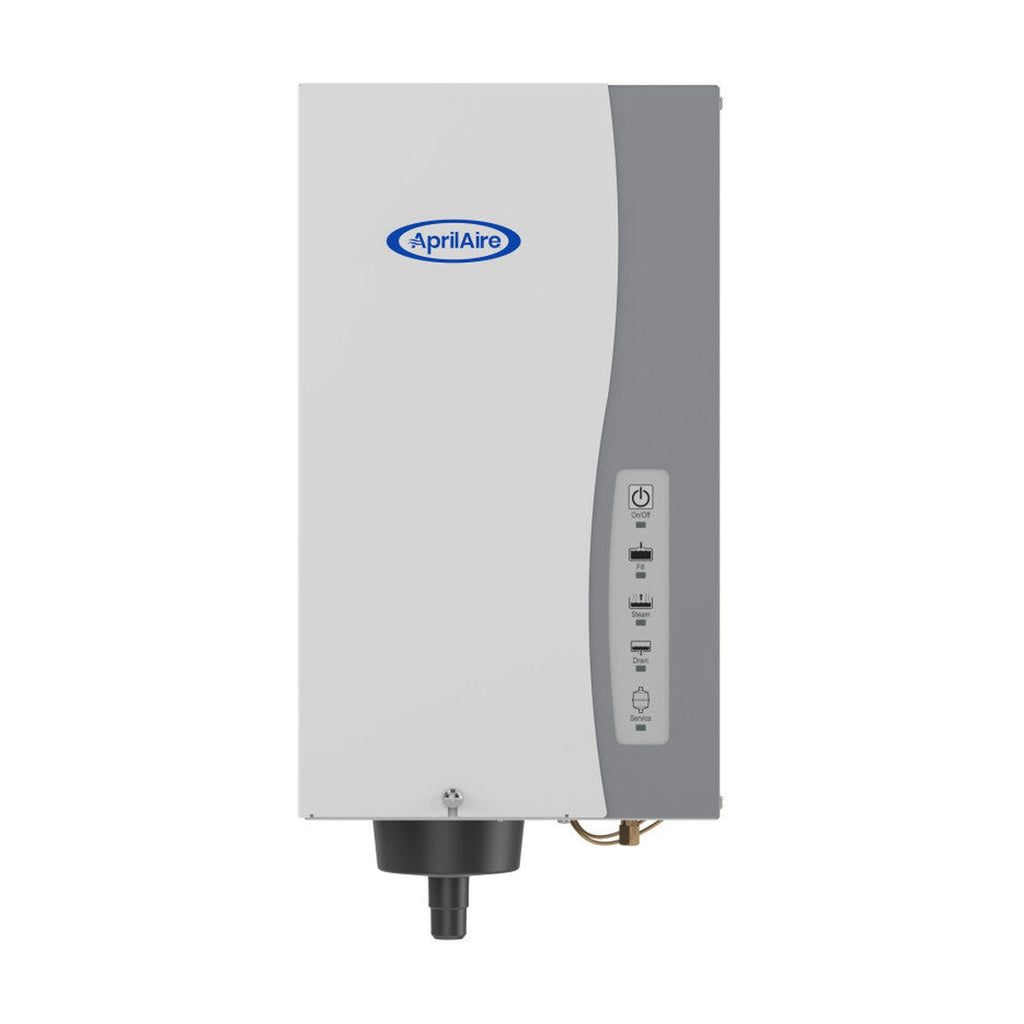

| Cabinet material | Corrosion-resistant galvanized sheet steel |

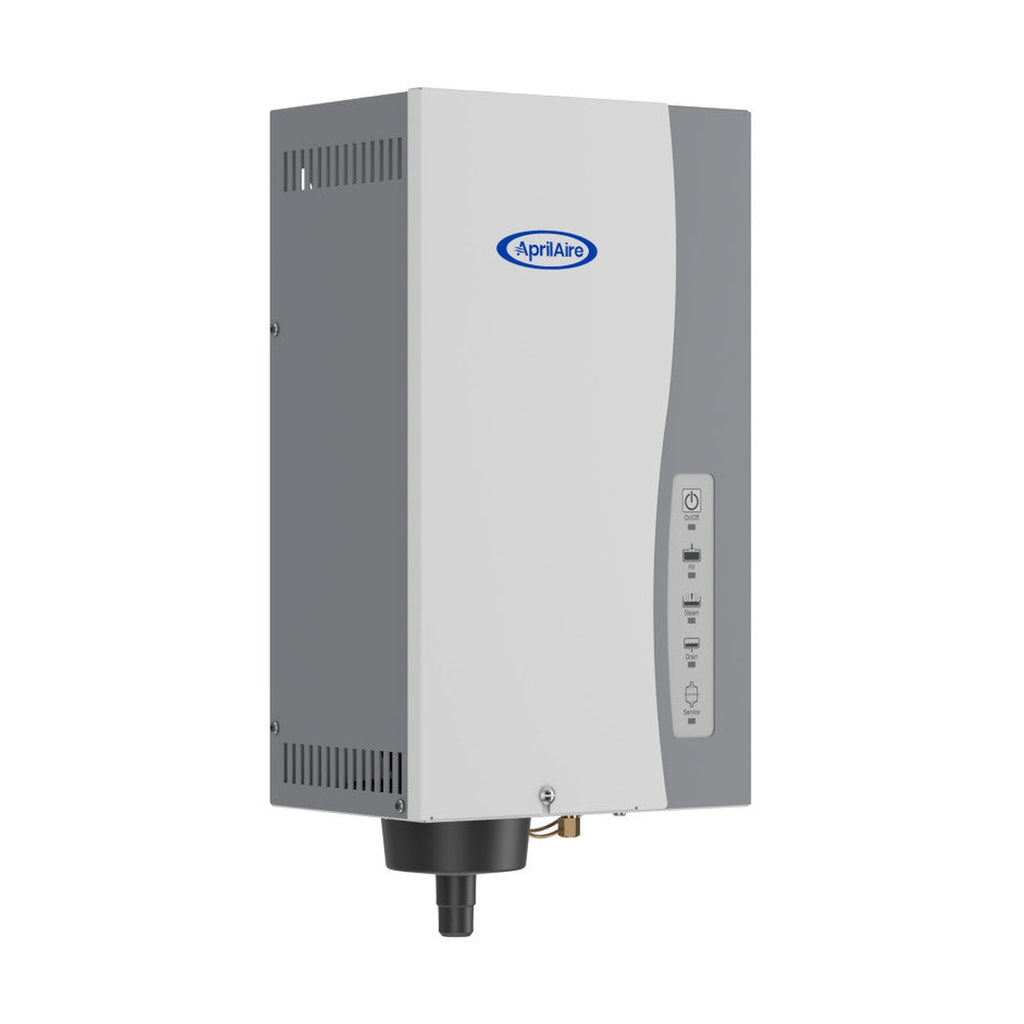

| Cabinet dimensions | 20-7/8 in. H × 10-1/8 in. W × 7-1/8 in. D (530 × 257 × 181 mm) |
| Unit dry weight | 23 lbs (10.4 kg) |
| Operating sound level | Whisper quiet (solid-state relays, no mechanical contactor noise) |
| Safety & code listings | UL listed (File E142277), CSA certified, AHRI Guideline F |
Before you buy
- Requires a dedicated electrical circuit rated for either 120 VAC (15A or 20A breaker) or 240 VAC (15A or 20A breaker) wired by a licensed electrical contractor according to CSA C22.1 Canadian Electrical Code.
- Electrode technology requires natural mineral conductivity (3 to 36 grains per gallon); do not feed the unit with reverse osmosis, deionized, or ultra-pure water.
- The stainless steel steam dispersion tube requires vertical supply ductwork or a minimum horizontal clearance of 24 inches upstream of any elbows, turning vanes, or air filters.
- The 7/8-inch drain line discharges hot tempered water and must maintain continuous downward slope to an approved drain or high-temperature rated condensate pump (rated ≥ 160°F / 71°C).
- Replace the Model 80 steam canister annually at the start of each winter humidification season for optimal output.
Questions about dedicated electrical circuit sizing or steam dispersion placement? Contact our technical team for assistance.
Frequently asked questions
Documents
- AprilAire 800 Steam Humidifier Engineering Specification Sheet (PDF)
- AprilAire 800 Series Steam Humidifier Installation & Maintenance Manual (PDF)
- AprilAire 800 Series Steam Humidifier Owner's Manual (PDF)
- AprilAire Canada All Products Specification Reference Guide (PDF)
Specifications compiled from official AprilAire 800 Series Engineering Specification Sheet (Lit. No. 251) and 800 Series Installation and Maintenance Manual (B2210091). All specifications subject to manufacturer verification. View AprilAire 800 specifications (PDF).
Common questions
Is installation included?
No. AVL Shop sells equipment only. Installation is done by an independent licensed contractor that you hire.
How is freight charged?
Freight cost is included in your written quote before you pay.
What warranty does this product have?
The manufacturer warranty applies. Where we have the manufacturer’s exact wording, it is shown in the Warranty row of the specifications on this page, with a link to the source.
How do I get a quote?
Use Request a quote on this page and send the model and your city or postal code.
