The world's #1 salt chlorination system upgraded with Extended Life TurboCell® technology. The Hayward AquaRite 900 generates soft, crystal-clear water while cutting chlorine costs by up to 50%. The included Extended Life TurboCell produces 1.5× more chlorine over its lifetime than standard replacement cells, delivering long-lasting performance and dependable sanitation.
Technical specifications
| Warranty | 2026 EXPERT LINE® RESIDENTIAL WARRANTY TERMS All Products* Exceptions listed below In Ground Standard Parts 3 Years Field Labor 1 Year Standard Salt Cells 3 years parts only when purchased individually. Source: Hayward warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Extended Life TurboCell® included — commercial-grade titanium plates with high-density ruthenium coating deliver 1.5× the lifespan of standard cells.
- Digital salt display and 8 diagnostic indicators — clearly shows real-time salinity, cell temperature, voltage, and instantaneous chlorine production.
- Super chlorinate boost mode — handles pool parties and heavy storm contamination with automatic timer protection.
- Quick connect weatherproof control center — NEMA 3R outdoor rated enclosure installs easily alongside any equipment pad.
- Omni® smart pool automation ready — easily integrates with Hayward OmniHub® or OmniLogic® for total smartphone control.
Specifications
| Brand | Hayward |
|---|---|
| Series | AquaRite 900 Series (Canadian CUL Certified) |
| Product type | Residential in-ground salt water chlorination system |
| Operating salinity | 2,700 to 3,400 PPM (Optimal: 3,200 PPM) |
| AQR925-CUL capacity | Produces up to 0.95 lb chlorine/day • Pools up to 25,000 gal (95,000 L) |
| AQR940-CUL capacity | Produces up to 1.45 lb chlorine/day • Pools up to 40,000 gal (150,000 L) |
| Input electrical power | 120V / 240V, 50/60 Hz field selectable |
| Cell plumbing connection | 2 in slip unions included |
Before you buy
- Salinity requirement: Test baseline pool water before adding salt; use only non-iodized evaporated pool-grade salt (NaCl).
- Venting / air gap: Install cell as the very last component on the pool return line after the heater and filter.
- Winter care: Remove TurboCell for winter, inspect for scale, and store indoors away from sub-zero temperatures.

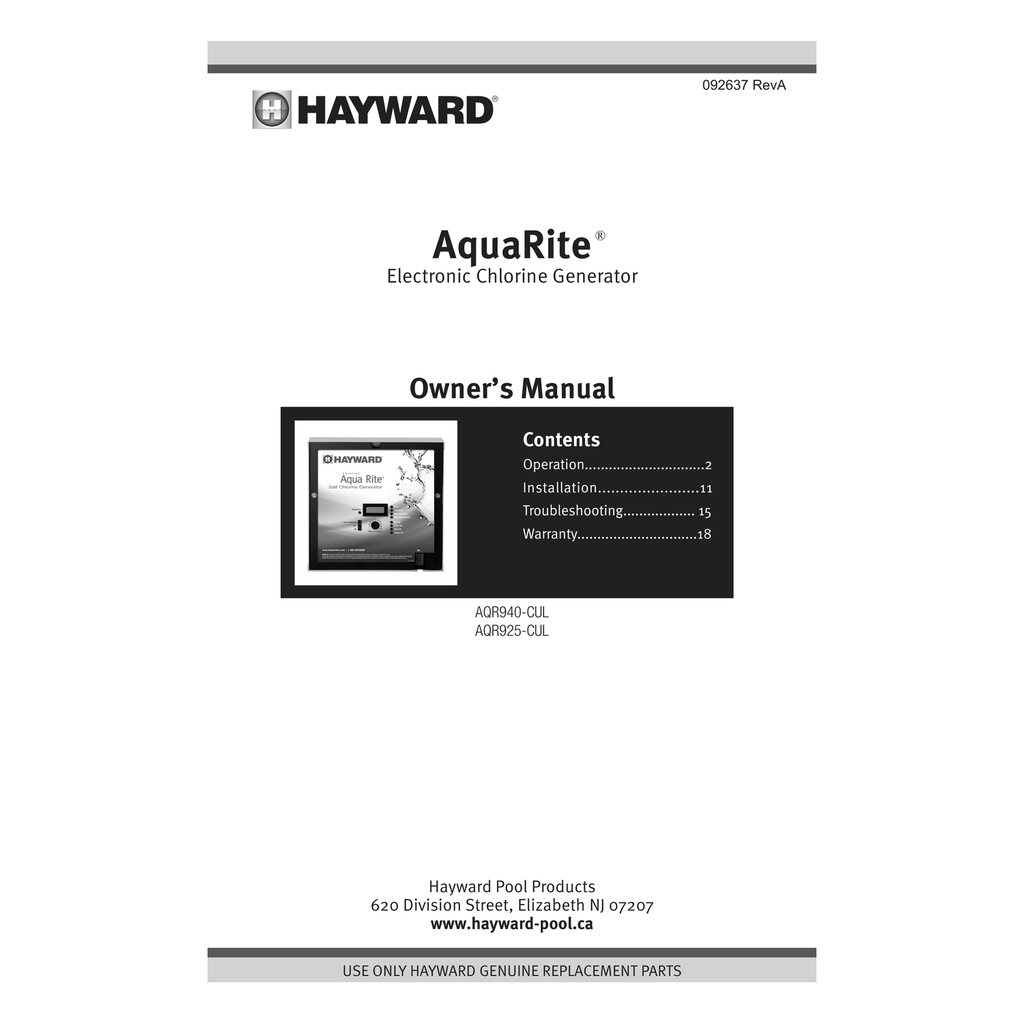

Documents
Frequently asked questions
What makes the AquaRite 900 different from standard AquaRite systems?
The AquaRite 900 features Hayward's premium Extended Life TurboCell technology. Built with enhanced commercial-grade ruthenium and titanium plate coating, it generates up to 1.5 times more chlorine over its lifetime compared to conventional replacement cells.
What salt concentration does the Hayward AquaRite 900 require?
The system requires an operating salinity between 2,700 and 3,400 PPM, with 3,200 PPM being the optimal target. If salinity drops below 2,700 PPM, the diagnostic LED will illuminate indicating salt needs to be added to the pool.
How do I winterize the Hayward TurboCell in Ontario?
Prior to freezing temperatures in late fall, turn off power to the control panel, loosen the union nuts, and remove the TurboCell. Inspect for scale buildup, rinse clean, and store the cell indoors. Install a winter dummy pipe or plug to seal the return plumbing.
Can the AquaRite 900 be integrated with Hayward smart pool controls?
Yes. The Canadian CUL-certified AquaRite 900 connects directly with Hayward OmniHub and OmniLogic automation systems, enabling remote monitoring of salinity, sanitizer levels, and super-chlorination schedules through the Hayward Omni app.
Specifications from Hayward Pool Products technical engineering documentation.
