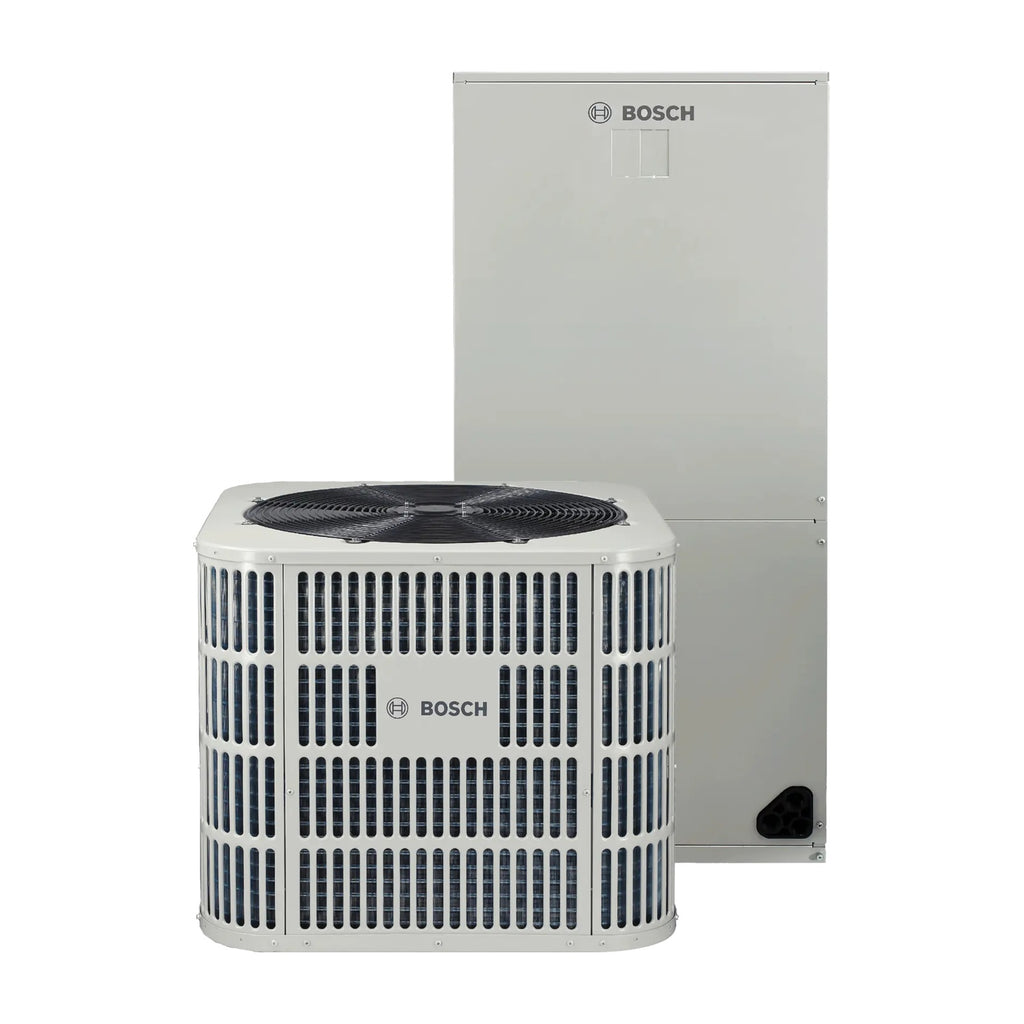

A fully modulating, whisper-quiet central heat pump designed for whole-home comfort. The Bosch IDS Premium 2.0 pairs an inverter-driven variable-capacity compressor with ducted air distribution. Instead of cycling abruptly on and off like conventional single-stage systems, it modulates in fine 1% increments between 25% and 110% capacity to precisely match your home's heating and cooling demand, providing steady indoor temperatures, reduced energy consumption, and whisper-quiet sound levels.
Technical specifications
| System Type | Ducted |
|---|---|
| Warranty | For Products installed in a one or two family residential dwelling, BTC warrants that all compressors and internal components incorporated into the Product at the time of shipment by BTC, excluding Gateway Assembly, by BTC shall remain free from defects in workmanship and materials for ten (10) years from the Commencement Date At all times the warranty is valid only if the Product is properly installed and properly maintained by a licensed HVAC contractor and all other conditions of this warranty are met. Source: Bosch warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
Key features
- Fully modulating inverter compressor — adjusts speed automatically between 25% and 110% in 1% steps to eliminate room temperature swings.
- High seasonal efficiency — rated up to 20.5 SEER and 10.5 HSPF when paired with an approved Bosch BVA air handler or cased coil.
- Whisper-quiet outdoor sound — silent blade fan technology and sound-dampening compressor blankets keep sound levels as low as 56 dB(A).
- Wide operating temperature range — delivers reliable cooling up to 52 °C (125 °F) and heating down to −15 °C (5 °F).
- Universal 24V thermostat compatibility — works with standard two-stage heat pump thermostats (such as Ecobee or Google Nest) without requiring proprietary communicating wall controls.
- Compact cube footprint — top-discharge design with a small 740 × 740 mm footprint easily fits standard equipment pads and side yards.
Choosing your capacity
Bosch IDS inverter systems do not require separate half-ton outdoor units (such as 2.5 or 3.5 ton). Because the inverter compressor continuously modulates to match the load, the 3-Ton unit (BOVA-36) is field-switchable between 2.0 and 3.0 Ton, while the 5-Ton unit (BOVA-60) is field-switchable between 4.0 and 5.0 Ton via onboard DIP switches, seamlessly adapting to your home's ductwork and calculated heating/cooling load.
System pairings
Both outdoor condensing units pair with a matching Bosch BVA air handler for all-electric setups, or with a Bosch BMAC cased evaporator coil over an existing gas furnace for a dual-fuel hybrid system.
Specifications
General
| Model number | BOVA-36HDN1-M20G (3.0 Ton) / BOVA-60HDN1-M20G (5.0 Ton) |
|---|---|
| SKU | BOVA-36HDN1-M20G, BOVA-60HDN1-M20G |
| Brand | Bosch Home Comfort |
| Series | Inverter Ducted Split (IDS) Premium 2.0 |
| Product type | Central ducted split-system heat pump condenser |
| Application | Residential ducted heating and cooling |
| Compressor type | Inverter rotary, fully modulating (25–110%) |
Performance
| Specification | 3.0 Ton (BOVA-36HDN1-M20G) | 5.0 Ton (BOVA-60HDN1-M20G) |
|---|---|---|
| Nominal capacity | 3.0 Ton (covers 2.0–3.0 Ton) | 5.0 Ton (covers 4.0–5.0 Ton) |
| Cooling capacity range | 12,000–36,000 BTU/h | 18,000–60,000 BTU/h |
| Heating capacity range | 12,000–36,000 BTU/h | 18,000–60,000 BTU/h |
| Efficiency rating (SEER) | Up to 20.5 SEER | Up to 20.0 SEER |
| Heating seasonal factor (HSPF) | Up to 10.5 HSPF | Up to 10.5 HSPF |
| Outdoor sound level | 56–59 dB(A) | 59–62 dB(A) |
Electrical
| Specification | BOVA-36HDN1-M20G | BOVA-60HDN1-M20G |
|---|---|---|
| Voltage / frequency / phase | 208/230 V, 60 Hz, 1-Phase | 208/230 V, 60 Hz, 1-Phase |
| Minimum circuit ampacity (MCA) | 24.3 A | 33.7 A |
| Maximum overcurrent protection (MOP) | 35 A breaker | 50 A breaker |
| Control voltage | 24 V AC (standard thermostat wiring) | 24 V AC (standard thermostat wiring) |
Refrigerant and line set
| Specification | BOVA-36HDN1-M20G | BOVA-60HDN1-M20G |
|---|---|---|
| Refrigerant type | R-410A (pre-charged for 4.6 m / 15 ft) | R-410A (pre-charged for 4.6 m / 15 ft) |
| Liquid line connection | 9.5 mm (3/8 in) sweat | 9.5 mm (3/8 in) sweat |
| Suction line connection | 19.05 mm (3/4 in) sweat | 22.2 mm (7/8 in) sweat |
| Maximum line set length | 30.5 m (100 ft) | 30.5 m (100 ft) |
| Maximum vertical lift | 15.2 m (50 ft) | 15.2 m (50 ft) |
Dimensions and weight
| Specification | BOVA-36HDN1-M20G | BOVA-60HDN1-M20G |
|---|---|---|
| Dimensions (W × D × H) | 740 × 740 × 633 mm (29.13 × 29.13 × 24.92 in) | 740 × 740 × 843 mm (29.13 × 29.13 × 33.19 in) |
| Net unit weight | 70.3 kg (155 lb) | 94.3 kg (208 lb) |
| Gross shipping weight | 79.8 kg (176 lb) | 104.8 kg (231 lb) |
Certifications
| Listings | AHRI Certified, UL 1995 listed, ENERGY STAR® certified |
|---|
Before you buy
- This outdoor heat pump condenser requires a matching indoor air handler (such as the Bosch BVA series) or an approved cased evaporator coil paired with a compatible furnace.
- Electrical supply: The 3.0 Ton model requires a 35 A breaker; the 5.0 Ton model requires a 50 A breaker on a dedicated 208/230 V single-phase circuit with an outdoor disconnect switch.
- Ensure adequate airflow clearance: maintain at least 30 cm (12 in) on the coil sides, 61 cm (24 in) on the service panel side, and 152 cm (60 in) above the top discharge fan.
- In cold-climate regions where winter temperatures fall below −15 °C (5 °F), an auxiliary electric heat strip kit or backup gas furnace is required for peak heating demand.
- Bosch specifies that installation and refrigerant piping must be performed by a qualified HVAC technician in compliance with local mechanical and electrical codes.
Request a quote and we will confirm the right configuration, pricing and availability.
Frequently asked questions
Can the Bosch IDS be paired with standard non-communicating 24 V thermostats?
Yes. Unlike proprietary communicating heat pumps, the Bosch IDS inverter logic is self-contained within the outdoor unit, allowing it to modulate seamlessly with any standard 24 V thermostat (including ecobee, Google Nest, or Honeywell).
What refrigerant lineset sizes are required for the 3-ton system?
The system requires a 3/8-inch liquid line and a 3/4-inch suction line, pre-charged with R-410A refrigerant for up to 15 feet of lineset length.

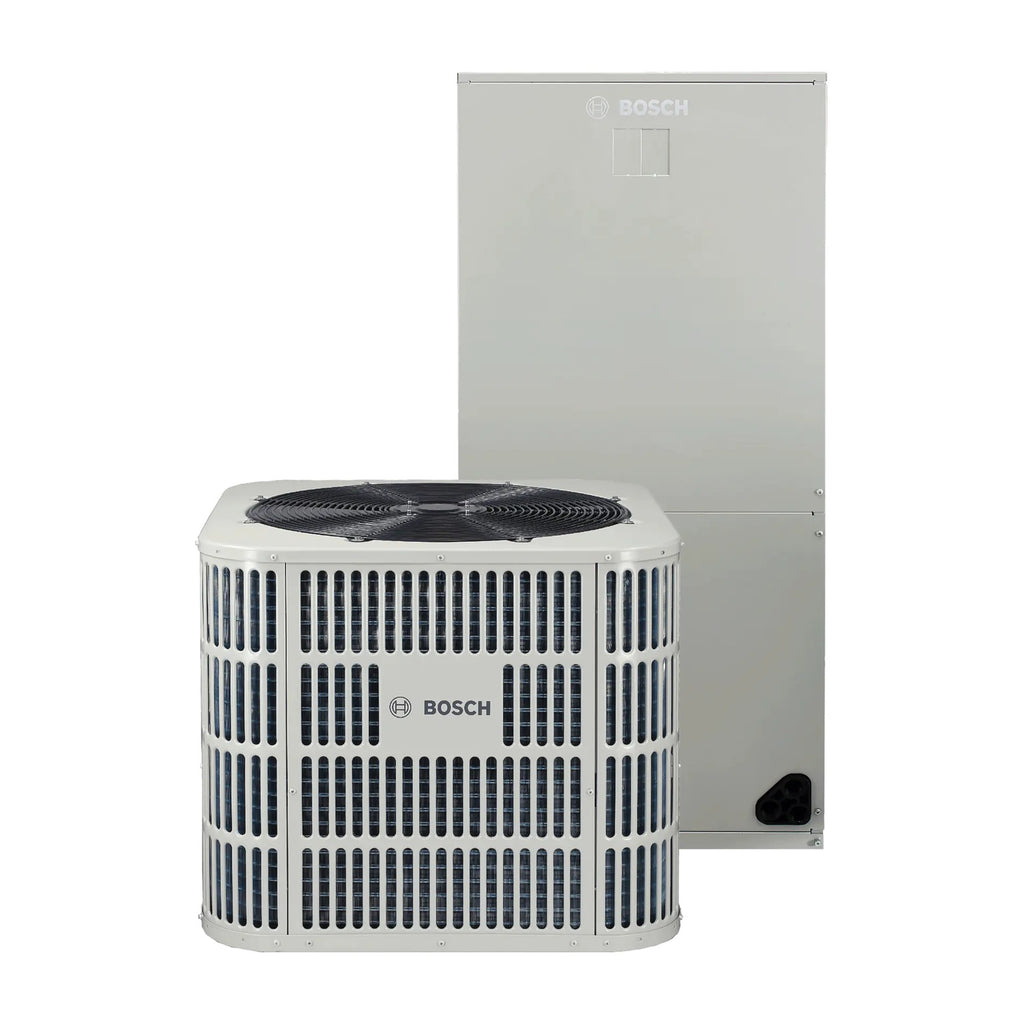

Does the indoor air handler (BVA) support multi-position installation?
Yes. The BVA multi-position air handler can be configured for upflow, downflow, horizontal left, or horizontal right airflow orientations to match basement and attic duct transitions.
Can auxiliary electric heat strips be installed for emergency backup?
Yes. Optional 5 kW to 20 kW electric resistance heat strip kits can be installed directly into the BVA cabinet to provide emergency backup heating during extreme Canadian winter cold snaps.
What filter size does the BVA air handler use?
The air handler features an integrated slide-in filter rack that accommodates standard 1-inch or high-efficiency 4-inch deep pleated media air filters.
What clearance is required around the outdoor condenser in winter?
Elevate the outdoor condensing unit at least 12 to 18 inches (300 to 450 mm) above the ground on a sturdy equipment stand or wall bracket to keep the coil clear of Ontario snow drifts and ice accumulation.
Documents
- Installation and operation manual — IDS Premium condensing unit (English) (PDF)
- Installation and operation manual — IDS Premium air handler (English) (PDF)
- Installation and operation manual — BOVA20 / BOVC20 heat pump condenser (PDF)
- Service manual — Bosch IDS 2.0 BOVA-BVA systems (PDF)
- Manuel d'installation et d'utilisation — Bosch IDS 2.0 BOVA (Français) (PDF)
- Energy Guide — Bosch BOVA-36HDN1-M20G system ratings (PDF)
Specifications from the Bosch Inverter Ducted Split (IDS) 2.0 product catalog, BOVA20 installation and operation manual, and AHRI matched ratings. Specifications are subject to change by the manufacturer. View the Bosch IDS Premium condenser manual (PDF).
Installation & Safety Notice: Inverter heat pump systems require professional sizing and installation by a licensed refrigeration/HVAC technician and qualified electrician in compliance with manufacturer engineering specifications and provincial electrical/building codes.
