A full-inverter variable-speed swimming pool heat pump engineered with twin-rotary DC compression and spiral titanium heat exchange for ultra-quiet seasonal heating. The Moov Inverter series continuously regulates compressor and fan speed between 20% and 100% capacity to maintain steady water temperatures while cutting energy draw compared to traditional on/off heaters. Featuring soft-starter power electronics, side or top air discharge configurations, and high part-load efficiency, Moov provides reliable, whisper-quiet heating across Canada's swimming season.
Technical specifications
| Heating Type | Heat Pump |
|---|---|
| Warranty | Labor Warranty 3 years Parts Warranty 5 years Heat Exchanger Warranty 10 years Source: Moov warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
Key features
- Full-inverter modulation — intelligent DC inverter driver adjusts motor and compressor output dynamically between 20% and 100% capacity, matching real-time pool heat loss with optimal power usage.
- High average COP performance — delivers a seasonal coefficient of performance (COP) up to 8.0, reducing annual electricity consumption compared to fixed-speed heat pumps.
- Spiral twisted titanium heat exchanger — corrugated spiral titanium tube expands surface area by 30% for rapid heat transfer and total immunity against chlorine and salt corrosion.
- Soft-start current protection — starts from 0 A and ramps smoothly to operating current, eliminating electrical surges and voltage drops on residential panels.
- Whisper-quiet acoustic design — sound-dampened inverter compressor and variable-speed fan blades achieve sound levels as low as 48 dB(A) at 1 m in low-speed maintenance mode.
- Lockable digital touch control — front-mounted digital display provides precise temperature selection with screen lock functionality and diagnostic status monitoring.
Specifications
| Manufacturer | Moov Pool Products |
|---|---|
| Series | Moov Full-Inverter |
| Equipment type | Variable-speed air-source pool heat pump |
| Available models | MI500 (50K) / MI650 (66K) / MI900 (90K) / MI1100 (110K) / MI1400 (140K) BTU/h |
| Maximum pool volume (MI500) | Up to 52,000 L (14,000 US gal) |
| Maximum pool volume (MI650) | Up to 68,000 L (18,000 US gal) |
| Maximum pool volume (MI900) | Up to 105,000 L (28,000 US gal) |
| Maximum pool volume (MI1100) | Up to 120,000 L (32,000 US gal) |
| Maximum pool volume (MI1400) | Up to 160,000 L (42,000 US gal) |
| Coefficient of performance (COP) | Up to 8.0 (at 27 °C air / 26 °C water / 80% humidity) |
| Compressor technology | DC Twin-Rotary variable-speed inverter compressor |
| Heat exchanger | Spiral twisted pure titanium tube in rigid PVC shell |

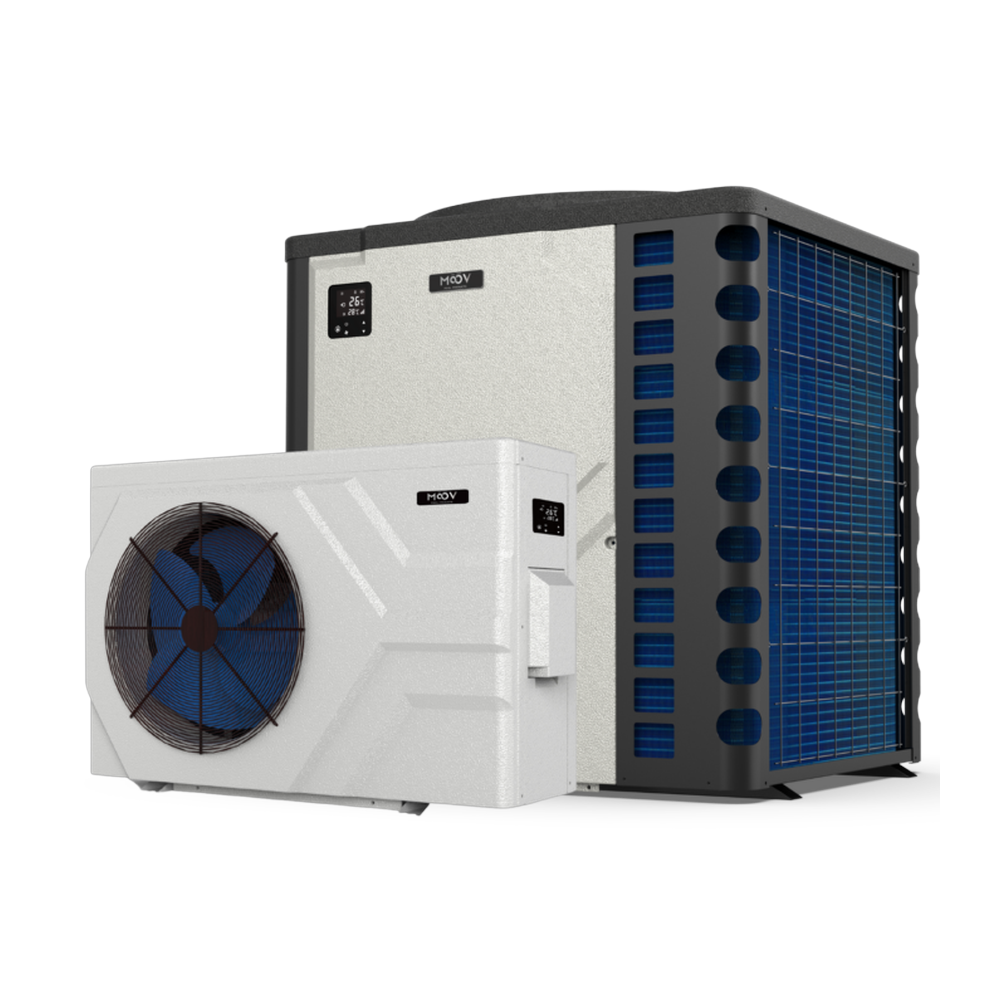

| Air discharge type (MI500–MI900) | Horizontal side-discharge fan with protective front grille |
| Air discharge type (MI1100–MI1400) | Vertical top-discharge fan with top safety grille |
| Operating air temperature range | 0 °C to 43 °C (32 °F to 110 °F) |
| Sound level (low speed) | 48 to 52 dB(A) at 1 m depending on capacity tier |
| Plumbing connections | 1-1/2 in. / 2 in. quick-connect PVC unions included |
| Recommended water flow (MI500–MI900) | 20 to 50 GPM (76 to 189 L/min) |
| Recommended water flow (MI1100–MI1400) | 35 to 70 GPM (132 to 265 L/min) |
| Power supply | 208/240 V AC, single phase, 60 Hz |
| Casing construction | Weatherproof aluminum alloy and structural ABS composite |
| Condensate management | Integrated base drain pan with attachable drain nozzle |
| Certifications | cETLus certified to CSA C22.2 and UL standards |
Before you buy
- Dedicated 240 V electrical service with an external disconnect switch must be installed by a licensed electrician according to the Canadian Electrical Code (CSA C22.1).
- Side-discharge models (MI500, MI650, MI900) require at least 50 cm (20 in.) clearance on intake faces and 150 cm (59 in.) in front of the fan exhaust.
- Top-discharge models (MI1100, MI1400) require at least 244 cm (8 ft) of unobstructed overhead clearance above the fan discharge.
- Install the heat pump outdoors on a level concrete pad or composite equipment base with clear drainage for natural condensation.
- Before freezing temperatures occur in late autumn, disconnect plumbing unions and drain all residual water completely from the heat exchanger canister to prevent freeze damage.
Have questions about electrical service capacity or volume matching? Contact our technical support team for assistance.
Frequently asked questions
What size plumbing pipes does the heat exchanger accept?
The unit includes standard 1.5-inch or 2-inch quick-connect plumbing unions for solvent cementing into standard Schedule 40 PVC pool return lines.
Can the unit also cool pool water during mid-summer heatwaves?
Yes. The reversible refrigeration circuit provides both heating and cooling modes, allowing owners to cool warm pool water down to comfortable swimming temperatures during extreme summer heat.
How should the unit be prepped for Canadian winter temperatures?
Turn off the electrical breaker, loosen the inlet and outlet union collars, remove the drain valve plug to empty the titanium drum, blow dry with air, and wrap with a winter weather cover.
Documents
- Instruction and operation manual — Moov Inverter pool heat pump (English and French) (PDF)

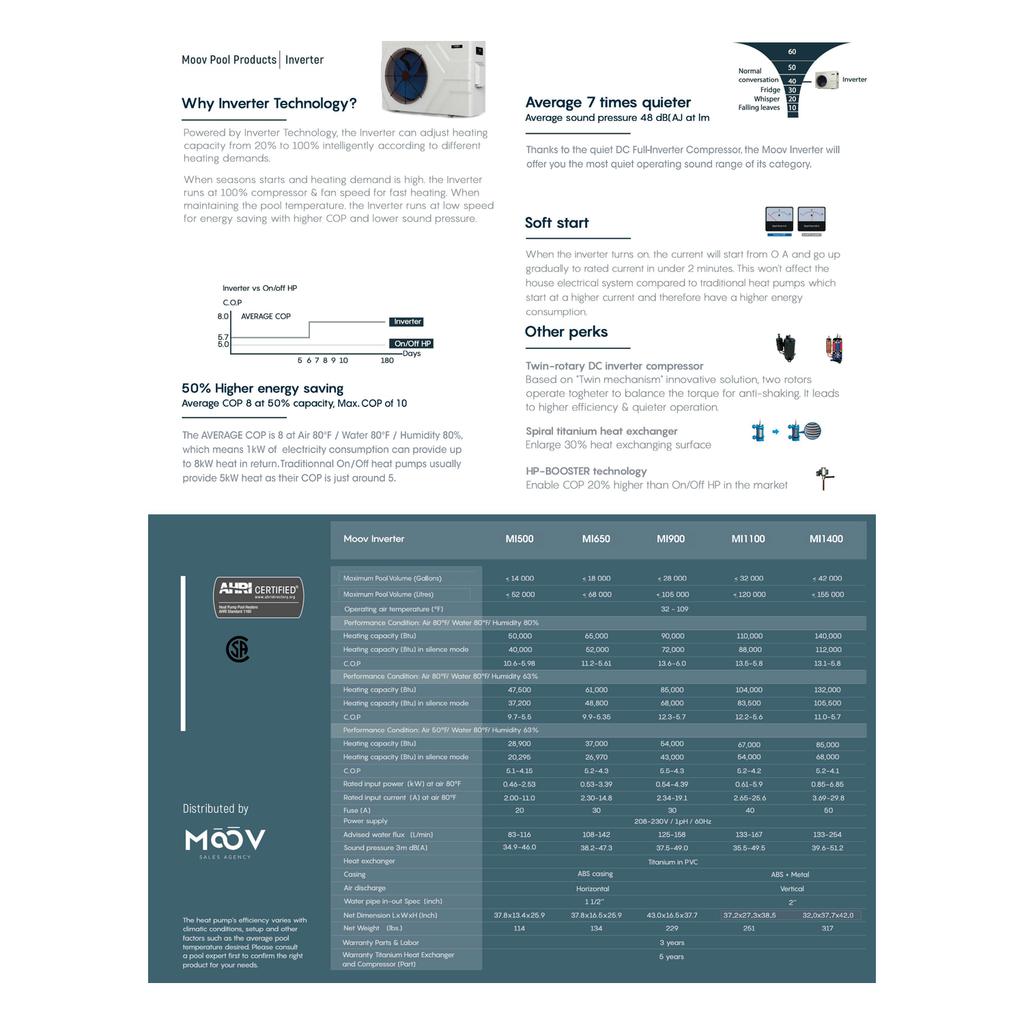

- Technical brochure and specifications — Moov Inverter series (2023) (PDF)

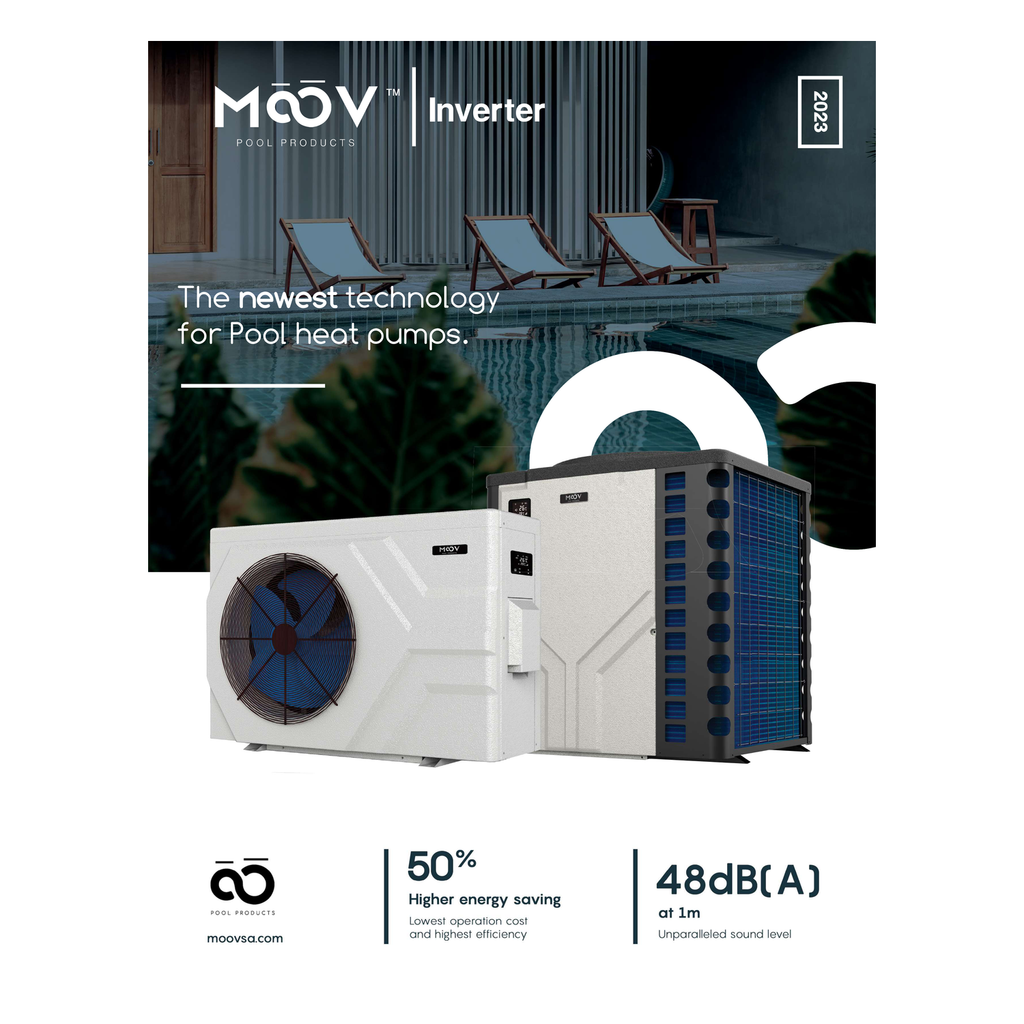

- Product brochure — Moov Inverter heat pump (PDF)
Specifications compiled from Moov Full-Inverter Heat Pump Instruction Manual (EN/FR) and Moov Inverter 2023 Technical Brochure. All performance ratings subject to verification by manufacturer engineering documentation. View the Moov Inverter manual (PDF).
