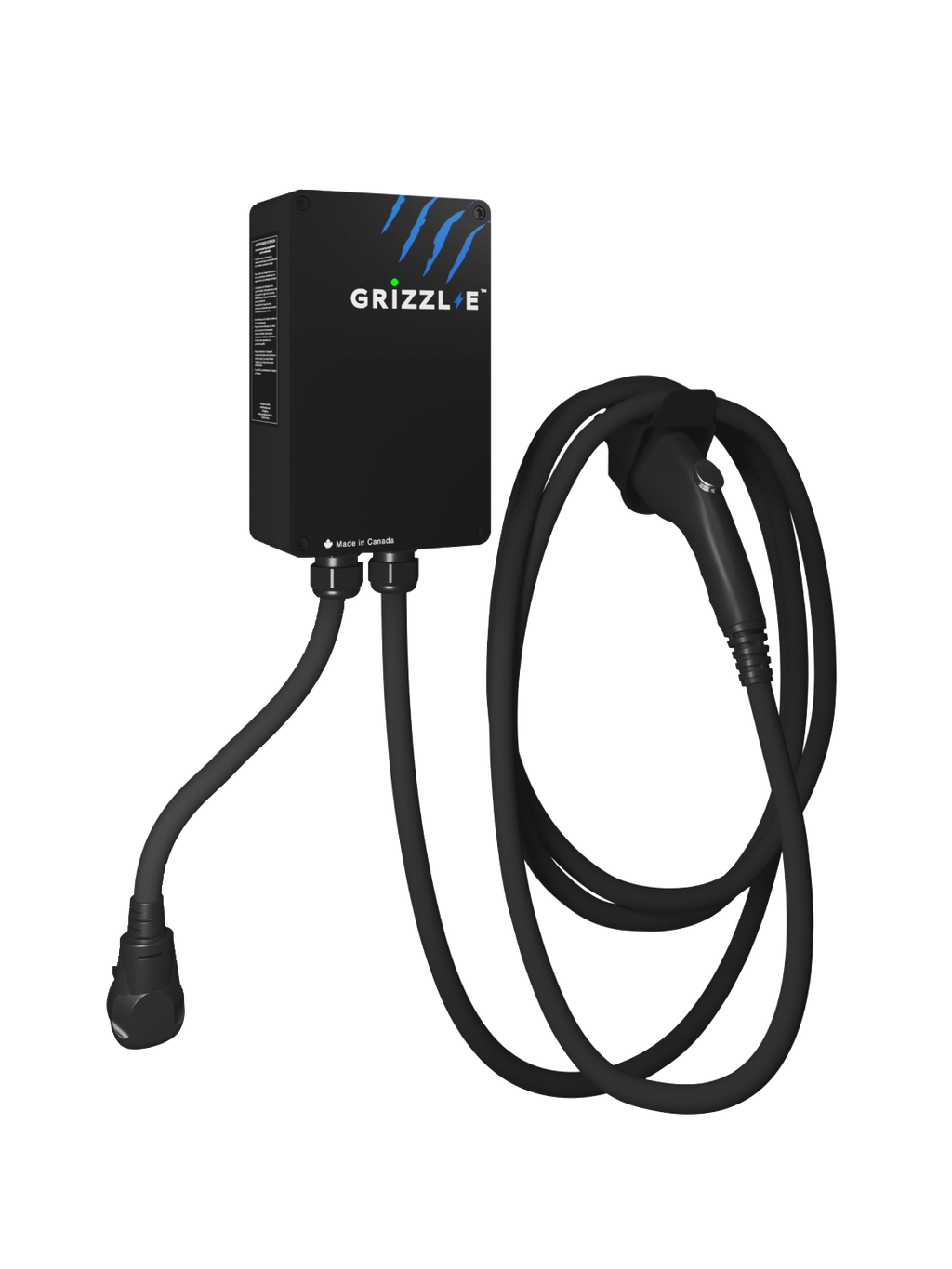

A rugged 40 A plug-in Level 2 EV charger with Wi-Fi, from Canadian maker United Chargers. The Grizzl-E Classic Connect is the next generation of the Grizzl-E Classic: the same heavy-duty enclosure with updated electronics and Wi-Fi control. It delivers up to 9.6 kW through a 7.6 m (25 ft) cable, plugs into a NEMA 14-50 outlet, and is rated for indoor or outdoor use from −30 °C to 50 °C.
Technical specifications
| Warranty | Grizzl-E Level 2 EVSE products are covered by either a 3-year or 5-year replacement warranty. The Warranty begins on the date of purchase and covers all defects in materials and workmanship during the period specified in the warranty. The warranty for the charging cable is 1 year. Source: Grizzl-E warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- 40 A / 9.6 kW Level 2 charging — United Chargers estimates a full charge in about 7.5 hours overnight; actual time depends on the vehicle and battery level.
- J1772 or NACS cable — choose the SAE J1772 connector for most EVs or the NACS connector for Tesla and other NACS-port vehicles.
- Grizzl-E Connect app over Wi-Fi — view charging statistics, set a schedule, enter electricity rates, control charging remotely and take part in utility demand-response programs.
- Adjustable to your circuit — set 40, 32, 24 or 16 A with an internal DIP switch to suit a 50, 40, 30 or 20 A circuit.
- Plug in or hardwire — ships with a NEMA 14-50 plug; an electrician can hardwire it instead.
- Weatherproof UL Type 4 enclosure — built-in GFCI protection and automatic restart after temporary faults.
In the box
- Grizzl-E Classic Connect charger with NEMA 14-50 input cable and 7.6 m (25 ft) charging cable
- Heavy-Duty EasyEvPlug holster with screws and anchors
- Mounting kit: two-piece mounting bracket, screws, hex key tool and security pin

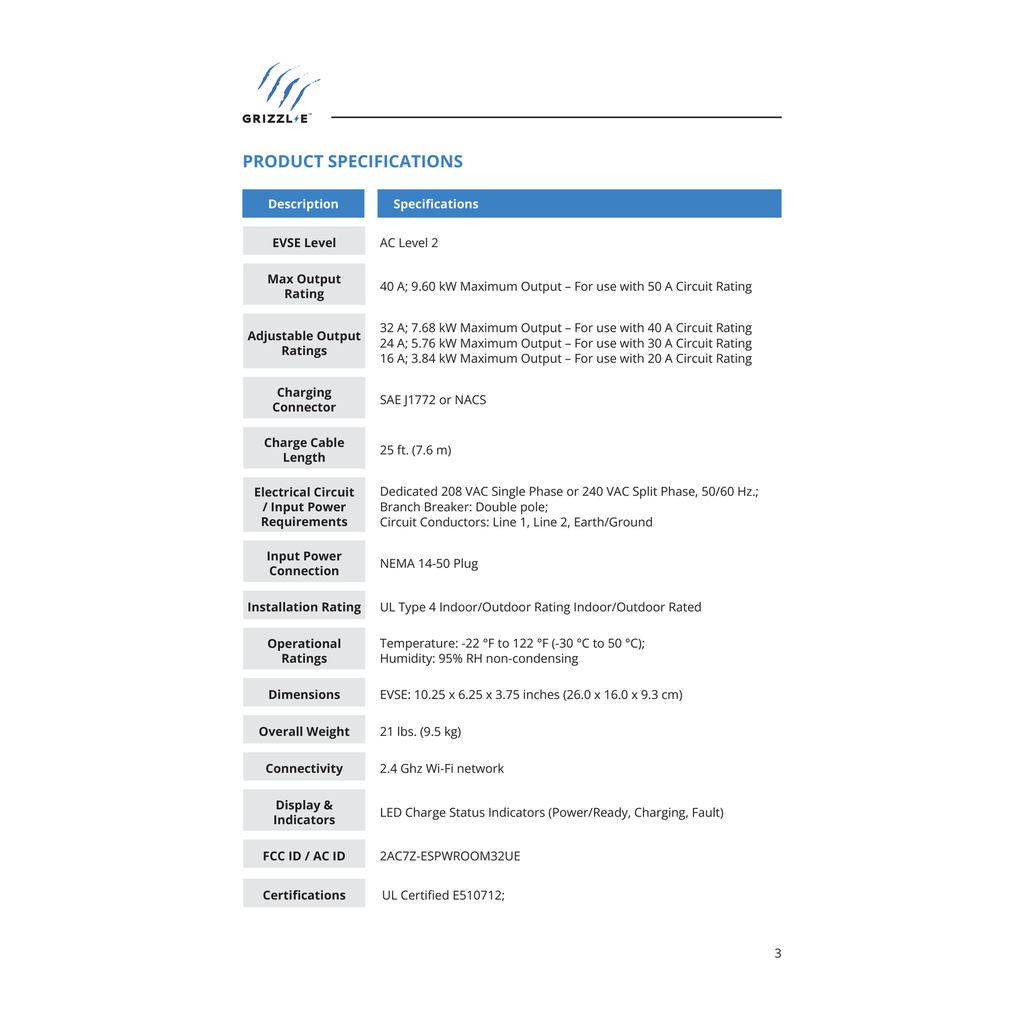

Specifications
General
| Brand | Grizzl-E (United Chargers) |
|---|---|
| Model | GRS-077-W-14-25J40-A-GB (NEMA 14-50) / GRS-077-W-14-25N40-A-GB (NEMA 6-50) |
| Model numbers | GRS-077-W-14-25J40-A-GB (J1772, black); GRS-077-W-14-25J40-A-GW (J1772, white); GRS-077-W-14-25N40-A-GB (NACS, black); GRS-077-W-14-25N40-A-GW (NACS, white) |
| Product type | AC Level 2 plug-in EV charger (EVSE) |
Performance
| Maximum output | 40 A, 9.6 kW on a 50 A circuit |
|---|---|
| Adjustable output | 32 A (7.68 kW), 24 A (5.76 kW) or 16 A (3.84 kW) for 40 A, 30 A or 20 A circuits |
| Charging connector | SAE J1772 or NACS (choose at order) |
| Charging cable length | 7.6 m (25 ft) |
Electrical
| Input power | Dedicated 208 V AC single-phase or 240 V AC split-phase, 50/60 Hz |
|---|---|
| Input connection | NEMA 14-50 plug; optional hardwire connection |
| Branch breaker | Double-pole, 20–50 A, matched to the output setting |
| Hardwire conductors | 6–8 AWG copper, 75 °C rated (10 AWG ground) |
| Protection | Built-in GFCI; monitoring for lost ground, over- and under-voltage, over-current and high temperature |
| Fault recovery | Automatic restart after temporary faults |
Connectivity
| Wi-Fi | 2.4 GHz |
|---|---|
| App | Grizzl-E Connect: scheduling, electricity rates, charging history and monitoring |
| Protocol | OCPP Wi-Fi connected charger |
| Indicators | Multi-colour LED status light and fault buzzer |
Environment and enclosure
| Operating temperature | −30 °C to 50 °C (−22 °F to 122 °F) |
|---|---|
| Operating humidity | Up to 95% RH, non-condensing |
| Storage temperature | −30 °C to 70 °C (−22 °F to 158 °F) |
| Enclosure rating | UL Type 4, indoor/outdoor |
Dimensions and mounting
| Charger enclosure | 26.0 × 16.0 × 9.3 cm (10.25 × 6.25 × 3.75 in) |
|---|---|
| Overall weight | 9.5 kg (21 lb) |
| Holster height | Between 0.45 m (18 in) and 1.2 m (48 in) above grade |
Certifications
| Safety | UL certified, file E510712 (UL/cUL) |
|---|---|
| Radio | FCC ID 2AC7Z-ESPWROOM32UE |
Before you buy
- For the full 40 A output you need a NEMA 14-50 receptacle on a dedicated 50 A double-pole circuit. Lower settings work on 40, 30 or 20 A circuits.
- Ask your local electrical inspection authority whether a plug-in charger is accepted at your location. If not, the charger can be hardwired by a licensed electrician.
- United Chargers says additional GFCI protection is not required. Where code requires GFCI at the outlet, use a 20 mA GFCI breaker; a 5 mA breaker may interrupt charging.
- Mount the charger on a wood stud or solid concrete wall, not directly on drywall or stucco. Check the NEMA 14-50 receptacle torque at least once a month.
- App features need a 2.4 GHz Wi-Fi network that reaches the charger.
Need help choosing the right connector or planning installation? Request a product quote or see the manufacturer documents below.
Frequently asked questions
Where is the Grizzl-E Classic Level 2 EV charger manufactured?
The Grizzl-E Classic is engineered and manufactured in Canada by United Chargers, specifically built to endure harsh Canadian winter weather conditions down to -30 °C (-22 °F).
What is the maximum charging output of the Grizzl-E Classic?
The charger delivers up to 40 A continuous output (9.6 kW at 240 V), providing up to 48 kilometers (30 miles) of vehicle range per hour of charging.
What type of enclosure does the Grizzl-E Classic use?
The unit is housed in a heavy-duty NEMA 4 cast aluminum enclosure that is completely waterproof, fire-resistant, and impact-resistant against snow, ice, and road salt.
Can the maximum charging current be adjusted for smaller breakers?
Yes. Internal physical DIP switches allow output current adjustment between 16 A (20 A breaker), 24 A (30 A breaker), 32 A (40 A breaker), and 40 A (50 A breaker).
What connector type is fitted on the cable?
The charger includes a standard SAE J1772 connector compatible with all North American EVs and plug-in hybrids (and compatible with Tesla vehicles using a standard Tesla-to-J1772 adapter).
What cable length is included?
The unit includes a 24-foot heavy-duty flexible charging cable engineered to remain pliable in sub-zero winter temperatures down to -40 °C.
What plug options are available for installation?
The Grizzl-E Classic is available with a factory-attached NEMA 14-50 plug or NEMA 6-50 plug, or can be hardwired directly into a junction box by a licensed electrician.
Does the charger require Wi-Fi connectivity to operate?
The Classic model is a plug-and-play non-networked charger, ensuring continuous charging reliability with zero dependency on Wi-Fi signals or cloud servers.
What safety certifications does Grizzl-E hold in Canada?
The Grizzl-E Classic is UL-certified and CSA-certified with built-in GFCI 20 mA ground fault protection with auto-recovery.
What mounting hardware is provided?
The charger includes a quick-release aluminum wall mounting bracket with a security lock and key, an easy-evse cable holster, and mounting anchors.
Documents

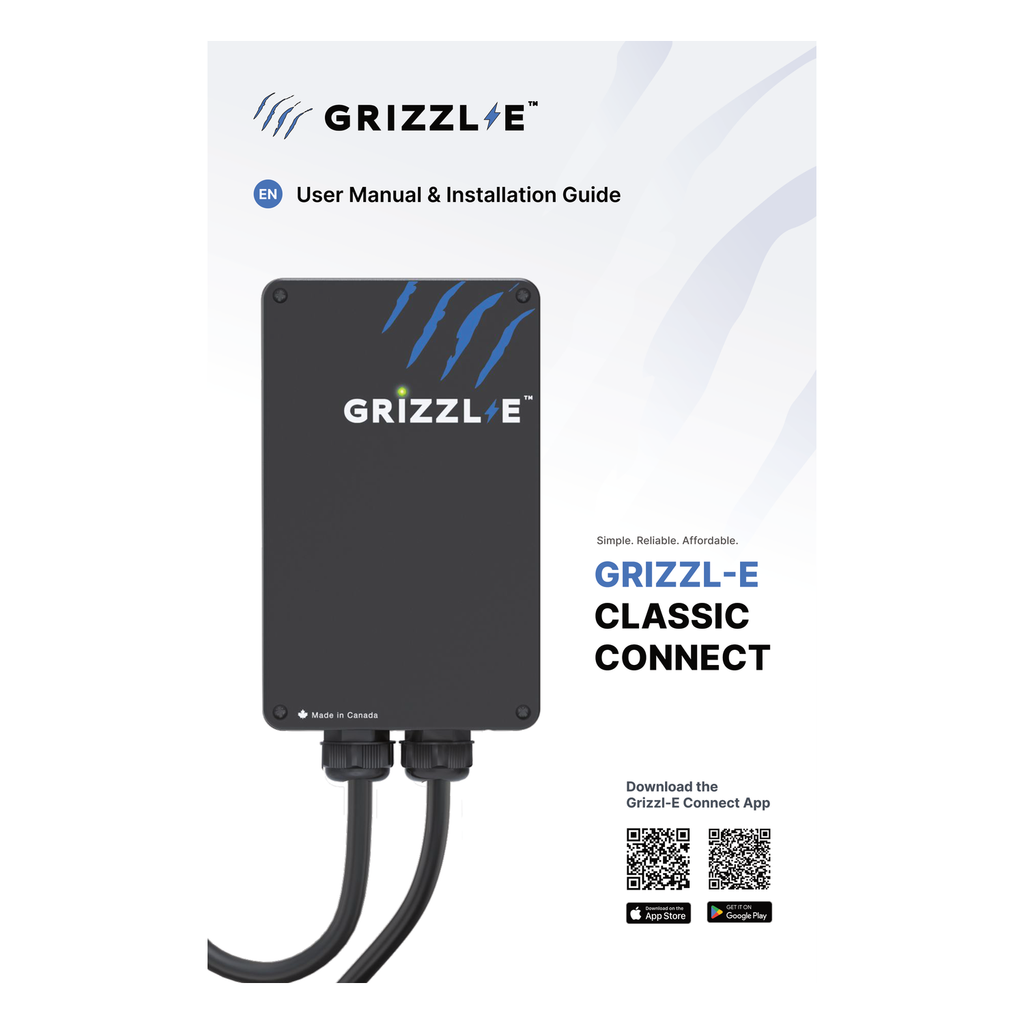

- User manual & installation guide — Grizzl-E Classic Connect 40A (English, rev. 1.2) (PDF)
- Manuel d'utilisation et guide d'installation — Grizzl-E Classic Connect 40A (French, rev. 1.2) (PDF)
- Grizzl-E Connect app user guide (English) (PDF)
- Grizzl-E Connect app user guide (French) (PDF)
Specifications from United Chargers' Grizzl-E Classic Connect 40A User Manual & Installation Guide (revision 1.2, January 22, 2026) and the Grizzl-E Canada product page. Specifications are subject to change by the manufacturer. View the Grizzl-E Classic Connect manual (PDF).
