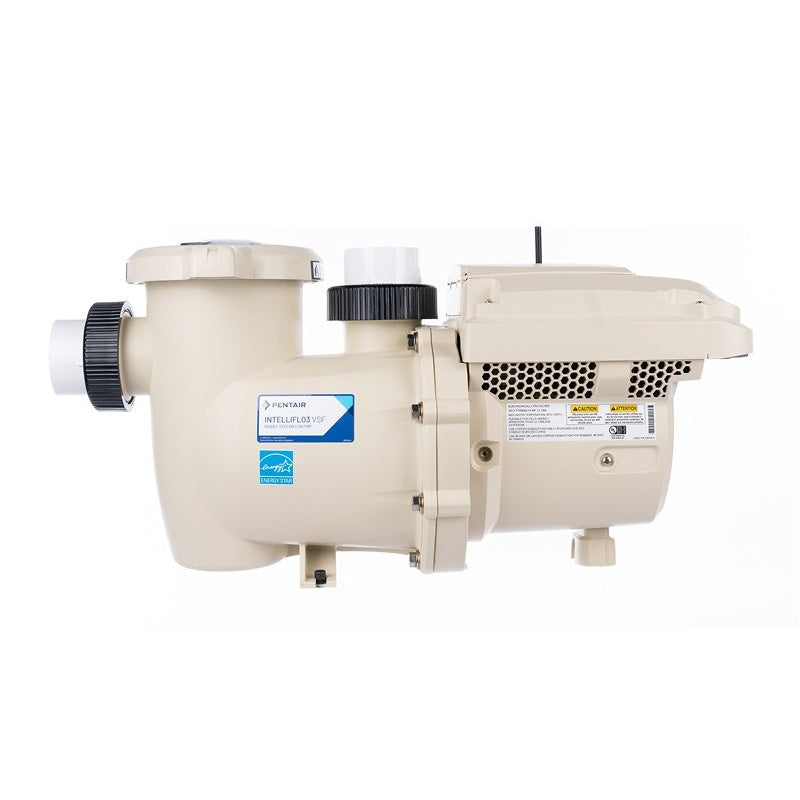

A 3.0 HP variable speed and flow pool pump that holds the flow rate you set. The Pentair IntelliFlo3® VSF 3.0 HP (model 011075) is a variable-speed pool pump for larger inground pools and systems with spa jets, water features or in-floor cleaning across Ontario residential pools. Optimized for Ontario Time-of-Use hydro savings. Set a flow target between 20 and 140 US gpm and the pump adjusts its own speed to keep it as the filter loads up, or run it at a fixed percentage of speed. Wi-Fi and Bluetooth connect it to the Pentair Pool app.
Technical specifications
| Warranty | IntelliFlo3® VSF Pool Pump and IntelliPro3® VSF Pool Pump 3 YEARS Standard Warranty – 1 Year Minimum Inground products purchased from a retail store (brick & mortar), pool builder, or pool service company receive a minimum of one-year parts and labor warranty when professionally installed. Source: Pentair warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Speed or constant-flow programs — up to 8 programs in Manual, Timer or Schedule mode; flow programs from 20 to 140 US gpm (about 4.5–31.8 m³/h).
- Efficient permanent-magnet motor — totally enclosed, fan-cooled motor from 450 to 3,450 RPM, with a weighted energy factor (WEF) of 7.1 at 3.0 THP. ENERGY STAR certified.
- App control over Wi-Fi and Bluetooth — schedule, adjust and monitor the pump from the Pentair Pool app; an optional drive-mounted touchscreen adds local control at the equipment pad.
- Works with automation — RS-485 connection to Pentair automation systems. The optional Relay Control Board Kit adds two relays for lights, a salt chlorine generator or a booster pump, plus four digital speed inputs.
- Smart priming and protection — programmable priming with automatic prime detection, loss-of-prime detection and dry start-up detection.
- Built for outdoor equipment pads — NEMA Type 3 / IPX5 drive enclosure, rated to operate from 0 to 50 °C.
Specifications
| Model | Pentair 011075 — IntelliFlo3® VSF 3.0 HP (011076: same pump with I/O relay board) |
|---|---|
| Performance | |
| Total horsepower (THP) | 3.0 |
| Maximum shaft horsepower | 3.0 HP |
| Weighted energy factor (WEF) | 7.1 |
| Motor speed range | 450–3,450 RPM |
| Flow program range | 20–140 US gpm (about 4.5–31.8 m³/h) |
| Programs | Up to 8, set by speed or constant flow; Manual, Timer or Schedule mode |
| Motor | Permanent-magnet, totally enclosed fan-cooled (TEFC) |
| Electrical | |
| Input voltage | 208–230 V AC, single-phase (L1-L2 or L-N) |
| Full-load current | 12.4–11.2 A |
| Frequency | 50/60 Hz |
| Maximum input power | 2,590 W |
| Circuit protection | GFCI protection required; own dedicated circuit |
| Controls & connectivity | |
| Wireless | Wi-Fi and Bluetooth®; Pentair Pool app |
| Automation | RS-485 connection to Pentair automation systems |
| Protection features | Dry start-up detection, loss-of-prime detection, smart priming control |
| Optional accessories | Drive-mounted touchscreen (356159Z almond / 356348Z black); Relay Control Board Kit (356365Z) with two relays (5 A and 16 A max) and four digital speed inputs |
| Plumbing | |
| Port size (NPT) | 2 × 2 in, 2.5 × 2.5 in or 3 × 3 in |
| Union kit | Included for 2 in / 2.5 in pipe (410028); 3 in union kit 410029 sold separately |
| Environment | |
| Enclosure rating | NEMA Type 3 / IPX5 |
| Operating temperature | 0–50 °C (32–122 °F) |
| Storage temperature | −40 to 60 °C (−40 to 140 °F) |
| Humidity | 0–95% relative, non-condensing |
| Dimensions & weight | |
| Overall length | 660 mm (26.0 in) |
| Weight | 25 kg (55 lb) |
| Certifications & compliance | |
| Listings (Pentair spec table) | UL, NSF/ANSI 50 |
| ENERGY STAR | Certified (Pentair product page) |
Before you buy
- The 3.0 HP model runs on 208–230 V only and needs its own GFCI-protected circuit. Pentair specifies installation by a qualified service professional under the electrical code and local rules.
- Canadian installations: Pentair requires the pump to be at least 3 m (9.8 ft) from the inside wall of the pool, and a solid copper bonding conductor of 6 AWG or larger.

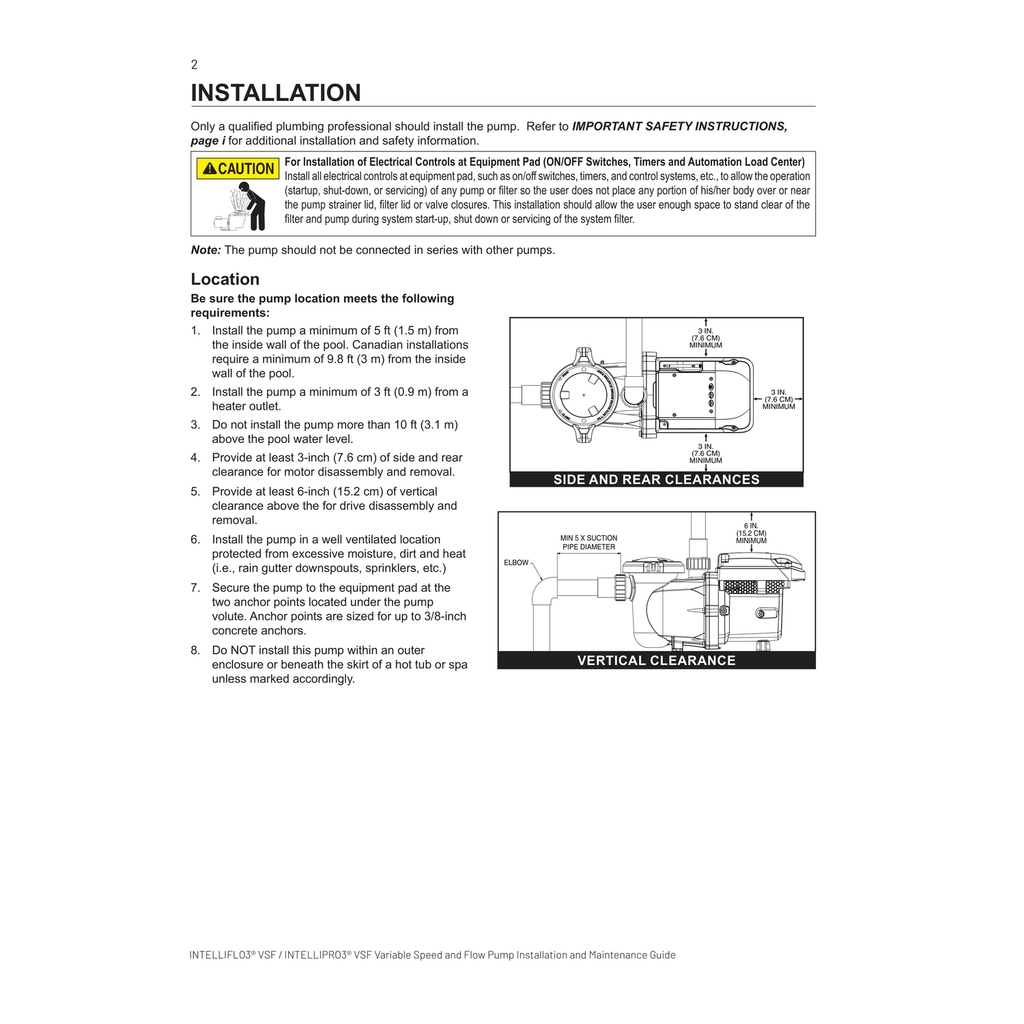

- Leave at least 7.6 cm (3 in) of side and rear clearance and 15.2 cm (6 in) above the drive for service. Do not mount the pump more than 3.1 m (10 ft) above the pool water level, and keep it at least 0.9 m (3 ft) from a heater outlet.
- Keep a straight suction run of at least five pipe diameters before the pump inlet (for example 25.4 cm / 10 in on 2 in pipe), with no elbow directly on the inlet or outlet.
- The included union kit fits 2 in and 2.5 in pipe. For 3 in plumbing, order Pentair union kit 410029 separately.
- A 3.0 HP pump suits larger pools and higher-demand systems. Confirm pump size against your pool volume, plumbing and filter before ordering.
Questions about pump sizing, plumbing connections or automation compatibility? Request a product quote or see the manufacturer documents below.
Frequently asked questions
What is the capacity of the strainer basket?
The pump features an extra-large strainer basket with an easy-open cam and ramp transparent lid that holds substantial debris before requiring manual cleanout.
How should the IntelliFlo3 be prepared for Canadian winter?
Turn off the electrical breaker. Remove the two thumb drain plugs at the bottom of the wet end, remove the strainer lid and basket, drain all water from the pump volute, and store the plugs inside the basket for spring startup.
Documents

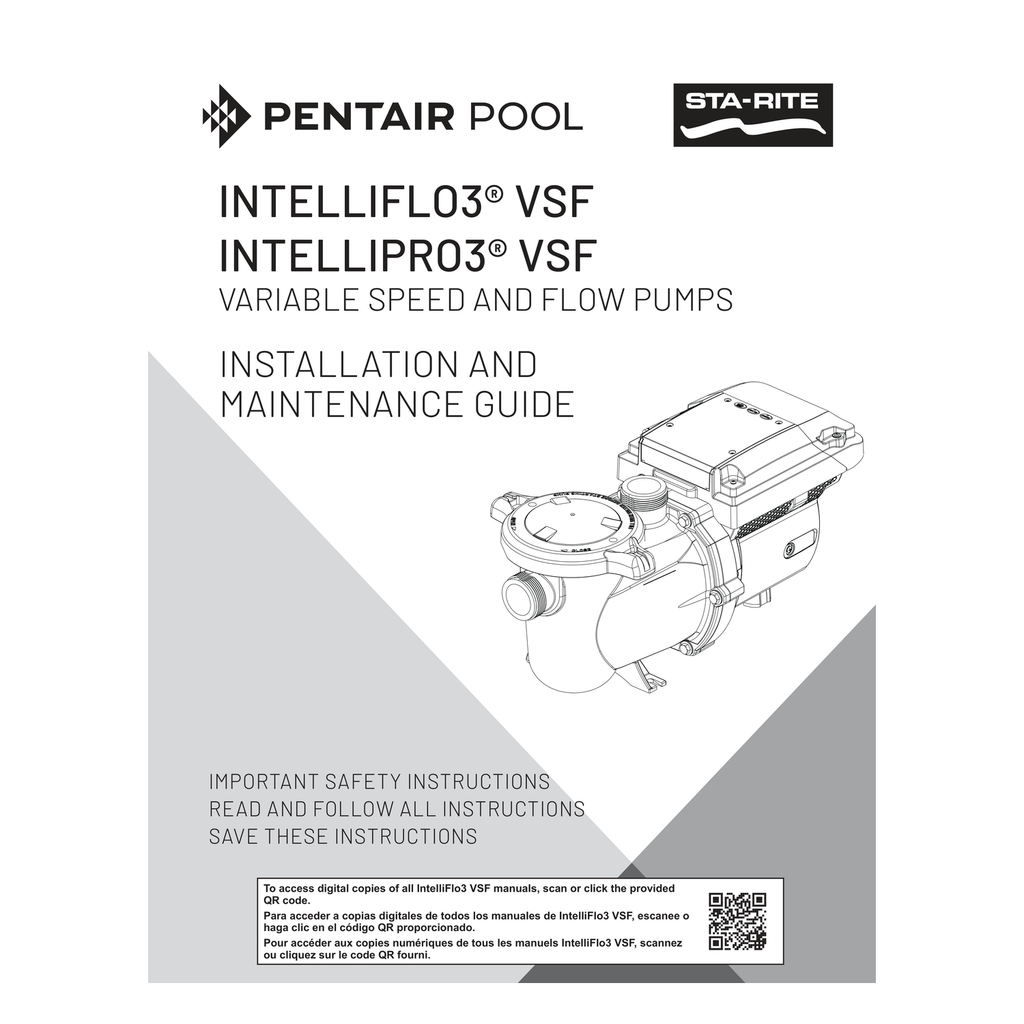

- Installation and maintenance guide — IntelliFlo3 VSF / IntelliPro3 VSF (English) (PDF)
- Installation and maintenance guide — IntelliFlo3 VSF / IntelliPro3 VSF (French) (PDF)
- User's guide — IntelliFlo3 VSF / IntelliPro3 VSF, Pentair Pool app (English) (PDF)
- User's guide — IntelliFlo3 VSF / IntelliPro3 VSF, Pentair Pool app (French) (PDF)
- Relay Control Board Kit installation guide — optional accessory 356365Z (English) (PDF)
Specifications from Pentair's IntelliFlo3® VSF / IntelliPro3® VSF Installation and Maintenance Guide and the specifications table on Pentair's IntelliFlo3 VSF product page. Specifications are subject to change by the manufacturer. View the Pentair IntelliFlo3 VSF installation guide (PDF).
