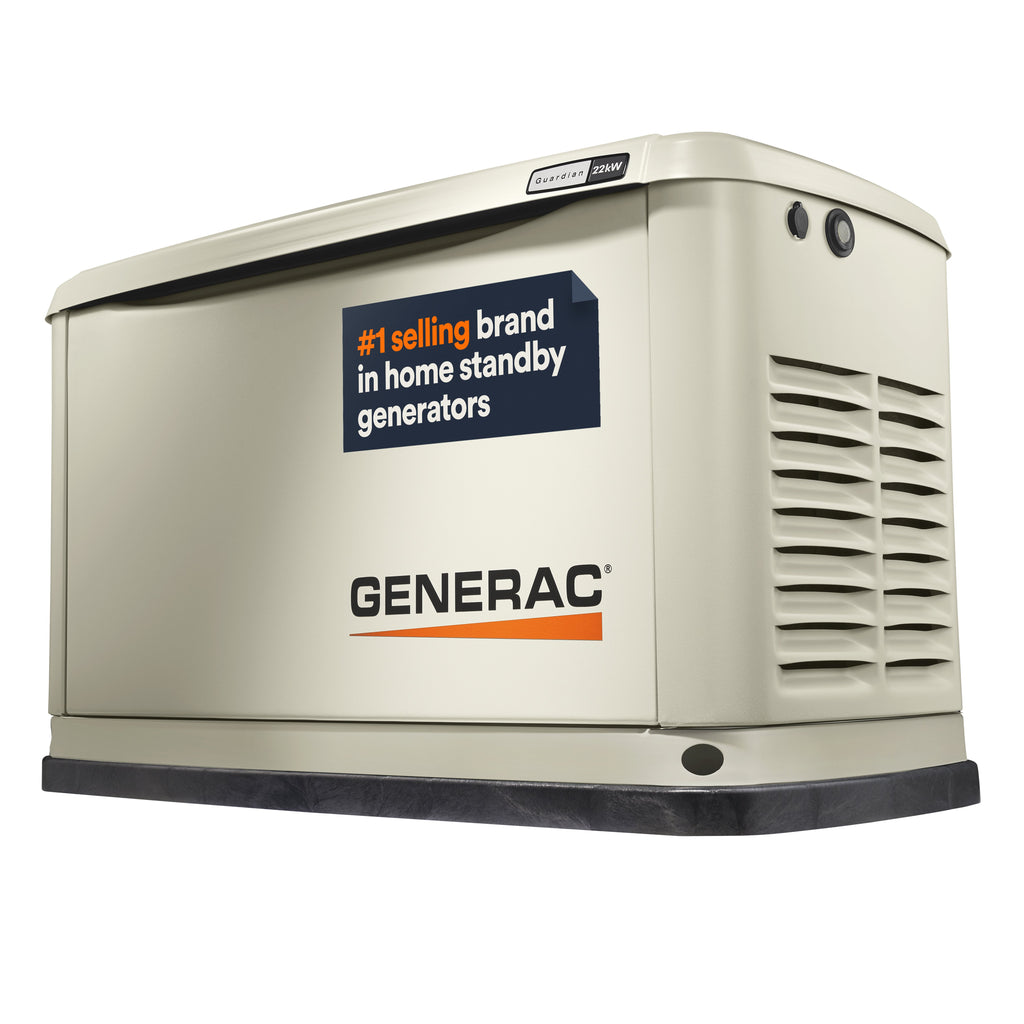

Automatic whole-home backup power on natural gas or propane. The Guardian® Series 22 kW is one of the most powerful air-cooled home standby generators Generac builds. Installed outside like a central air unit, it monitors your utility power around the clock, starts on its own within seconds of an outage, and hands the load back when grid power returns.
Technical specifications
| Warranty | 5 Year limited warranty Source: Generac warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- 22,000 W on propane / 19,500 W on natural gas — capacity for whole-house backup in many homes, confirmed by a proper load calculation.
- True Power™ Electrical Technology — less than 5% total harmonic distortion for clean, utility-quality power that is safe for computers, smart appliances and variable-speed HVAC systems.
- Generac G-Force 1000 engine — purpose-built, pressure-lubricated engine with up to a 2-year / 200-hour oil-change interval and automatic low-oil and high-temperature shutdown.
- Mobile Link® Wi-Fi monitoring — check generator status, run hours, battery condition and maintenance alerts from your phone, tablet or computer.
- Evolution™ controller — two-line multilingual LCD (English, French, Spanish, Portuguese) with 50-event run, alarm and maintenance logs.
- Quiet, weather-resistant enclosure — sound-attenuated aluminum housing rated for winds up to 241 km/h (150 mph), with a Quiet-Test™ low-speed self-test at 57 dB(A).
Cold-weather options
For locations where temperatures regularly fall below −18 °C (0 °F), Generac recommends its optional battery pad warmer and oil warmer. A breather warmer is available for areas with heavy icing.
Specifications
| Series | Guardian® 22 kW (70422 / 70432) |
|---|---|
| Model / SKU | 70432 (Includes 200A Service Transfer Switch) / 70422 (Generator Only) |
| Rated power – propane (LP) | 22,000 W |
| Rated power – natural gas (NG) | 19,500 W |
| Output | 240 V, single-phase, 60 Hz |
| Max. continuous current (LP / NG) | 91.7 A / 81.3 A |
| Main line circuit breaker | 100 A |
| Total harmonic distortion | Less than 5% |
| Engine | Generac G-Force 1000, 2-cylinder, 999 cc, overhead valve |
| Fuel use at full load | NG: 9.26 m³/h (327 ft³/h) LP: 14.77 L/h (3.90 US gal/h) |
| Fuel use at half load | NG: 6.46 m³/h (228 ft³/h) LP: 9.57 L/h (2.53 US gal/h) |
| Sound at 7 m (23 ft) | 67 dB(A) normal load / 57 dB(A) Quiet-Test™ |
| Dimensions (L × W × H) | 121.9 × 63.5 × 73.7 cm (48 × 25 × 29 in) |
| Weight | 211 kg (466 lb) |
| Enclosure | Aluminum, bisque finish |
| Controller | Evolution™ with Mobile Link® Wi-Fi |
| Battery | 12 V, Group 26R (540 CCA) or Group 35AGM (650 CCA) – not included |
Before you buy
- An automatic transfer switch is required. Generac also offers this model with a 200 A service-rated smart switch.
- A 12 V starting battery is required and sold separately.
- The gas supply must be sized for full load: 3.5–7 in. water column for natural gas, 10–12 in. water column for propane.
- Installation must be completed by qualified, licensed professionals in accordance with local electrical and gas codes.
Not sure which size fits your home? Request a quote and we will confirm the right configuration, pricing and availability.
Frequently asked questions
What clearance is required from residential walls and windows?
Under Canadian codes and manufacturer installation guidelines, the generator must be positioned at least 18 inches (457 mm) from exterior non-combustible walls, and a minimum of 5 feet (1.5 m) from any operable window, door, fresh air intake, or dryer vent. Installation must follow CSA B149.1 by a licensed contractor.
What material is used for the outdoor weather enclosure?
The 22 kW models (70432 / 70422) feature an all-aluminum RhinoCoat powder-coated enclosure that provides corrosion protection against Ontario winter road salt, road spray, snow, and freezing rain.
Do I need a cold weather kit in Ontario?
A cold weather kit (thermostatically controlled battery warmer pad and oil filter slip-on heater) is recommended in regions where temperatures drop below -10 °C (14 °F) to ensure fast engine starting during freezing winter weather.
What engine oil is recommended for Canadian climates?
After the initial 25-hour break-in period, the Generac G-Force 999cc V-Twin engine should be serviced with fully synthetic 5W-30 oil for year-round Canadian climate operation (-29 °C to 40 °C).
How does the Automatic Transfer Switch (ATS) function during a power outage?
When grid power fails, the 200 A ATS senses the voltage loss, starts the generator engine, and transfers home electrical loads within 10 to 12 seconds. Once utility power returns stably for 30 consecutive seconds, it transfers back to the grid and runs a 1-minute engine cool-down cycle.
Can I monitor generator status on a smartphone?
Yes. Every Generac Guardian comes equipped with Mobile Link Wi-Fi connectivity, allowing homeowners to check generator status, battery voltage, exercise schedules, and maintenance alerts from an iOS/Android smartphone or web browser.
Documents

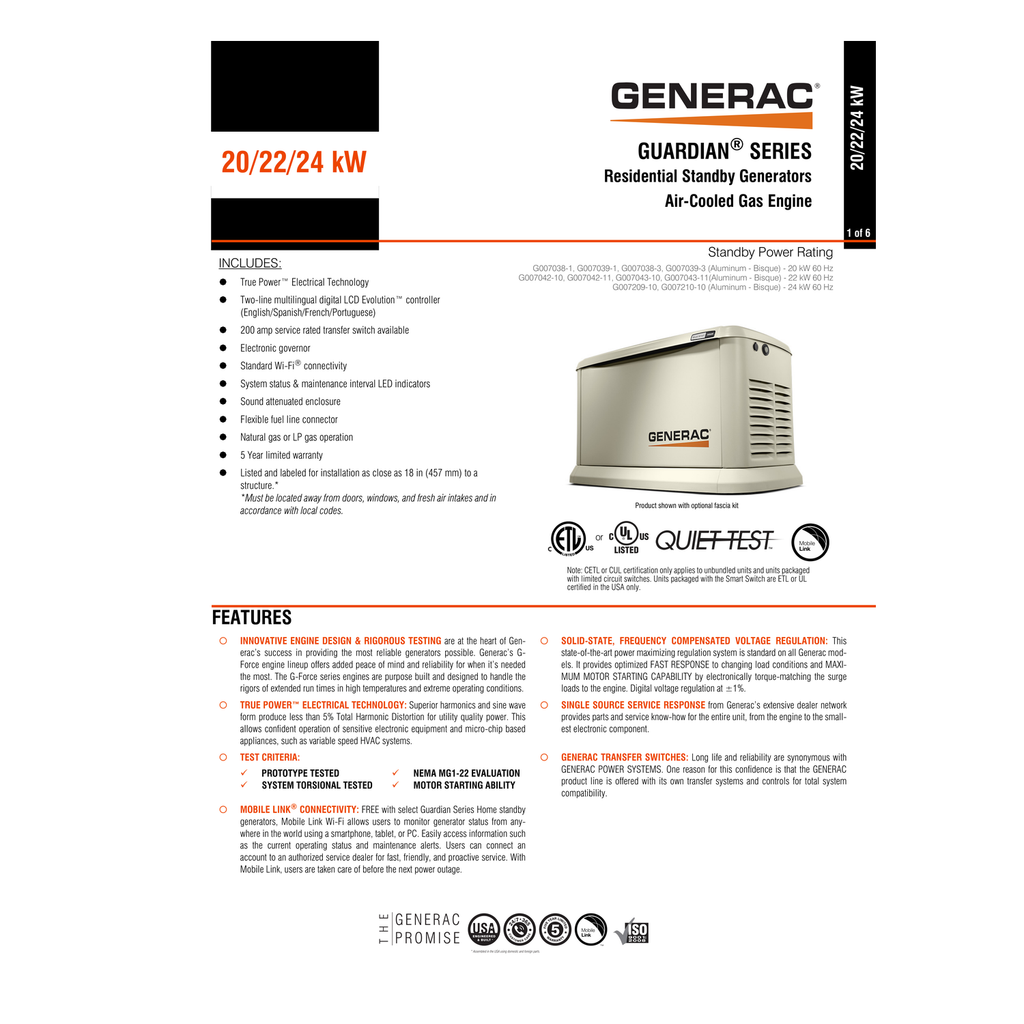

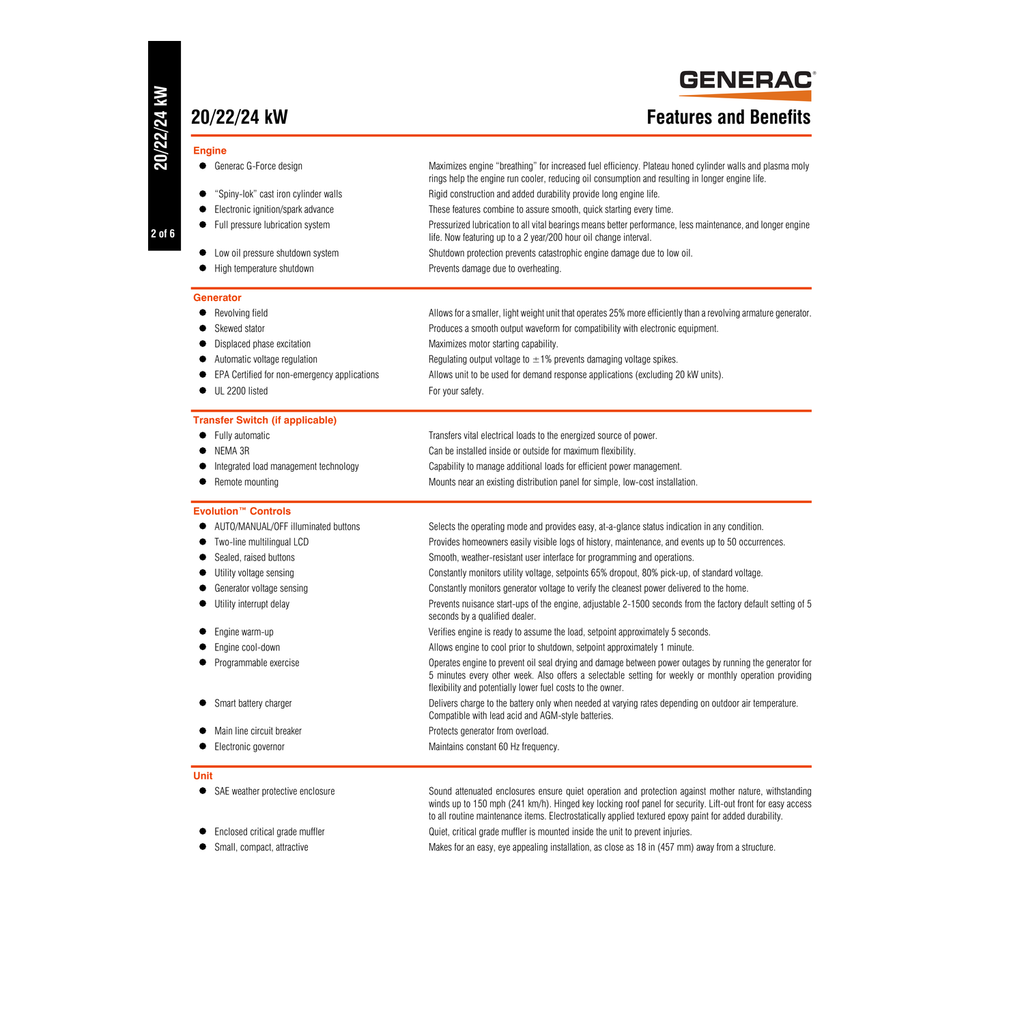

Specifications from Generac's Guardian Series 20/22/24 kW spec sheet (Rev. E, 03/2022). Maximum output decreases approximately 3.5% per 1,000 ft of elevation and 1% per 6 °C above 16 °C. Specifications are subject to change by the manufacturer. View the Generac spec sheet (PDF).
