A wireless security and smart-home control panel with a 7 in touchscreen, Canadian version. The Resideo ProSeries PROA7PLUSCN is the Canadian model of the ProSeries PROA7PLUS all-in-one panel, formerly sold under the Honeywell Home name. It is the hub of a professionally installed alarm system. It connects to PROSiX wireless sensors, keypads and keyfobs, runs Z-Wave lights, locks and thermostats, and reports alarms to a monitoring station over Wi-Fi or LTE.
Technical specifications
| Warranty | Subject to the terms and conditions of this Limited Warranty and except as provided in Section 1(b), Seller warrants its products to be free from defects in materials and workmanship under normal use and service, normal wear and tear excepted, for 24 months from the manufacture date code; provided, however, that in the event the Buyer presents a proper invoice relating to the purchased product and such invoice bears a date later than the manufacture date, then Seller may at its discretion, reflect the warranty period as commencing at invoice date. Source: Resideo warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- 7 in colour touchscreen: arm, disarm and control the system at the panel, with a built-in camera that photographs whoever disarms it.
- Room to grow: 250 zones, 4 partitions and up to 127 PROSiX two-way wireless devices with AES-128 encryption. The PROTAKEOVER module adds support for existing 5800-series and other legacy sensors.
- Smart-home hub: with the Wi-Fi/Z-Wave module, it controls up to 78 Z-Wave devices and works with Amazon Alexa, Apple HomeKit and Control4.
- Bluetooth disarm: the panel can disarm when a paired phone arrives, for up to 6 phones.
- Canadian configuration: Canadian power supply (300-10260-CAN) and support for the PROLTE-CN LTE module on the Bell network. ETL listed to UL/ULC standards.
Specifications
| Model | Resideo ProSeries 7 in All-in-One Panel (Canada) — PROA7PLUSCN |
|---|---|
| Panel | |
| Display | 7 in colour LCD touchscreen |
| Built-in camera | Takes a photo of the user who disarms at the panel; viewable in the panel camera log and Total Connect 2.0 |
| Sounder | Built-in 85 dB sounder; temporal-3 pulse for fire, temporal-4 for carbon monoxide |
| Two-way voice | Audio alarm verification through the panel and wireless touchscreens |
| Tamper | Built-in case tamper; optional wall-mount tamper screw |
| Dimensions (W × H × D) | 200 × 146 × 25 mm (7.875 × 5.75 × 1.0 in) |
| Mounting | Wall mount, or desk mount (PROA7DM) |
| Capacity | |
| Partitions | 4 |
| Intrusion/fire zones | 250, incl. up to 127 PROSiX/SiX wireless devices |
| Keyfobs | 32 PROSiX 8-button keyfobs |
| Keypads and touchscreens | 8 per partition (PROSIXLCDKP keypads, PROWLTOUCH touchscreens) |
| User codes | 96 |
| Event log | 4,000 events |
| Wireless & automation | |
| Sensors | PROSiX/SiX two-way wireless with AES-128 encryption |
| Legacy sensors | 5800 series and other 319.5 / 345 / 433 MHz sensors with the PROTAKEOVER module |
| Z-Wave | Z-Wave Plus, up to 78 devices (60 lights, 6 locks, 6 garage doors, 6 thermostats) with the PROWIFIZW module |
| Bluetooth | Bluetooth disarm, up to 6 paired phones |
| Voice and smart home | Amazon Alexa built in (Wi-Fi required); Apple HomeKit and Control4 integration |
| Communication | |
| Wi-Fi | Central-station reporting over Wi-Fi with the PROWIFIZW or PROWIFI module |
| LTE cellular | PROLTE-CN (Bell, Canada) or PROLTE-A (AT&T, US/Canada) module |

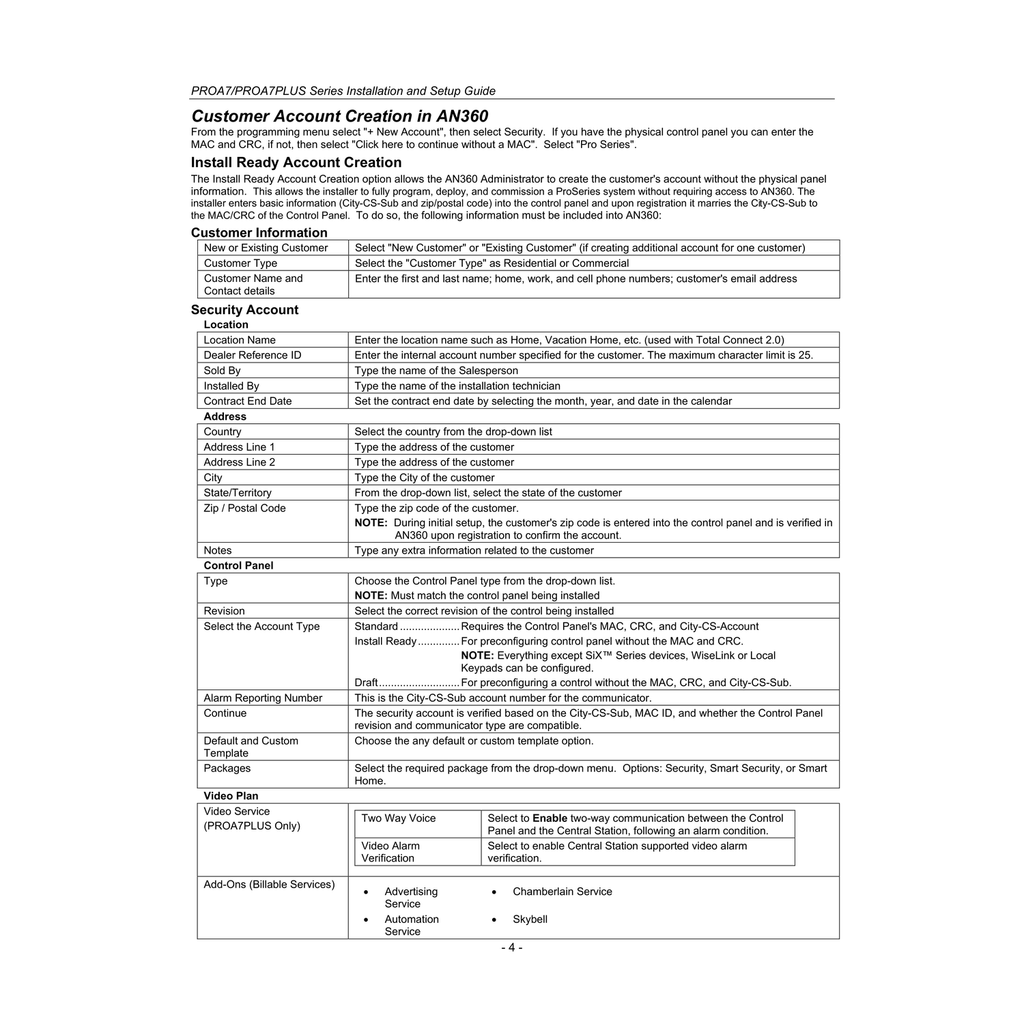

| Setup and service | Registered, programmed and tested through Resideo AlarmNet 360 |
| Power | |
| Primary power | Plug-in power supply 300-10260-CAN (Canada), 9 V DC 2.5 A, into an unswitched 110 V AC outlet |
| Backup battery | Rechargeable lithium-ion pack, 3.6/4.2 V (300-10186 or 300-11186), 24 hours minimum standby |
| Power wiring | Up to 7.6 m (25 ft) with 22 AWG, up to 33.5 m (110 ft) with 16 AWG |
| Listings | |
| Agency listings | ETL listed to UL/ULC standards for residential burglary, residential fire and commercial burglary |
| Canadian installation | CSA C22.1, CAN/ULC-S302 and CAN/ULC-S540 per Resideo's instructions |
Before you buy
- This panel is designed for professional installation. Registration, programming and testing are done through Resideo's AlarmNet 360 platform, so it needs to be set up by a security company with an AlarmNet 360 account. That company also provides the monitoring and app service (Total Connect 2.0).
- Communication is through plug-in modules: PROWIFIZW (Wi-Fi and Z-Wave) and/or an LTE module (PROLTE-CN or PROLTE-A). Confirm which modules come with your system. Wi-Fi reporting and Alexa need a powered, connected router.
- Resideo requires the power supply to be plugged into a 24-hour unswitched outlet. It also requires a check by a qualified technician at least once every three years.
- Replacing an older wireless system? Existing 5800-series sensors can often be reused with the PROTAKEOVER module. Check Resideo's PROTAKEOVER compatibility chart for your sensors.
- In Canada, wiring must follow CSA C22.1 and CAN/ULC-S302; fire installations follow CAN/ULC-S540.
Need assistance planning your home security, wireless sensors or smart home integration? Request a product quote or see the manufacturer documents below.
Frequently asked questions
What is the Resideo ProSeries PROA7PLUSCN 7-inch panel?
The PROA7PLUSCN is an all-in-one wireless security, life safety, and smart home automation touchscreen hub engineered for Canadian residential properties, supporting both professional and self-monitoring protocols.
What wireless sensor protocols does the panel support?
The panel features integrated SiX two-way encrypted wireless technology for long-range sensor communication, and supports legacy 345 MHz wireless sensors via an optional PROTAKEOVER conversion module.
Does the panel include built-in Wi-Fi and Cellular backup?
Yes. The PROA7PLUSCN comes standard with an internal multi-path communicator featuring high-speed Wi-Fi (2.4/5 GHz) and an integrated LTE cellular radio to ensure alarm reporting during broadband outages.
What smart home protocols are integrated for automation?
The panel features built-in Z-Wave Plus certification, allowing direct control of smart locks, lighting dimmers, smart thermostats, and motorized window shades through the touchscreen or Total Connect mobile app.
Does the panel feature a built-in camera and two-way voice?
Yes. The panel incorporates a 2-megapixel front-facing camera for disarm photo verification and an integrated speaker/microphone for hands-free two-way voice emergency communication with monitoring stations.
What emergency battery backup duration is provided?
The hub includes a rechargeable 24-hour lithium-ion backup battery pack that keeps security sensors and cellular signaling operational during extended power failures.
How many wireless zones does the system support?
The PROA7PLUSCN supports up to 127 encrypted wireless security zones, up to 32 separate life safety zones (smoke, heat, CO), and up to 78 Z-Wave smart home automation devices across 4 independent partitions.
Does the panel support voice control and Bluetooth disarming?
Yes. The panel incorporates Amazon Alexa voice services built directly into the touchscreen, and supports hands-free Bluetooth phone disarming when authorized family members enter the home.
What power connection is required for installation?
The hub is powered by an included plug-in 9 V DC 2.5 A step-down power adapter connected to a standard unswitched 120 V electrical outlet, with a modular desk stand or drywall wall-mount bracket.
What Canadian certifications does the ProSeries panel carry?
The PROA7PLUSCN is certified to ULC S304 (Canadian standard for signal receiving centers and systems) and ULC S545 (residential fire warning systems), compliant with all provincial building and insurance codes.
Documents

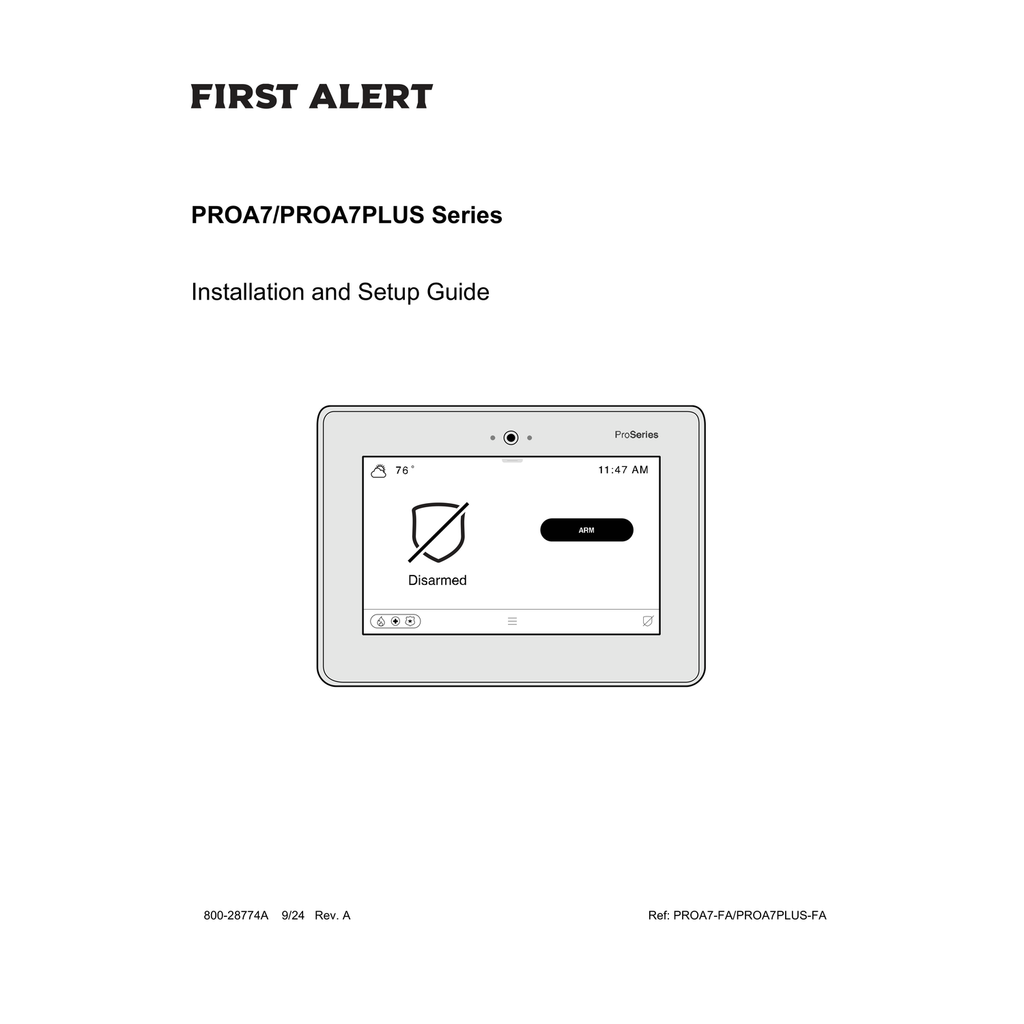

- Installation and setup guide — PROA7 / PROA7PLUS Series (800-28774A) (PDF)
- Quick installation guide — PROA7PLUS / PROA7 (English/French, R800-28771) (PDF)
- Quick user guide — PROA7PLUS Series (English/French, 800-25081) (PDF)
- Control4 integration guide — ProSeries (R800-29150) (PDF)
Specifications from Resideo's PROA7/PROA7PLUS Series Installation and Setup Guide (800-28774A), the PROA7PLUS/PROA7 Quick Installation Guide (R800-28771) and the PROA7PLUSCN product page on resideo.com. Specifications are subject to change by the manufacturer. View the Resideo ProSeries quick installation guide (PDF).
