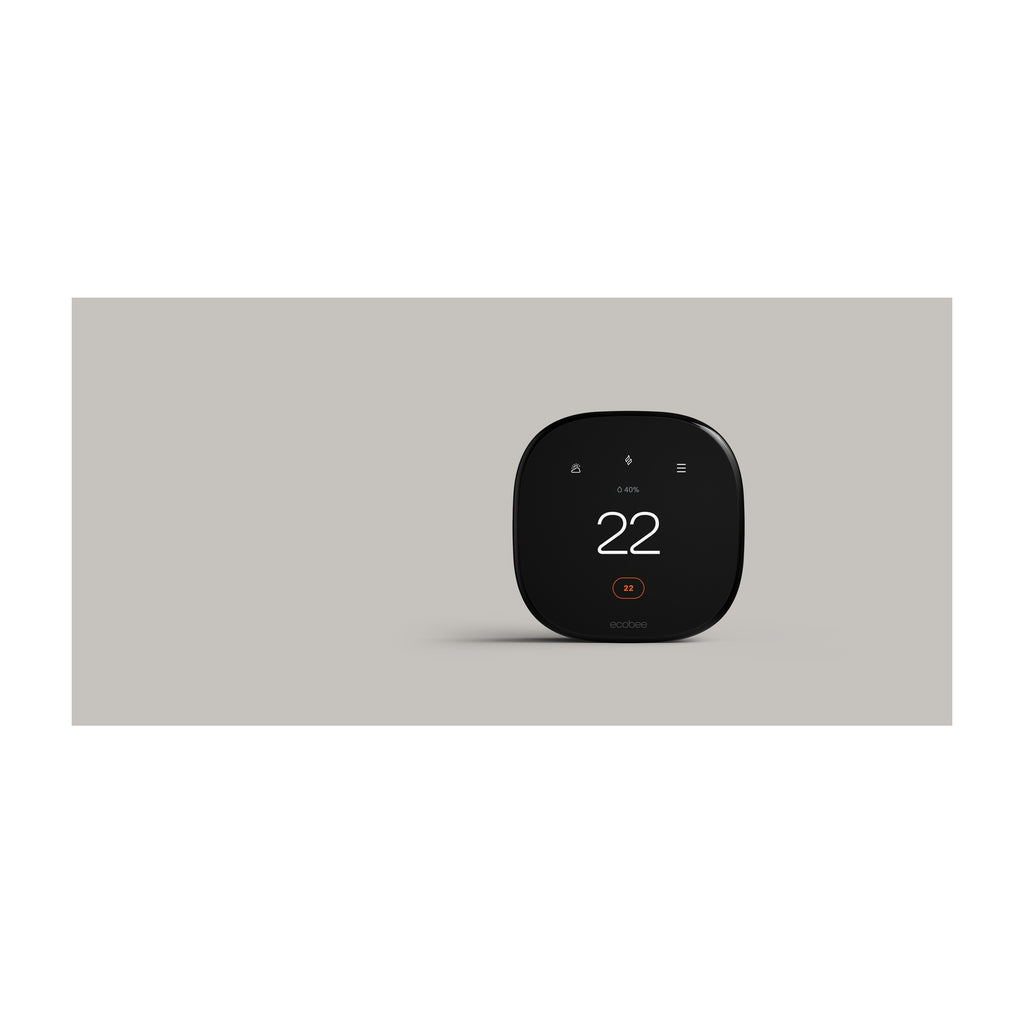

ecobee Smart Thermostat Enhanced featuring a large 4-inch colour touch display, built-in radar occupancy sensing, 1-wire HVAC accessory support, and included Power Extender Kit for balanced comfort across Ontario homes.
Technical specifications
| Warranty | 3-year limited warranty Warranties without worry ecobee devices are covered by a 3-year limited warranty. Source: ecobee warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Large 4.0-inch full-colour glass touchscreen display with crisp temperature and system status readouts
- Integrated radar occupancy sensor detects presence to optimize heating and cooling schedules automatically
- Included Power Extender Kit (PEK) and trim plate in the box for easy installation in homes without a C-wire
- Advanced eco+ energy algorithms adapt comfort levels based on local weather conditions, humidity, and household routines
- 1-wire HVAC accessory terminal supports direct automated control of a whole-home humidifier or dehumidifier
- Supports optional wireless ecobee SmartSensor room sensors (sold separately) to balance comfort across bedrooms and living spaces
- Dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth connectivity for stable connection to home networks
- Works seamlessly with Apple HomeKit, Amazon Alexa, Google Assistant, and Samsung SmartThings
Varieties & package
The ecobee Smart Thermostat Enhanced is supplied in a comprehensive Canadian package designed for DIY or professional installation:
- Enhanced Package with PEK (EB-STATE6LC-01): Includes the Smart Thermostat Enhanced unit, mounting backplate with terminal wire blocks, trim plate, Power Extender Kit (PEK), drywall mounting hardware, and quick start installation guide.
Specifications
| Specification | ecobee Smart Thermostat Enhanced |
|---|---|
| Model number / SKU | EB-STATE6LC-01 (Canadian market) |
| Store SKU | 1001689333 |
| Product category | Smart Thermostat with Radar Occupancy Sensing |
| Display | 4.0 in. full-colour touch LCD (540 × 540 resolution) |
| Housing materials | Black matte composite body with glass display lens |
| Colour | Black |
| Dimensions | 103.8 × 103.8 × 25.9 mm (4.09 × 4.09 × 1.02 in.) |
| Weight | 168 g (0.37 lb) |
| Thermostat sensors | Radar occupancy sensor, precision temperature sensor, indoor relative humidity, ambient light |
| SmartSensor support | Compatible with ecobee SmartSensor wireless room sensors (sold separately) |
| HVAC compatibility | Conventional heating and cooling (up to 2H/2C), Heat Pump (up to 2H/2C), Boilers, Dual-fuel |
| HVAC accessory support | 1-wire accessory terminal (Humidifier or Dehumidifier) |
| Electrical power | 24 VAC (requires C-wire or included Power Extender Kit) |
| Power consumption | Less than 3.5 VA |
| Wireless connectivity | Wi-Fi 802.11 a/b/g/n (2.4 GHz & 5 GHz), Bluetooth 5.0 |
| Smart home ecosystems | Apple HomeKit, Google Home, Amazon Alexa, Samsung SmartThings, Siri |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
Before you buy
- Verify 24V thermostat wiring: Works with either a dedicated C (common) wire or the included Power Extender Kit (PEK) installed at your furnace board.
- Includes architectural trim plate in the box to conceal older screw holes and paint lines.
- 1-wire accessory terminal supports either one humidifier or one dehumidifier; if simultaneous dual accessory control or air quality sensors are required, consider the ecobee Premium model.
- Not compatible with 120/240V electric baseboard heating systems without an approved low-voltage interface relay.
- Confirm 2.4 GHz or 5 GHz Wi-Fi reception is present at the thermostat wall location.
Documents
Frequently asked questions
What is the difference between ecobee Enhanced and ecobee Essential?
The Enhanced model adds a larger 4-inch high-resolution screen, built-in radar occupancy sensing, 1-wire whole-home accessory control (humidifier/dehumidifier), dual-band 5 GHz Wi-Fi, support for wireless SmartSensors, and includes the Power Extender Kit (PEK) and trim plate in the box.
Does the ecobee Enhanced include the Power Extender Kit (PEK)?
Yes. The Canadian Enhanced package (EB-STATE6LC-01) includes the Power Extender Kit inside the box, allowing simple installation even in older homes that lack a dedicated C-wire.
Can the ecobee Enhanced control a whole-house humidifier?
Yes. The terminal backplate includes an accessory terminal (ACC+) configured through on-screen menus to control an evaporative or steam humidifier with indoor humidity scheduling.
Can I add wireless SmartSensors to the Enhanced thermostat?
Yes. The Enhanced model pairs with up to 32 wireless ecobee SmartSensors placed throughout bedrooms or office spaces to balance temperatures and detect room occupancy.
Does it support dual-band Wi-Fi?
Yes. The thermostat supports both 2.4 GHz and 5 GHz Wi-Fi frequencies for stable wireless connectivity with residential routers.
Technical specifications sourced from manufacturer documentation published by ecobee Inc.
