Engineered and manufactured in Owen Sound, Ontario, Canada. The Cana-Vac Signature 790 delivers industrial-grade central vacuum performance for large Canadian homes up to 12,000 sq ft.
The largest unit in Cana-Vac's Signature™ central vacuum line, for mid-size to large homes. The Cana-Vac Signature 790 (ACAN790A) pairs a 659-airwatt bypass motor with 3,680 mm (144.9 in) of water lift and a 23.3 L canister. You can run it with a disposable electrostatic bag or with the self-cleaning HEPA filter. It is the current model in the Signature series that replaces the earlier CV790 / LS790, made by Canavac in Blainville, Quebec.
Technical specifications
| Warranty | Part warranty† 10 years Labor warranty† 5 years. † Warranty only on domestic use only. See details in instruction manual. Source: Cana-Vac warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- 659 AW bypass motor: one 2-turbine Ametek bypass motor, 3,680 mm (144.9 in) water lift and 230.7 m³/h (135.8 CFM) airflow.
- Bag or bagless: use a 22 L (5 US gal) heavy-duty electrostatic bag, or run bagless with the self-cleaning HEPA filter. Cana-Vac rates the Signature HEPA filtration at up to 99.97% of allergens at 0.3 microns.
- Large canister: 23.3 L (5.3 US gal), the biggest in the Signature line, so you empty it less often.
- Cooling intake muffler: Cana-Vac's intake muffler moves fresh air through the unit to keep the motor cool, and the exhaust has its own muffler.
- Built-in protection: a resettable circuit breaker on the unit, plus a low-voltage connector with an LED indicator.
What's included
- Power unit with wall mounting plate
- Rubber couplings and clamp collars for the intake connection, and a cap for the unused air intake
- Owner's manual
Specifications
| Model | Cana-Vac Signature™ 790 — ACAN790A |
|---|---|
| Performance | |
| Airwatts | 659 AW |
| Water lift | 3,680 mm (144.9 in) H₂O |
| Airflow | 230.7 m³/h (135.8 CFM) |
| Sound level | 65 dB |
| Motor | 1 bypass motor (Ametek 122483), 2 turbines |
| Previous model equivalent | CV790 / Signature LS790 |
| Electrical | |
| Voltage | 120 V |
| Maximum current | 14.1 A |
| Power supply | Grounded plug; dedicated grounded 120 V circuit with an outlet within 1 m (3 ft) of the unit |
| Unit protection | Built-in resettable circuit breaker |
| Low-voltage control | Low-voltage connector with LED; starts from the inlet contacts |
| Filtration | |
| Principle | Bag or self-cleaning filter (hybrid filtration) |
| Self-cleaning filter | HEPA self-cleaning filter (TDFILT65V) |
| Bags | Heavy-duty electrostatic bags (TDSAC93N) |
| Bag capacity | 22 L (5 US gal) |
| Canister capacity | 23.3 L (5.3 US gal) |
| Installation | |
| Mounting | Wall mounting plate included |
| Air intakes | 2 intakes; seal the unused one with the cap provided |
| Exhaust | Air exhaust with muffler |
| Clearances | At least 30 cm (12 in) around the unit; 40 cm (16 in) recommended (owner's manual diagram) |
| Dimensions & weight | |
| Height | 99.3 cm (39.1 in) |
| Diameter | 35.8 cm (14.1 in) |
| Weight | 14.6 kg (32.2 lb) |
Before you buy
- This is the power unit only. The hose, attachment kit, inlets and in-wall piping are sold separately. Cana-Vac sells attachment kits and garage kits for the Signature series, and installation kits (fittings, pipe, glue, low-voltage wire) through its service centres.
- Plug the unit into a dedicated, grounded 120 V circuit with an outlet within 1 m (3 ft) of the unit. Do not use an extension cord or adapter.
- Mount it on a wall where you can easily reach the canister, filter and bag, with at least 30 cm (12 in) of clearance as shown in the owner's manual. The unit is 99.3 cm (39.1 in) tall and 35.8 cm (14.1 in) in diameter.
- At 65 dB, the 790 is louder than the other Signature models (56 to 58 dB), which use thru-flow motors. If noise matters more than canister size, compare it with the Signature 690 (ACAN690A).
- If you are replacing an existing unit, check that the intake and exhaust positions line up with your current piping.
Questions about central vacuum pipe rough-ins or attachment kits? Request a product quote or see the manufacturer documents below.
Frequently asked questions
What mounting hardware is provided?
The power unit includes a heavy-duty steel wall mounting bracket, rubber vibration isolators, and mounting lag screws for stud attachment in basements or garages.
Documents

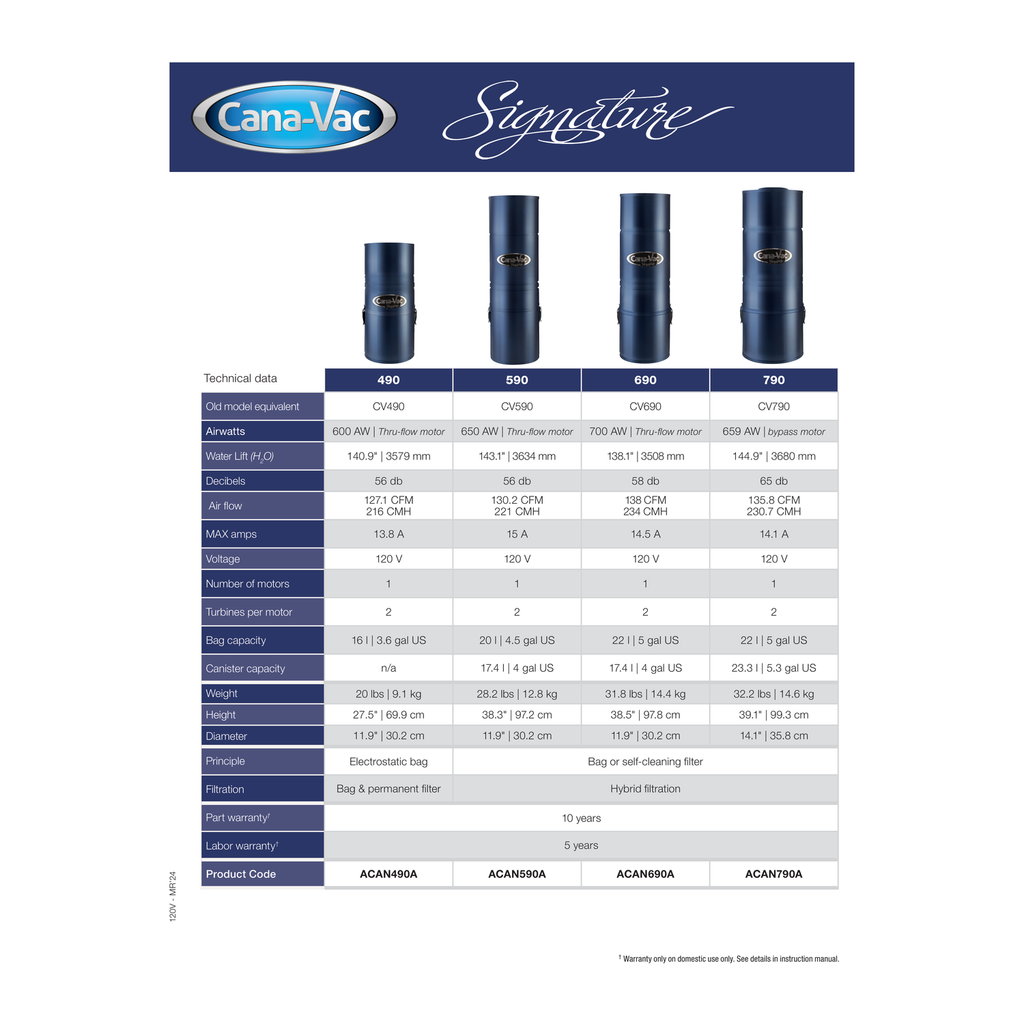

- Technical data sheet — Cana-Vac Signature 490 / 590 / 690 / 790 (MR'24) (PDF)

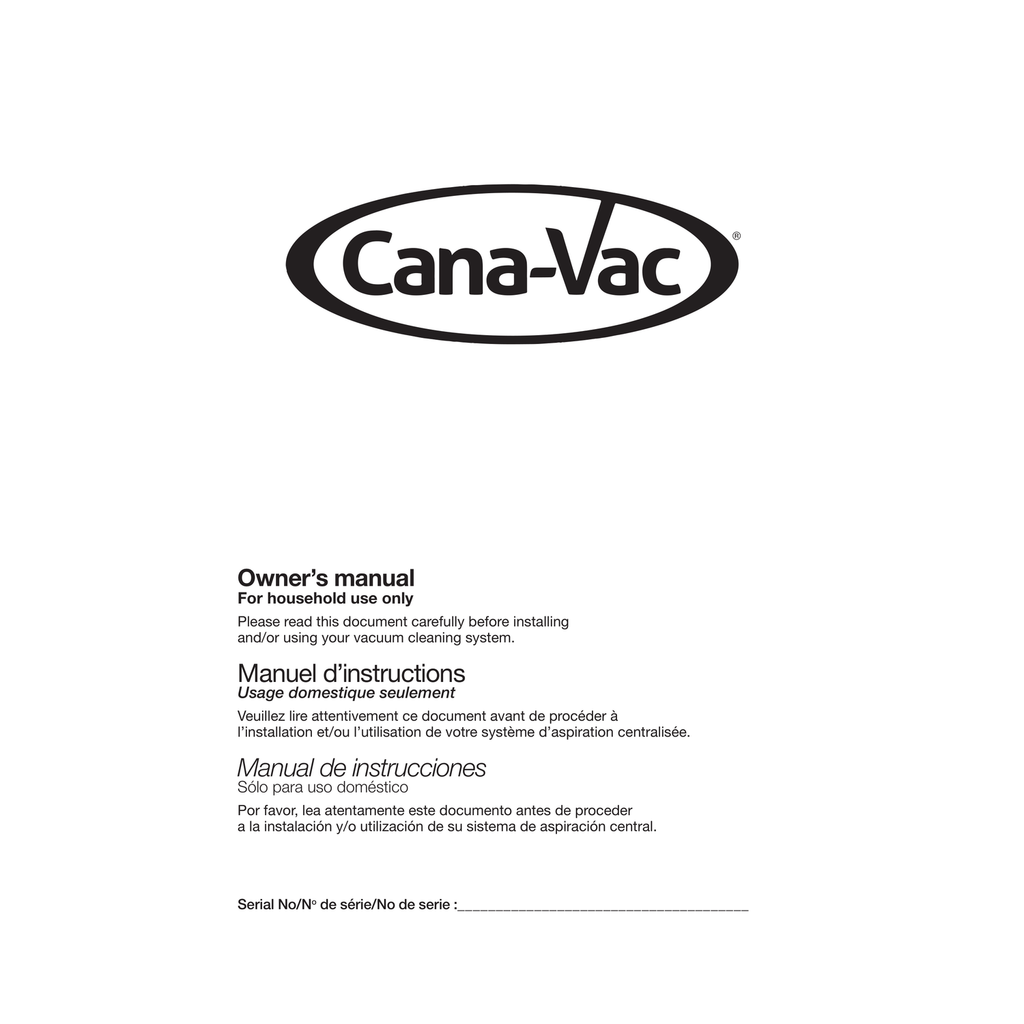

- Owner's manual — Canavac central vacuum, installation and maintenance (IMPMOD34, EN/FR/ES) (PDF)
- Motor technical sheet — Ametek 122483 bypass motor (PDF)
- Circuit board connection diagram — 15 A 120 V board (ELECIR901V) (PDF)
Specifications from Canavac's Signature 490-590-690-790 technical data sheet (MR'24), the Canavac owner's manual (IMPMOD34) and the ACAN790A technical file on Trovac's official support site (docs.trovac.com). Specifications are subject to change by the manufacturer. View the Cana-Vac Signature technical data sheet (PDF).
