The most efficient water heater on the market, cutting electricity costs by up to 75% while providing smart whole-home leak defense. Engineered with an advanced heat pump compressor operating at an astonishing 4.07 Uniform Energy Factor (UEF), the Rheem ProTerra® qualifies for maximum Canadian decarbonization and energy efficiency rebates. Features factory-installed LeakGuard™ 360° leak detection and auto-water shutoff valve to safeguard your home against water damage.
Technical specifications
| Warranty | 10-Year limited warranty for tank and parts, 1-year full in-home labor warranty See Residential Warranty Certificate for complete information Source: Rheem warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Up to 4.07 Uniform Energy Factor (UEF) — extracts ambient heat from basement air and transfers it into water, delivering more than 400% thermal efficiency compared to traditional electric water heaters.
- High-efficiency hybrid heat pump operation — dramatically reduces household electricity bills, paying for itself in energy savings over standard electric tanks.
- Built-in LeakGuard™ auto-shutoff — 360° leak detection rope sensor detects water leaks and closes the integrated brass ball valve in under 15 seconds, preventing catastrophic basement floods.
- Integrated EcoNet® Wi-Fi — monitor hot water availability, select operating modes (Energy Saver, Heat Pump, High Demand, Electric, Vacation), and track energy usage via iOS/Android.
- Ducting ready — top duct collar attachments permit easy connection to flexible ductwork to route cool exhaust air outside or to adjacent utility spaces.
- Dual backup electric elements — premium incoloy backup heating elements activate automatically during peak demand to ensure your home never runs out of hot water.
How the Rheem ProTerra heat pump works
Specifications
| Brand | Rheem |
|---|---|
| Series | Prestige® ProTerra® Hybrid Electric Heat Pump with LeakGuard |
| Product type | Hybrid electric heat pump storage water heater |
| Uniform Energy Factor (UEF) | Up to 4.07 (ENERGY STAR® Tier 4 certified) |
| First Hour Rating (FHR - 50 Gal) | 67 US Gallons (254 L) |
| Compressor & refrigerant | High-efficiency rotary compressor with R134a refrigerant |
| Leak defense | LeakGuard™ 360° sensor & automatic motorized shutoff valve |
| Smart features | EcoNet® Wi-Fi built-in |
| Operating ambient temperature | 2 °C to 43 °C (35 °F to 110 °F) |
| Electrical requirement | 240 V AC, 1 Phase, 60 Hz, 30 A dedicated breaker |
| Operating sound level | Quiet 45 dB(A) operation |
| Dimensions (50 Gal - H × Dia) | 67.0 × 22.25 in (170.2 × 56.5 cm) |
| Warranty | 10-year limited tank & parts warranty |
Before you buy
- Electrical breaker: Requires a dedicated 240 V, 30 A double-pole breaker circuit.

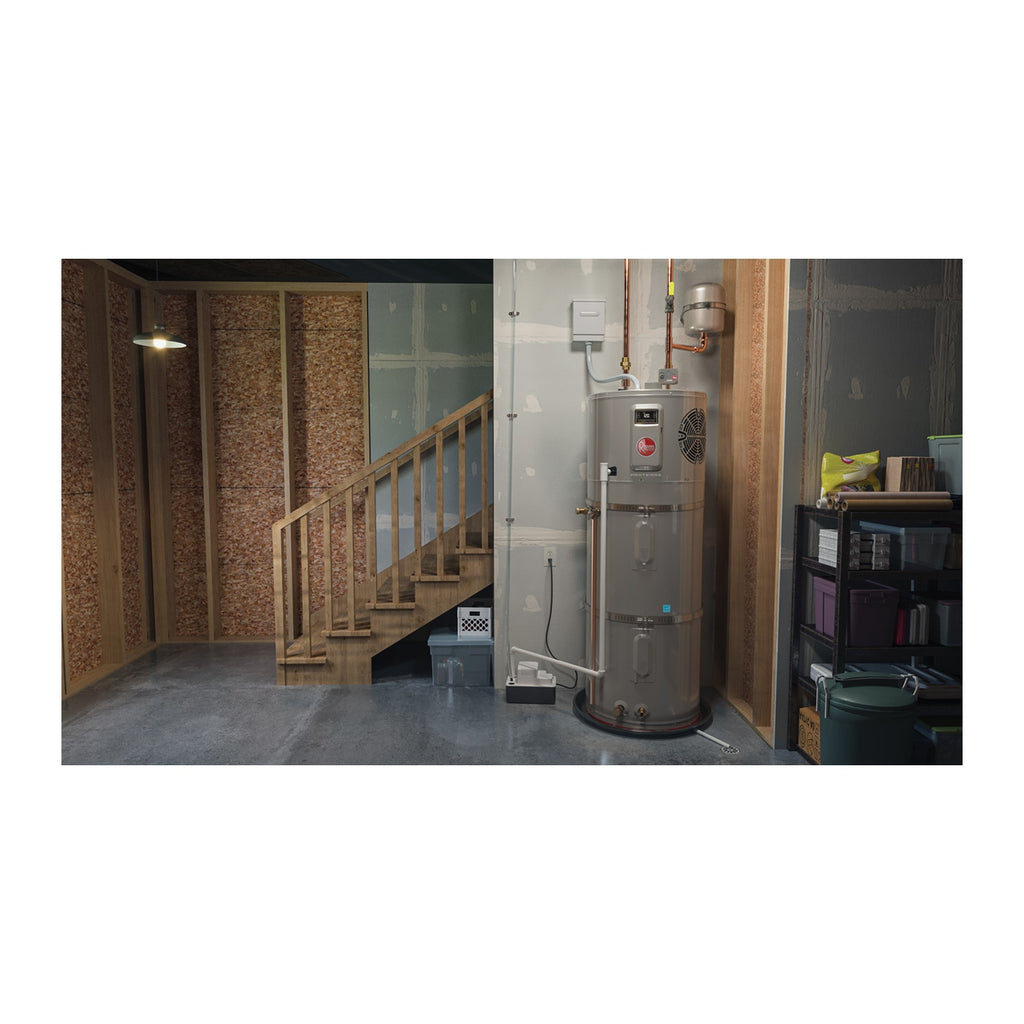

- Installation space: Needs at least 700 cubic feet of surrounding air space (e.g. 10 × 10 × 7 ft room) or optional ducting to an adjacent space for airflow intake and exhaust.
- Condensate drain: Heat pump dehumidification produces water condensate; requires nearby floor drain, laundry drain, or small condensate removal pump.
- Rebate qualification: Eligible for federal and provincial heat pump decarbonization grant programs.
Documents
- Specification sheet — Rheem ProTerra Hybrid Electric (PDF)
- Installation and operation manual — ProTerra Series (PDF)
Specifications from Rheem technical engineering documentation. Subject to manufacturer revisions.
Installation & Safety Notice: Hybrid heat pump water heaters require a dedicated 240V / 30A electrical supply, proper ambient room volume or ducting, and installation by qualified plumbing and electrical trades in accordance with local electrical safety codes.
