Available with builder-level support across Ontario, Canada. The Hide-A-Hose 6000 PRO Retractable Hose DIY Kit solves central vacuum hose storage by retracting the hose directly into wall tubing.
A retractable central vacuum hose that stores inside your walls. This Hide-A-Hose kit (HS402155WDIY) has everything to build one retractable inlet: a 6000 PRO valve, a 15.2 m (50 ft) RapidFlex hose, Hide-A-Hose sweep elbows, fittings and low-voltage wire. You pull out only as much hose as you need and lock it at that length. When you're done, the central vacuum's suction pulls the hose back into the pipe in the wall. It suits new construction and retrofits, and connects to an existing or new central vacuum power unit.
Technical specifications
| Warranty | Hide-A-Hose Inc. warrants that genuine Hose, Fittings, and Valve when used for household purposes, pursuant to seller’s instructions, will be free from defects in materials and workmanship for a period of five (5) years from the date of the initial consumer purchase. Hide-A-Hose Inc. warrants the accessories when used for household purposes, pursuant to seller’s instructions, will be free from defects in materials and workmanship for a period of three (3) years from the date of the initial consumer purchase. Source: Hide-A-Hose warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Hose stores in the wall: no hose to carry, coil or keep in a closet. One 50 ft hose covers about 167–214 m² (1,800–2,300 sq ft) from a single inlet.
- Lock at any length: the 6000 PRO's push-and-pull lock holds the hose wherever you stop, so a quick clean-up doesn't mean pulling out all 50 ft.
- RapidFlex hose: a scratch-resistant hose that needs no sock. It is larger in diameter than Hide-A-Hose's SmartSoc hose, and its mini-cuff connects directly to a Ready Grip handle or cleaning tools.
- Mounts inside the stud: a three-point mounting system fastens the valve to the inside of the stud, and the magnetic door closes onto an enlarged seal.
- Serviceable: the low-voltage wires connect directly to the switch on the door. Hide-A-Hose says the moving parts can be replaced without tools and without removing the valve from the wall.

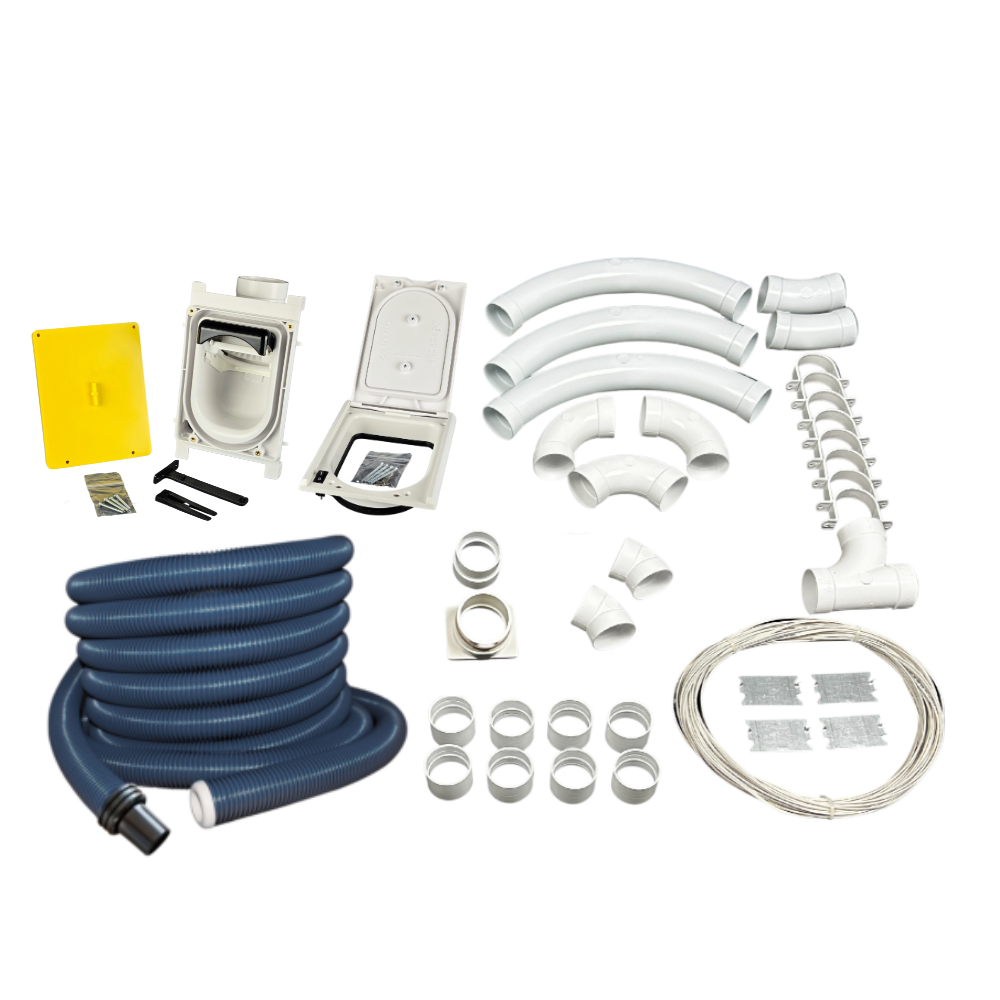

What's included
- 6000 PRO Rough-In Valve Kit (HS6000R): rough-in valve, mounting brace, reducer, yellow mud cover, 4 mud-cover screws, levelling shim
- 6000 PRO Trim Kit (HS6000W, white): trim door with low-voltage switch, 4 screws, 2 spade connectors
- RapidFlex hose, 15.2 m (50 ft), with mini-cuff and end cap
- 3 Hide-A-Hose 90° and 2 Hide-A-Hose 22.5° sweep elbows, 3 standard 90° and 2 standard 45° elbows, 1 × 90° sweep tee
- 8 pipe couplers, 8 pipe straps, 4 nail guards, 24.4 m (80 ft) of 20-gauge low-voltage wire
Specifications
| Model | Hide-A-Hose 6000 PRO Valve DIY Kit with 50 ft RapidFlex Hose — HS402155WDIY |
|---|---|
| Hose | |
| Hose | RapidFlex retractable hose, 15.2 m (50 ft) |
| Hose construction | Scratch-resistant hose, no hose sock needed; larger diameter than Hide-A-Hose SmartSoc hose |
| Hose cuff | RapidFlex mini-cuff, 35 mm (1⅜ in), blue; connects directly to a Ready Grip Direct Connect handle and kit tools |
| Hose end cap | White RapidFlex end cap (HS202203) |
| Custom length | Can be shortened by trimming the valve end (never the cuff end) |
| Coverage per inlet | About 167–214 m² (1,800–2,300 sq ft) with a 50 ft hose |
| Valve | |
| Valve | Hide-A-Hose 6000 PRO: Rough-In Valve Kit (HS6000R) and Trim Kit (HS6000W, white) |
| Hose lock | Push-and-pull lock, holds the hose at any length |
| Mounting | Three-point mounting system that fastens to the inside of the stud |
| Wall thickness | Up to 25 mm (1 in); 19 mm (¾ in) door extension kits (HS600051) can be stacked for thicker walls |
| Door | Magnetic closure with an enlarged door seal |
| Switch | Low-voltage switch on the trim door, 2 spade connectors |
| Valve assembly weight | 0.94 kg (2.07 lb) (Hide-A-Hose technical drawing) |
| Fittings & wiring included | |
| Hide-A-Hose sweep elbows | 3 × 90°, 2 × 22.5° |
| Standard elbows | 3 × 90°, 2 × 45° |
| Tee | 1 × 90° sweep tee (3-way connector) |
| Pipe couplers and straps | 8 couplers, 8 pipe straps |
| Nail guards | 4 |
| Low-voltage wire | 24.4 m (80 ft), 20-gauge |
| Not included | |
| Central vacuum pipe | Standard 2 in OD central vacuum pipe and PVC cement, sold separately |
| Power unit | Sold separately |
| Handle and cleaning tools | Sold separately (e.g. Ready Grip handle, tool kits) |
Before you buy
- You also need a central vacuum power unit, 2 in central vacuum pipe with PVC cement, and a handle with cleaning tools. None of these are in the kit.
- The pipe must be long enough to store the whole hose. Hide-A-Hose's guide says not to join a hose run to another pipe run until you have more pipe than hose (for example, at least 13.4 m / 44 ft of pipe for a 40 ft hose). Only Hide-A-Hose sweep 90°, 45° and 22.5° fittings may be used in the section that stores the hose. Hide-A-Hose recommends no more than four 90° bends per valve.
- Longer hoses reduce airflow, so Hide-A-Hose recommends a larger power unit for longer hose runs. Check that your power unit is strong enough, especially for runs that go up two floors.
- The trim door fits walls up to 25 mm (1 in) thick. Thicker walls need the 19 mm (¾ in) door extension kit (HS600051), sold separately.
- Hide-A-Hose's installation guide assumes experience installing central vacuum systems, and says to use only Hide-A-Hose parts in the hose run. It also recommends testing the system before drywall goes up.
Need assistance planning your retractable hose pipe runs or confirming central vacuum compatibility? Request a product quote or see the manufacturer documents below.
Frequently asked questions
What type of central vacuum power unit is recommended for retractable hoses?
Because the vacuum suction is used to pull the 50-foot hose back into the wall pipe, a high-suction central vacuum unit delivering at least 120 to 135 inches of water lift (such as Cana-Vac or similar) is recommended.
What is the RapidFlex hose design?
The RapidFlex hose features a durable, scratch-resistant braided fabric jacket that protects baseboards, furniture legs, and hardwood floors from friction marks as the hose glides across rooms.
Can the hose be locked at partial lengths during use?
Yes. The patented inlet valve door features an integrated cam-lock lever that securely locks the hose at any intermediate length (e.g. 15 ft, 25 ft, or 50 ft).
Can the valve door be painted to match wall colors?
Yes. The textured surface of the white ABS trim door is formulated to accept interior latex wall paint, allowing the valve cover to blend discreetly into interior drywall.
How does the system turn the central vacuum on and off?
The system can be operated using a low-voltage switch at the inlet valve door or an optional wireless RF handle with a transmitter that signals the vacuum power unit wirelessly.
Can Hide-A-Hose be retrofitted into existing homes?
Yes. Hide-A-Hose can be installed in existing homes through unfinished basement joists, interior closets, or attic spaces with access to partition wall cavities.
Documents

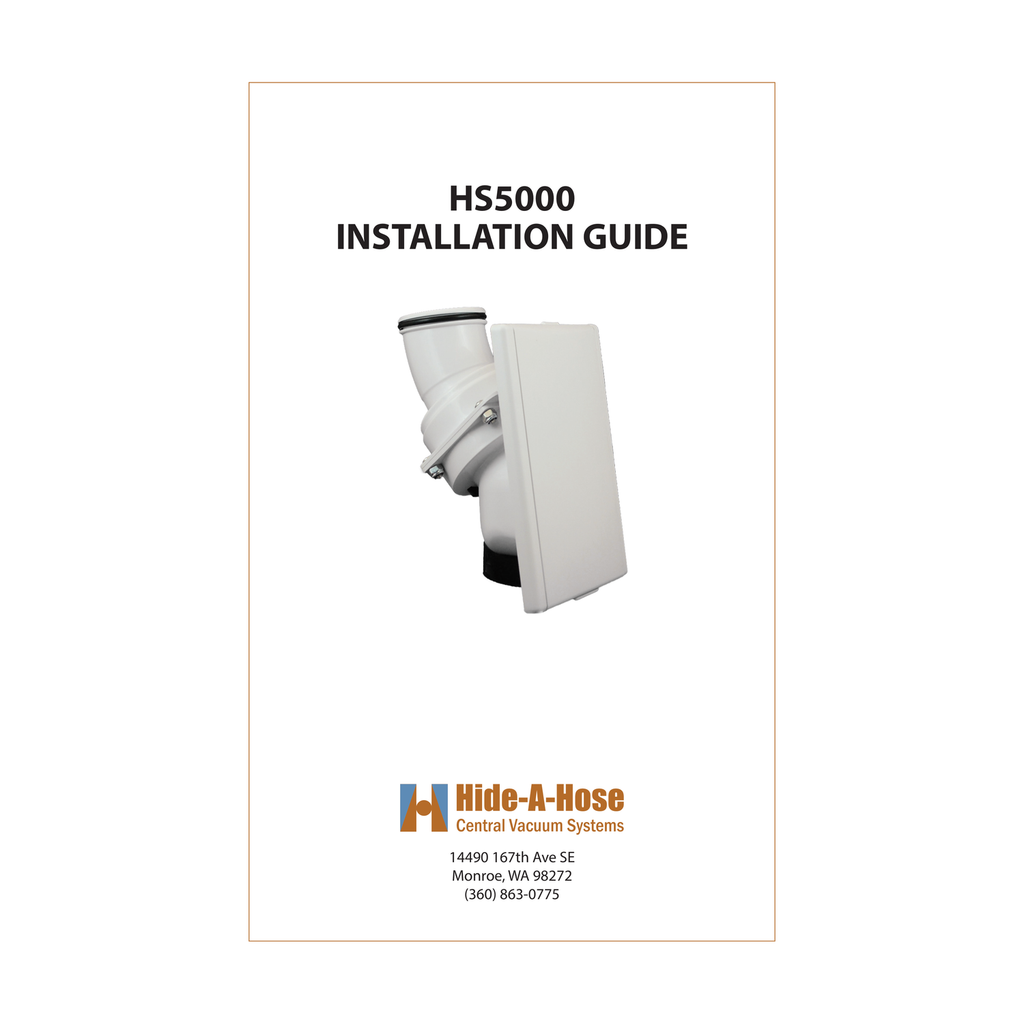

- Installation guide — Hide-A-Hose retractable hose system (HS5000 guide, linked from the 6000 PRO DIY page) (PDF)
- Technical drawing — Hide-A-Hose 6000 PRO valve assembly (HS6000PRO) (PDF)
- Quick start card — using your Hide-A-Hose (PDF)
Specifications from Hide-A-Hose's product pages for the 6000 PRO Valve DIY Kit, 6000 PRO Rough-In Valve Kit, 6000 PRO Trim Kit and RapidFlex hose, the 6000 PRO page, the HS6000 technical drawing and the Hide-A-Hose installation guide (hideahose.com). Specifications are subject to change by the manufacturer. View the Hide-A-Hose installation guide (PDF).
