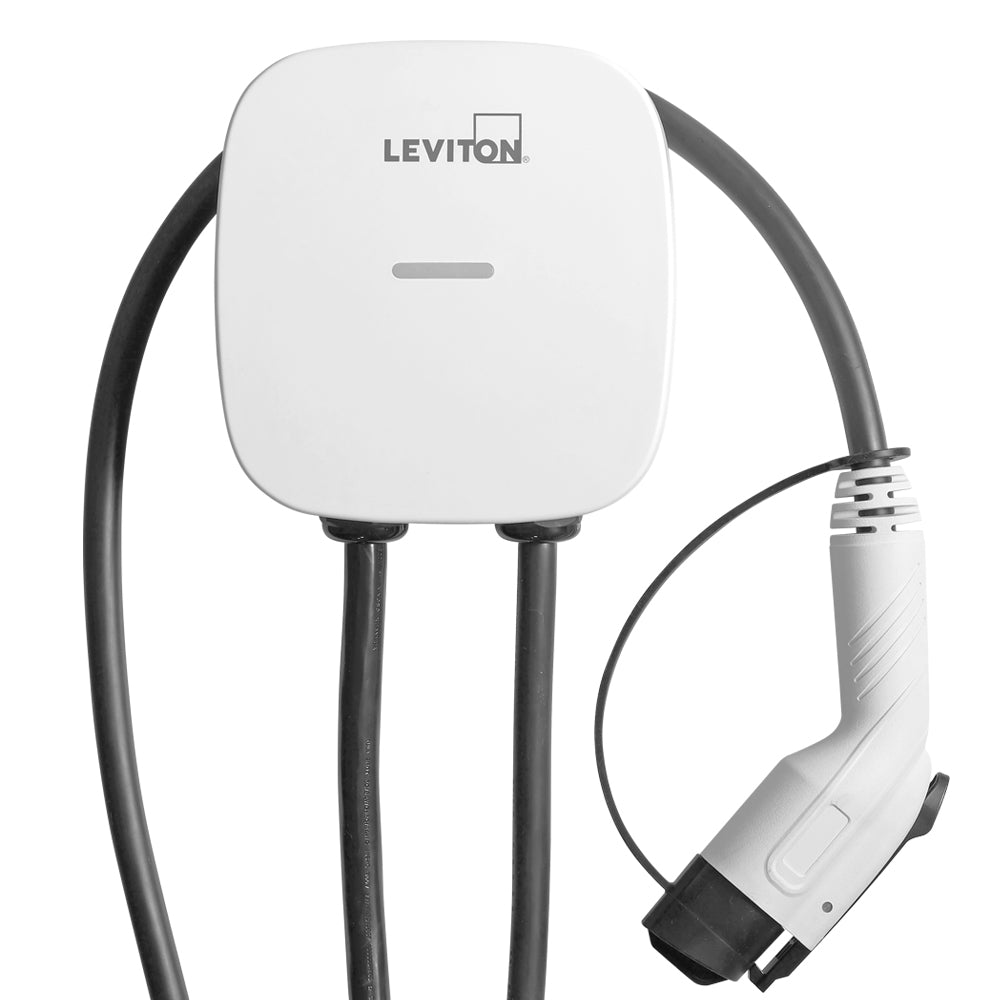

A 40 A Level 2 home EV charger that simply plugs into a NEMA 14-50 outlet. The Leviton EV Series EV40P delivers up to 9.6 kW at 208/240 V through a 7.6 m (25 ft) SAE J1772 cable. It works with the My Leviton app over Wi-Fi, so you can schedule charging and check its status from your phone. The NEMA Type 3R enclosure is rated for both indoor and outdoor installation.
Technical specifications
| Charging Power | 9.6 kW (40A) |
|---|---|
| Warranty | LIMITED 2 YEAR WARRANTY AND EXCLUSIONS. Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Source: Leviton warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
Key features
- 9.6 kW Level 2 charging — 40 A output at 208/240 V AC, with charging current adjustable from 16 A to 40 A to suit your circuit.
- Plug-in installation — pre-attached 0.9 m (3 ft) input cable with a NEMA 14-50P plug; wall bracket and mounting hardware are included.
- My Leviton app over Wi-Fi — schedule charging sessions, start or stop charging remotely, view charging status and receive fault notifications, alongside other My Leviton devices on one dashboard.
- Charges any J1772 vehicle — industry-standard SAE J1772 connector; Tesla vehicles can charge using Leviton's NACS adapter (part number NACSA, sold separately).
- Cold-weather rated — rated to operate from −30 °C to 50 °C, with a charging cable designed to prevent freezing and cracking in extreme weather.
- Optional RFID access control — ships with RFID disabled for open charging; tap the admin card to restrict charging to card holders.
In the box
- EV40P charger with attached input cable (NEMA 14-50P plug) and 7.6 m (25 ft) charging cable
- Wall-mounted bracket, corrugated mounting template, four M6 hexagonal expansion screws, two M5 anti-theft screws, two wing nut screws and an Allen wrench
Specifications
General
| Brand | Leviton |
|---|---|
| Model number | EV40P |
| Series | EV Series Smart Home |
| Product type | Level 2 electric vehicle charging station, plug-in |
| Application | Home |
| Colour | White |
| UPC | 078477015582 |
Performance
| Output current | 40 A (adjustable 16–40 A) |
|---|---|
| Output power | 9.6 kW |
| Charge connector | SAE J1772, #10 AWG cable |
| Charging cable length | 7.6 m (25 ft) |
| Status indicator | LED: blue (ready), green (charging), red (fault) |
Electrical
| Input voltage | 208/240 V AC |
|---|---|
| Required circuit breaker | 50 A |
| Plug | NEMA 14-50P on a 0.9 m (3 ft) input cable |
| Phase / wire | L1, L2 and ground, bottom feed |
| Input protection | Under-voltage, over-voltage, residual current (RCD), surge protection, ground-fault protection |
| Output protection | Over-current, over-temperature, control pilot fault protection |
Connectivity
| App | My Leviton (iOS 12.0 or later, Android 8.0 or later) |
|---|---|
| Wi-Fi | 802.11 b/g/n, 2.4 GHz only; WPA, WPA2, WPA3 or open |
| Bluetooth | 5.0 (used for setup) |
| Access control | Optional RFID (disabled by default) |
| Protocol | OCPP 1.6 compliant |
Environment and enclosure
| Operating temperature | −30 °C to 50 °C (−22 °F to 122 °F) |
|---|---|
| Storage temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating humidity | Below 95% relative humidity, non-condensing |
| Altitude | Up to 2,000 m (6,500 ft) |
| Cooling | Natural cooling |
| Enclosure rating | NEMA Type 3R, indoor and outdoor use |
| Enclosure material | Plastic (PC + PBT) |
| Cover locking | Phillips head screws, no padlock option |
Dimensions
| Charger (W × H × D) | 209.2 × 219.2 × 95.1 mm (8.23 × 8.63 × 3.74 in) |
|---|---|
| Mounting height | 600–1,200 mm (2–4 ft) above the ground |
Certifications

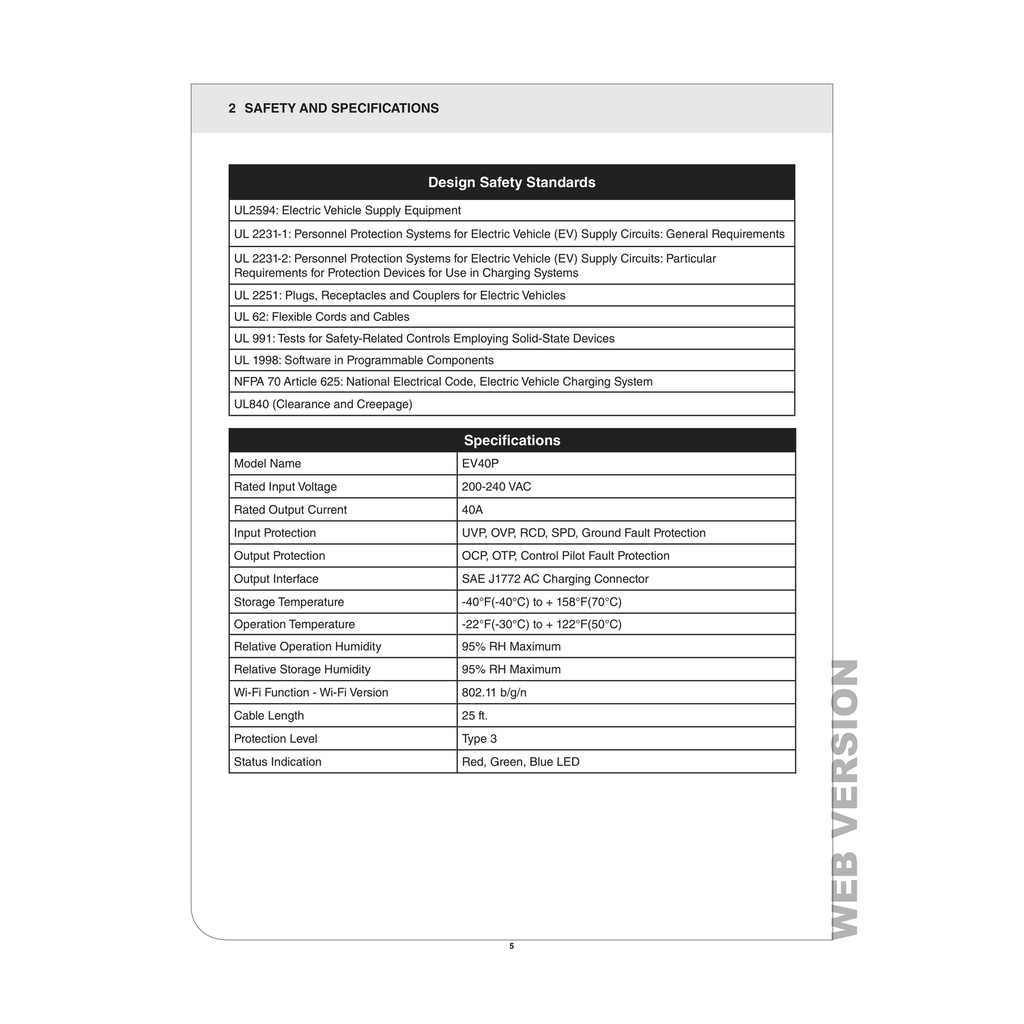

| Safety standards | UL 2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, UL 840, NFPA 70 Article 625, CSA C22.2 No. 280 |
|---|---|
| Listings | ENERGY STAR, UL and cETLus certified (Leviton EV Series Canada line card) |
| Radio | FCC Part 15; ISED licence-exempt RSS; CAN ICES-3(A)/NMB-3(A) |
Before you buy
- You need a NEMA 14-50 receptacle on a 50 A circuit within reach of the 0.9 m (3 ft) input cable. Leviton recommends its 1450R EV-grade receptacle (1450W weather-resistant for outdoor use).
- Outdoors, the weather-resistant receptacle must be installed in a 2-gang outdoor box with a code-compliant weatherproof cover.
- Under the Canadian Electrical Code, Part I, Rule 4-012, the local electrical inspection authority decides whether a cord-connected charger is acceptable. Check before you choose plug-in over hardwired. Leviton does not offer this 40 A model as a hardwired unit; its hardwired EV Series models are 32 A, 48 A and 80 A.
- Mount the charger 600–1,200 mm (2–4 ft) above the ground on a stud or solid wall. Do not use an extension cord.
- App features need a 2.4 GHz Wi-Fi network at the charger location.
- Leviton specifies installation by a qualified technician in line with the Canadian Electrical Code and local regulations.
Questions about compatibility? Contact us before you order.
Frequently asked questions
What charging speed does the Leviton EV40P deliver?
The Leviton EV40P delivers up to 40 A continuous Level 2 charging output (9.6 kW at 240 V), providing fast charging up to 6 times faster than a standard 120 V Level 1 cordset.
What plug type is equipped on the input cable?
The EV40P features a factory-molded NEMA 14-50 plug with a 2-foot input cord, designed for direct plug-in to a standard 50 A 240 V dryer/RV wall receptacle.
What enclosure rating does the charger feature for outdoor use?
The charger is housed in a weather-resistant NEMA Type 3R enclosure rated for operating temperatures between -30 °C and 50 °C, suitable for outdoor carports, driveways, or indoor garages.
What charging cable length is provided?
The unit includes a 25-foot flexible charging cable fitted with a standard SAE J1772 connector that reaches vehicles across two-car garages or tandem driveways.
Does the charger include status indicator lights?
Yes. Color-coded LED indicators on the front panel provide real-time status updates: Power, Charging Active, and Fault / Trouble detection.
Can the unit be locked to prevent unauthorized tampering?
Yes. The wall-mounting bracket includes a built-in padlock tab to secure the charging unit to the wall.
What safety protections are integrated into the electronics?
The unit features built-in over-current, over-voltage, under-voltage, and integrated 20 mA CCID ground fault circuit interrupter (GFCI) protection with automatic reset.
Can this charger be used with Tesla electric vehicles?
Yes. The standard J1772 handle connects directly to all Tesla models using the standard J1772 adapter supplied with every Tesla vehicle.
What electrical circuit breaker size is required for installation?
The unit requires a dedicated 50 A two-pole 240 V circuit breaker per Canadian Electrical Code (CSA C22.1) continuous duty guidelines.
How is the charging cable stored when not in use?
The unit includes a separate wall-mount cable holster and connector dock to keep the cable coiled and the connector clean and protected from snow and moisture.
Documents

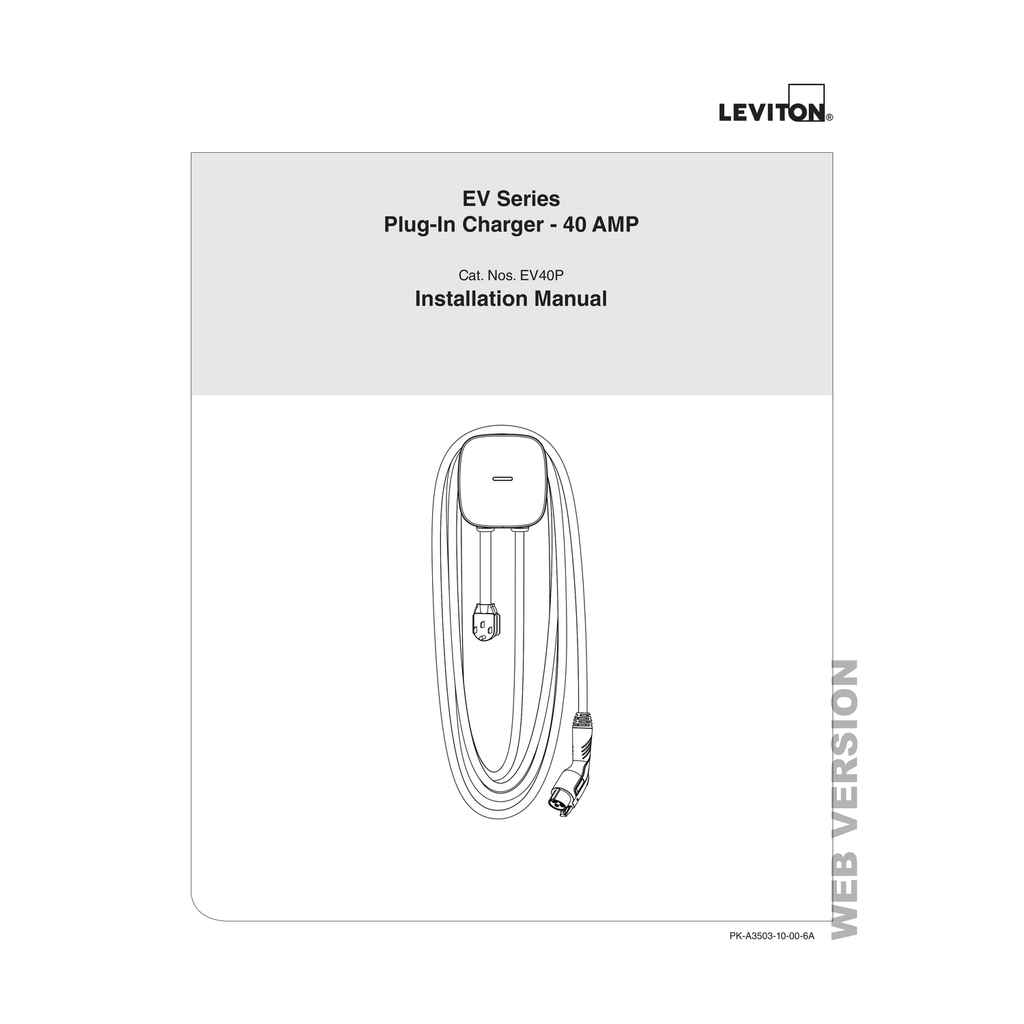

- Installation manual — EV40P (English) (PDF)
- Installation manual — EV40P (French) (PDF)
- My Leviton setup guide — EV Series (English, French, Spanish) (PDF)
- Product specifications — EV40P (Leviton Canada, French) (PDF)
- EV Series line card — Leviton Canada (PDF)
Specifications from Leviton's EV40P product page, EV40P installation manual (PK-A3503-10-00-6A), Canadian EV40P product specifications, EV Series My Leviton setup guide (PK-A3468-10-02-6A) and EV Series Canada line card and brochure. Specifications are subject to change by the manufacturer. View the Leviton EV40P installation manual (PDF).
