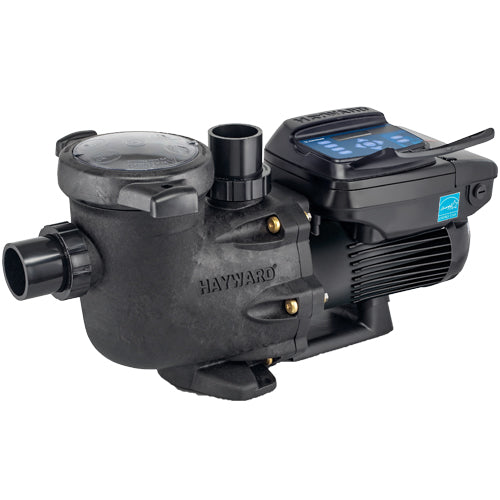

A 1.85 HP variable-speed pool pump that runs on 115 V or 230 V. The Hayward TriStar® VS 900 (SP32900VSP) is a variable-speed pump for inground pools across Ontario, built on Hayward's TriStar housing with a permanent-magnet motor and a Viton® pump seal. It runs from 600 to 3,450 RPM on its own built-in timers, or under the control of Hayward or third-party pool automation. A second base is included so it lines up with an existing Pentair® WhisperFlo® for easier replacement.
Technical specifications
| Warranty | 2026 EXPERT LINE® RESIDENTIAL WARRANTY TERMS All Products* Exceptions listed below In Ground Standard Parts 3 Years Field Labor 1 Year Source: Hayward warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Variable speed, 600–3,450 RPM — run low for daily filtration and higher for heating, cleaners or water features. WEF 8.3 at 230 V and 12.9 at 115 V; ENERGY STAR certified.
- Dual-voltage drive — wires to 115 V or 230 V. Hayward rates it at 1.85 THP on 230 V; on 115 V the pump delivers roughly half the flow.
- Built-in programming — 24-hour clock with 8 custom timers, 4 preset speed buttons and a Quick Clean mode, on a keypad that rotates to four positions or mounts on a wall.
- Works with automation — connects to software-compatible Hayward controls over RS-485, or to other brands' controls through relay inputs.
- Retrofit-friendly — 2 in × 2.5 in CPVC unions, side and rear conduit entry, and a second base to match Pentair WhisperFlo height.
- Easy to service — extra-large no-rib strainer basket under a see-through cover.
Specifications
| Model | Hayward TriStar® VS 900 — SP32900VSP |
|---|---|
| Performance | |
| Total horsepower | 1.85 THP (230 V) |
| Weighted energy factor (WEF) | 8.3 at 230 V / 12.9 at 115 V |
| Speed range | 600–3,450 RPM |
| Flow at full speed, 230 V (Hayward) | About 416 L/min (110 US gpm) at 12.2 m (40 ft) total dynamic head; 363 L/min (96 US gpm) at 15.2 m (50 ft) |
| Replaces | Most high-performance pumps up to 1.5 HP full-rated or 2.0 HP max-rated (Hayward sell sheet) |
| Motor | Permanent-magnet, totally enclosed fan-cooled (TEFC) |
| Pump seal | Viton® |
| Electrical | |
| Voltage | 115 V or 230 V, single-phase, 60 Hz (dual-voltage) |
| Branch circuit | 15 A at 230 V / 20 A at 115 V |
| Standby power | 3 W (ENERGY STAR test data) |
| Wiring | Field wired; side and rear conduit entry |
| Controls | |
| Built-in programming | 24-hour clock, 8 custom timers, 4 preset speeds, Quick Clean |
| Default preset speeds | 1,150 / 1,725 / 2,300 / 2,875 RPM (adjustable) |
| Control interface | Digital keypad, mounts in four positions on the pump or on a wall (up to 152 m / 500 ft of cable) |
| Automation | Software-compatible Hayward controls (RS-485), or third-party controls through relay inputs (18–30 V AC / 9–30 V DC) |
| Plumbing | |
| Union connections | 2 in × 2.5 in CPVC unions |
| Pump base | Second base included to match Pentair® WhisperFlo® height; base SPX3200SR (sold separately) for Sta-Rite® Max-E-Pro®, Max-E-Glas® and Dura-Glas® |
| Strainer | Extra-large no-rib basket, see-through cover |
| Dimensions & weight | |
| Overall length | 65.7 cm (25⅞ in) |
| Shipping dimensions | 42.2 × 36.3 × 78.7 cm (16.6 × 14.3 × 31 in) |
| Shipping weight | 25.5 kg (56.3 lb) |
| Certifications & compliance | |
| NSF | NSF certified (Hayward product page) |
| ENERGY STAR | Certified — SP32900VSP at 115 V and 230 V (EPA list) |
| U.S. DOE pool pump rule | Compliant (Hayward specifications) |
Before you buy
- Hayward specifies installation and service by a qualified professional. Connect the pump to a 15 A branch circuit on 230 V or a 20 A circuit on 115 V, with GFCI protection, and provide a disconnect at least 1.5 m (5 ft) from the inside wall of the pool.
- For Canadian installations, Hayward specifies a No. 6 AWG solid copper bonding conductor.
- Size your plumbing for the flow: Hayward recommends no more than 300 L/min (80 US gpm) on 2 in pipe, 415 L/min (110 US gpm) on 2.5 in and 600 L/min (160 US gpm) on 3 in, with a straight run of at least five pipe diameters before the pump inlet.
- There is no stand-alone phone app for this pump. App control requires a Hayward OmniLogic® controller (Omni app); otherwise you use the pump keypad.
- Hayward now lists SP32900VSPX1 (TriStar VS 900 with OmniX® and a new Universal Display) as the replacement SKU for SP32900VSP. Confirm which version will ship before ordering.
Need help sizing your pump or checking plumbing unions and electrical supply? Request a product quote or see the manufacturer documents below.
Frequently asked questions
What is the capacity of the strainer basket?
The pump features an oversized, seamless no-rib strainer basket that holds substantial leaf and debris volume and includes a clear see-through Lexan cover with quick-release handles.
How do I winterize the Hayward TriStar VS pump?
Turn off electrical power at the breaker panel. Unscrew and remove the two drain plugs on the pump volute housing, store the drain plugs in the strainer basket, and drain all connecting pipe lines.
Documents
- Owner's manual — Hayward 2.70 THP VS pump family incl. TriStar VS 900 (1011786 Rev B) (PDF)

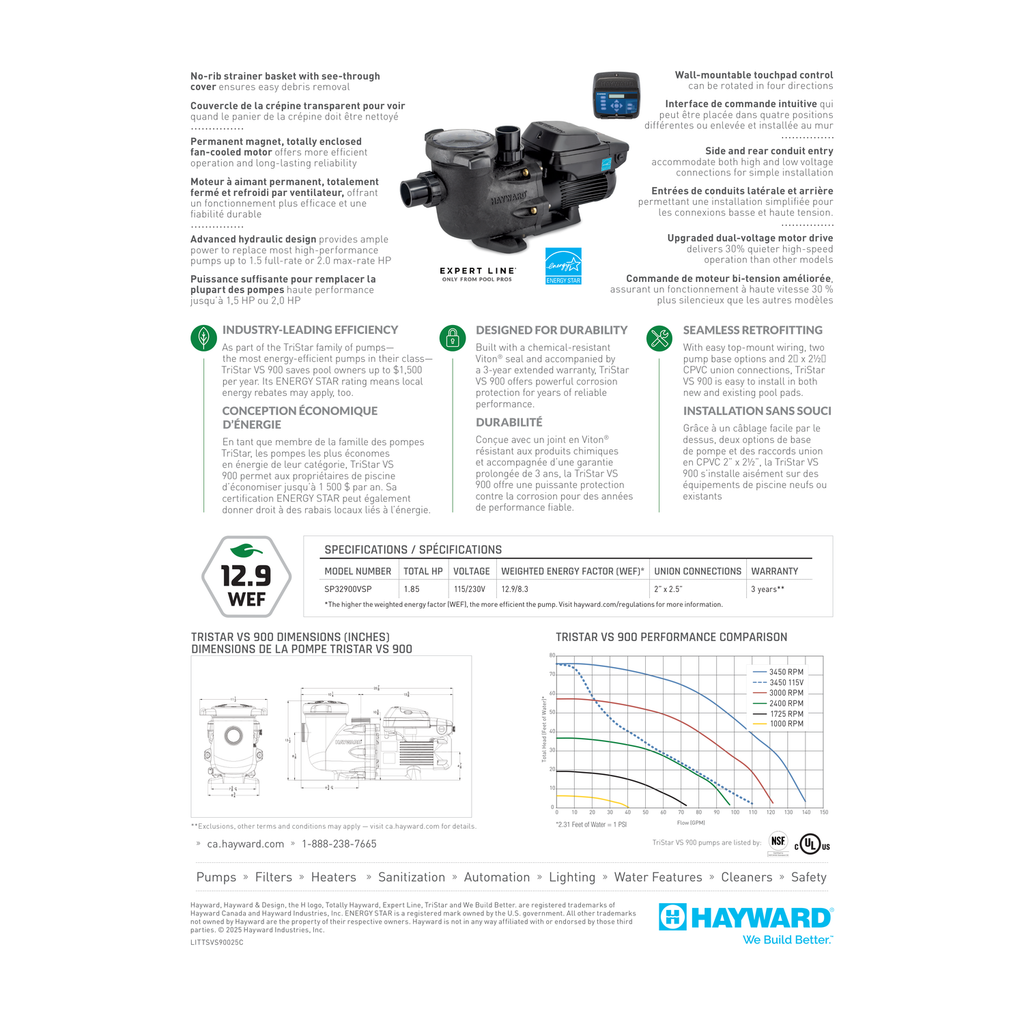

- Sell sheet with specifications and dimensions — TriStar VS 900 (English/French) (PDF)
- Pump performance curves — TriStar VS 900 and VS 950 (PDF)
- Quick reference guide — Hayward variable speed pump programming (PDF)
Specifications from Hayward's 2.70 THP VS Pump Family owner's manual (1011786 Rev B), the TriStar VS 900 bilingual sell sheet (LITTSVS90025C), the SP32900VSP product pages on ca.hayward.com and hayward.com (including Hayward Support's published flow answer), and the U.S. EPA ENERGY STAR certified pool pump list. Specifications are subject to change by the manufacturer. View the Hayward TriStar VS 900 sell sheet (PDF).
Installation & Safety Notice: High-performance pool pumps must be installed and wired by a qualified pool technician or licensed electrician in compliance with Hayward electrical guidelines and Ontario electrical safety standards.
