The premier smart salt chlorination system from Pentair, bundled complete with the external Power Center. IntelliChlor uses natural table salt to produce all the chlorine your pool needs, safely, effectively, and automatically. Features full push-button operation, two-color status displays, and full automation connectivity to Pentair IntelliTouch® and EasyTouch® control systems.
Technical specifications
| Warranty | Standard Warranty – 1 Year Minimum Inground products purchased from a retail store (brick & mortar), pool builder, or pool service company receive a minimum of one-year parts and labor warranty when professionally installed. Source: Pentair warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features
- Complete bundle with Power Center — includes both the genuine Pentair electrolytic cell and the high-efficiency external Power Center enclosure.
- On-cell diagnostic display — monitor salt level, cell cleanliness, sanitizer output percentage, and water flow directly on the cell housing.
- Automatic reverse polarity — self-cleaning titanium plates prevent calcium buildup for long operating life.
- Automatic cold-water shutoff — protects the cell and extends life by shutting off operation when water temperatures drop below 11 °C (52 °F).
- Seamless Pentair automation — communicates directly with Pentair automation panels for remote adjustments via your smartphone.
Specifications
| Brand | Pentair |
|---|---|
| Series | IntelliChlor Complete Bundle |
| Product type | Electrolytic salt chlorination system with Power Center |
| Operating salinity | 3,000 to 4,500 PPM (Nominal: 3,400 PPM) |
| IC20 capacity (520910) | Produces up to 0.70 lb chlorine/day • Pools up to 20,000 gal (75,000 L) |
| IC40 capacity (520911) | Produces up to 1.40 lb chlorine/day • Pools up to 40,000 gal (150,000 L) |
| IC60 capacity (520912) | Produces up to 2.00 lb chlorine/day • Pools up to 60,000 gal (227,000 L) |
| Power Center input | 120V / 240V, 50/60 Hz field-convertible |
| Plumbing union size | 2 in slip unions |
Before you buy
- Sizing recommendation: Industry standard recommends selecting a cell rated for 1.5× to 2× your pool's actual volume to prolong cell lifespan and handle hot Ontario summers.
- Initial salt balance: Verify existing salinity with a calibrated digital tester before adding salt.
- Winterization: Remove cell, replace with Pentair dummy cell pipe (spacer), and store indoors over winter.
Documents
Frequently asked questions
What is included in the Pentair IntelliChlor Complete Bundle?

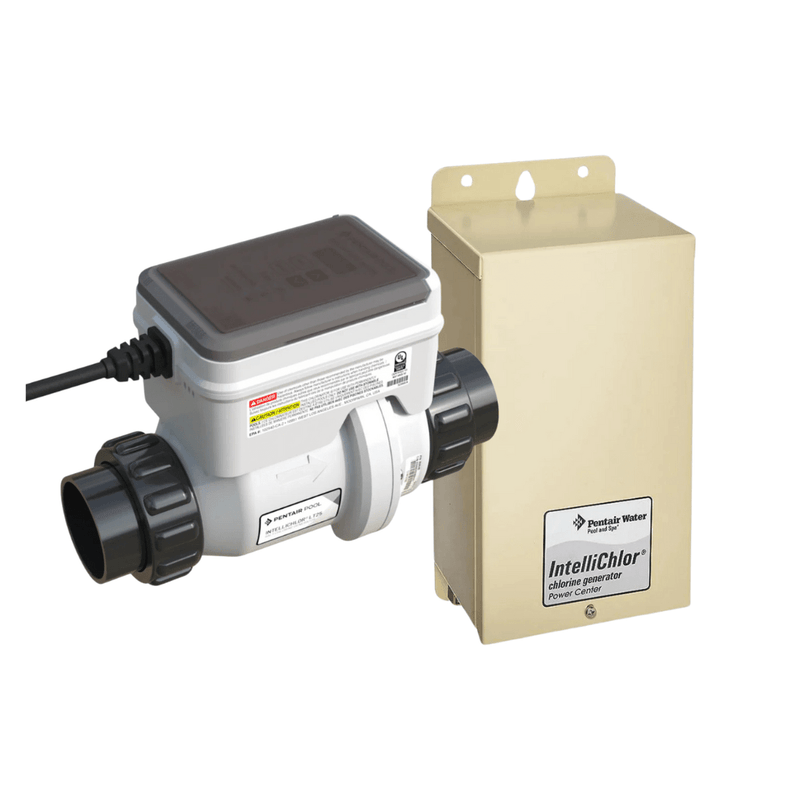

The Complete Bundle includes the genuine Pentair IntelliChlor electrolytic cell (IC20, IC40, or IC60 model), 2-inch union connectors, the external multi-voltage Power Center enclosure (120V/240V), and integrated communication cabling for standalone or automated operation.
Which IntelliChlor cell size should I choose for an Ontario pool?
Standard industry sizing recommends sizing 1.5 to 2 times above actual pool volume for optimal cell longevity. Select the IC20 for pools up to 20,000 gallons (75,000 L), the IC40 for pools up to 40,000 gallons (150,000 L), and the IC60 for pools up to 60,000 gallons (227,000 L).
What is the automatic cold water shutoff feature?
The IntelliChlor cell features an internal temperature sensor that automatically ceases chlorine generation when water temperatures drop below 11 °C (52 °F). This protects the ruthenium-coated plates from accelerated wear in cold water while the LED indicator signals low temperature.
How does the IntelliChlor connect with pool automation systems?
IntelliChlor communicates via standard RS-485 four-wire connection directly to Pentair IntelliTouch, EasyTouch, and IntelliCenter automation control systems, allowing you to monitor salinity and adjust sanitizing output from indoor wall panels or mobile apps.
Specifications from Pentair Water Pool and Spa technical documentation.

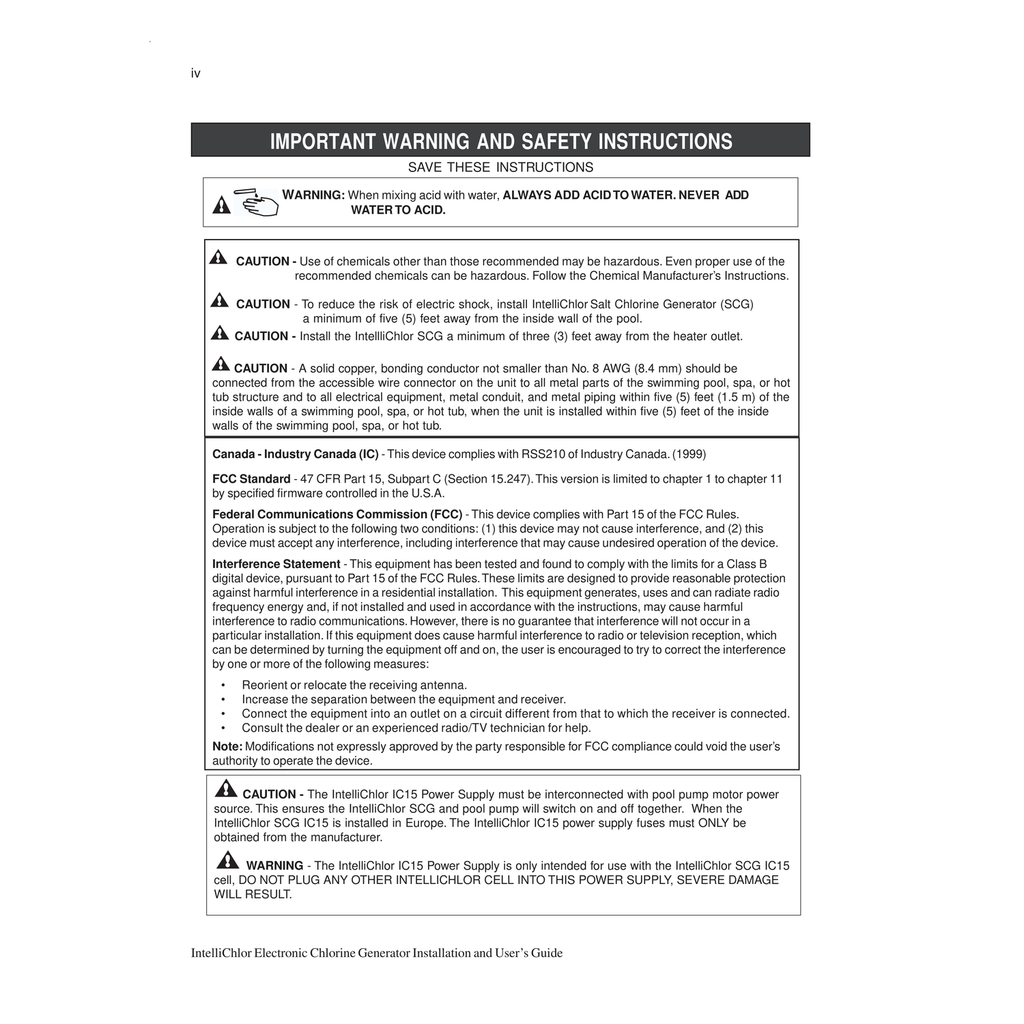

Installation & Safety Notice: Salt chlorination systems and power centers must be wired by a licensed electrical contractor and plumbed according to Pentair installation instructions and local pool electrical codes.
