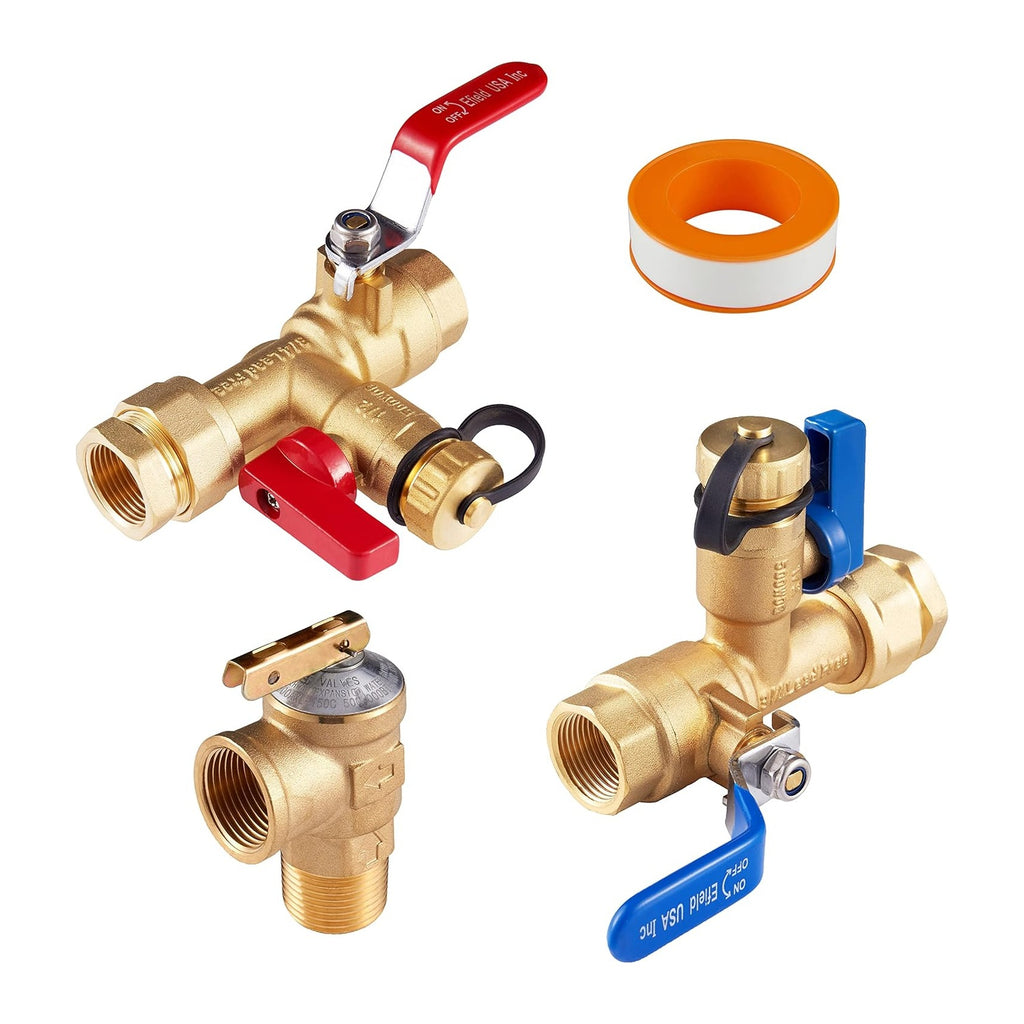

The Efield 3/4" NPT Tankless Water Heater Service & Isolation Valve Kit provides a complete, professional-grade solution for installing, isolating, and descaling residential and commercial tankless water heaters. Engineered with heavy-duty forged lead-free brass, this comprehensive kit features colour-coded 1/4-turn full-port ball valves for hot and cold lines, integrated high-flow drain/purge ports with tethered brass safety caps, and an included 150 PSI / 200,000 BTU pressure relief valve.
Key features
- Complete Service & Isolation Set: Includes dedicated hot (red handle) and cold (blue handle) 1/4-turn ball valves with large union connections for simplified servicing and rapid pump disconnects.
- Full-Port High Flow Design: 500 WOG rated ball valves deliver unobstructed water flow, preventing pressure drop across high-demand tankless units.
- Integrated Flush & Purge Ports: Built-in 3/4" male hose thread (GHT) auxiliary drain ports allow direct connection of standard descaling pump hoses without disassembling system piping.
- CSA Certified Pressure Relief Valve: Bundled with an ANSI Z21.22 / CSA 4.4 approved 3/4" 150 PSI, 200,000 BTU/hr temperature and pressure relief valve (PRV).
- Potable Water Safe & Lead-Free: Manufactured from premium dezincification-resistant forged brass meeting NSF/ANSI 61 and NSF/ANSI 372 lead-free drinking water standards.

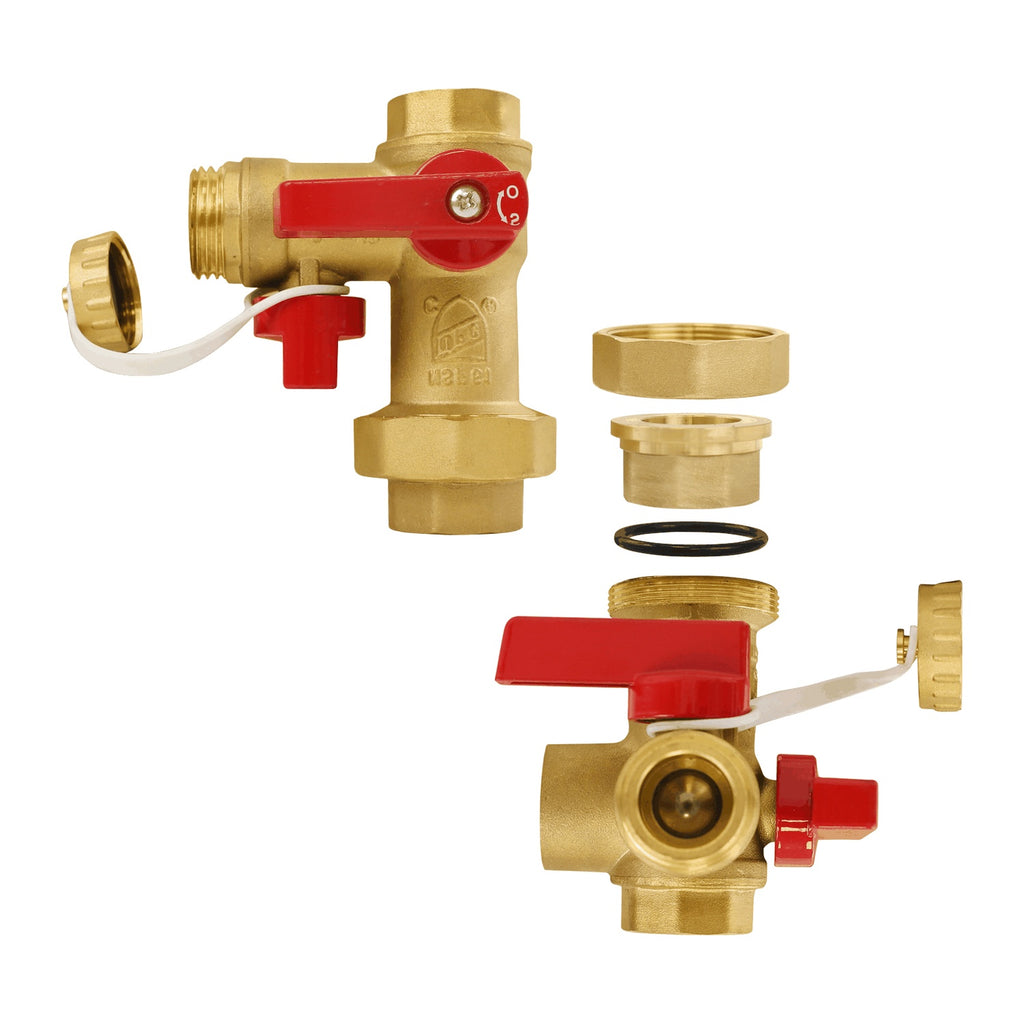

- Heavy-Duty Brass Drain Caps: Durable brass caps with rubber sealing washers and retaining straps prevent accidental drips and protect purge threads during normal operation.
Specifications
| Brand | Efield |
|---|---|
| Manufacturer Part Number (MPN) | TOOL028 |
| Product Type | Tankless Water Heater Service Valve Kit |
| Primary Inlet Connection | 3/4" Female NPT (National Pipe Tapered) |

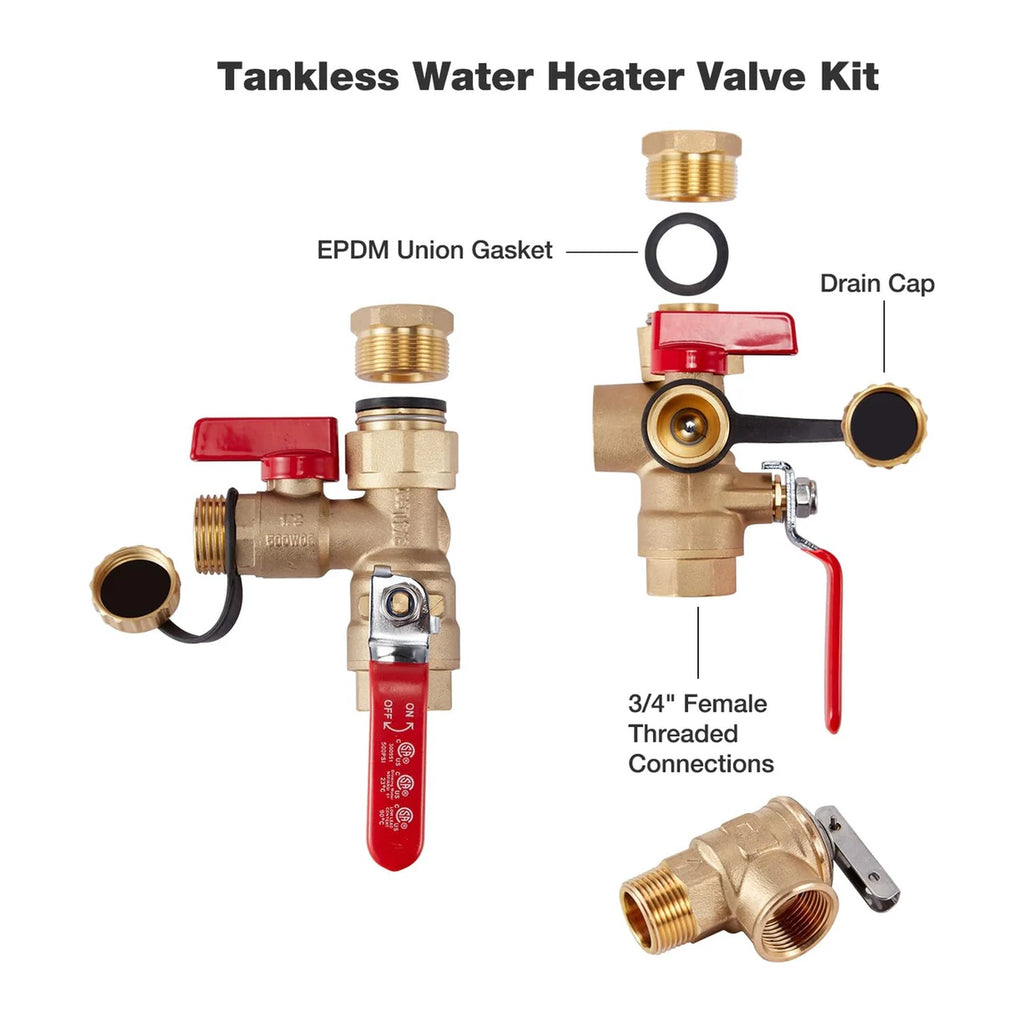

| Heater Union Connection | 3/4" Female NPT with captive EPDM union washer |
| Purge / Drain Connection | 3/4" Male Garden Hose Thread (GHT) with brass cap |
| Pressure Relief Valve (PRV) Port | 3/4" Female NPT dedicated relief tap |
| Pressure Relief Valve Rating | 150 PSI / 200,000 BTU/hr (CSA Certified) |
| Valve Pressure Rating | 500 WOG (Water, Oil, Gas) |
| Body Material | Heavy-duty forged lead-free brass |
| Seals & Gaskets | PTFE ball seats, EPDM union gaskets |
| Compliance & Certifications | cUPC Listed, CSA Certified (ANSI Z21.22 / CSA 4.4), NSF/ANSI 61, NSF/ANSI 372 Lead-Free |
| Compatibility | Universal fit for all 3/4" NPT gas and electric tankless water heaters (Navien, Rheem, Rinnai, Bosch, Bradford White, etc.) |
Before you buy
- Verify that your tankless water heater water connections are 3/4" NPT (the standard connection size for almost all residential and light commercial tankless water heaters in North America).
- Standard annual maintenance requires flushing the heat exchanger with a mild descaling solution (food-grade citric acid or white vinegar) via the integrated purge valves to preserve efficiency and maintain manufacturer heat exchanger warranty.
- Thread sealant (Teflon tape or approved pipe dope) must be applied to all male NPT pipe threads; union and hose drain connections use internal gaskets and do not require thread tape.
