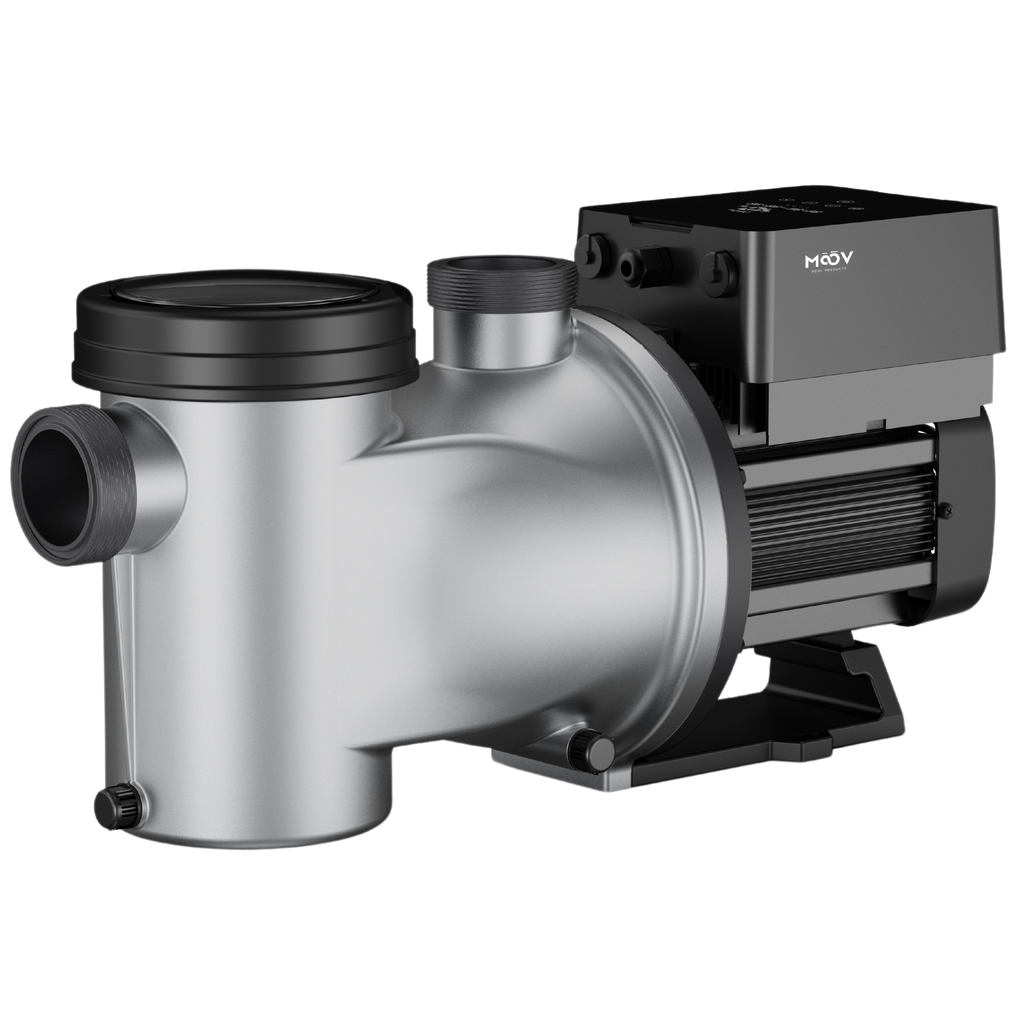

A quiet, ENERGY STAR certified inverter pool pump that adjusts its own speed to hold your flow. The Moov Ai is a variable-speed, self-priming pool pump from Moov Pool Products, made in 1.25, 1.65 and 2.00 THP sizes. Run it at a set speed from 30% to 120%, or switch to Auto-Inverter (Pro) mode and it adjusts motor speed to keep your chosen flow rate as pipeline pressure changes. Wi-Fi control and a live power reading are built in.
Technical specifications
| Pump Type | Variable Speed |
|---|---|
| Warranty | Parts and labor warranty 3 years Please note that the warranty begins at the time of purchase. Source: Moov warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
Key features
- Inverter variable-speed motor — speed set from 30% to 120% in 5% steps; the 105–120% range helps against high pipeline pressure.
- Auto-Inverter (Pro) mode — set a target flow and the pump detects system pressure and adjusts its speed, for example as the filter loads up. The MP2AI also runs a 180-second self-learning routine to map your plumbing.
- Wi-Fi control and real-time power use — adjust speed or flow, timers and backwash from your phone, and see current power consumption on the display and in the app.
- Automatic self-priming — primes at each start (can be turned off) and can be installed up to 2 m (6.56 ft) above water level, with no-water and loss-of-prime protection.
- Built-in scheduling and automation inputs — four daily timers, backwash and skimmer functions, three digital speed inputs and RS485 (Modbus) for pool automation systems.
- Salt-pool ready and quiet — suitable for salt concentrations up to 3.5% (35 g/L); Moov publishes a sound level of 36 dB(A).
Choosing a model
The MP15AIDV and MP165AIDV are dual-voltage and run on 115 V or 230 V; on 115 V their maximum flow is lower (see the table). The MP2AI runs on 220–240 V only and is the largest of the three.
Specifications
General
| Brand | Moov Pool Products |
|---|---|
| Series | Moov Ai inverter pool pump |
| Model numbers | MP15AIDV, MP165AIDV, MP2AI |
| Product type | Self-priming variable-speed (inverter) pool filter pump |
| Application | Permanently installed in-ground or above-ground pools; hot tubs and spas with water under 50 °C |
Performance
| Specification | MP15AIDV | MP165AIDV | MP2AI |
|---|---|---|---|
| Total horsepower | 1.25 THP | 1.65 THP | 2.00 THP |
| Maximum flow at 230 V | 27.9 m³/h (123 US gpm) | 31.1 m³/h (137 US gpm) | 40.4 m³/h (178 US gpm) |
| Maximum flow at 115 V | 25.0 m³/h (110 US gpm) | 28.2 m³/h (124 US gpm) | Not available on 115 V |
| Maximum head | 20.1 m (66 ft) | 21.0 m (69 ft) | 22.9 m (75 ft) |
| Auto-Inverter flow range (default) | 7.9–25.0 m³/h (35–110 US gpm) | 7.9–29.5 m³/h (35–130 US gpm) | 7.9–36.3 m³/h (35–160 US gpm) |
| Speed control | 30–120% | 30–120% | 30–120% |
| Weighted energy factor (WEF), 230 V / 115 V | 11.16 / 12.11 kgal/kWh | 9.78 / 11.39 kgal/kWh | 8.36 kgal/kWh (230 V) |
Electrical
| Specification | MP15AIDV | MP165AIDV | MP2AI |
|---|---|---|---|
| Voltage | 115 V or 230 V | 115 V or 230 V | 220–240 V |
| Current | 8.3 A at 115 V / 5.2 A at 230 V | 9.6 A at 115 V / 6.5 A at 230 V | 8.0 A |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Motor protection | IP55, insulation class F |
|---|---|
| Controls | Touch panel with 4 timers, backwash and skimmer modes; Wi-Fi (2.4 GHz); 3 digital speed inputs; RS485 (Modbus) |
Operating conditions
| Ambient temperature | −10 °C to 42 °C (14 °F to 107.6 °F) |
|---|---|
| Maximum water temperature | 50 °C (122 °F) |
| Salt pools | Up to 3.5% salt (35 g/L) |
| Maximum height above water level | 2 m (6.56 ft) |
| Sound level (published by Moov) | 36 dB(A) |
Plumbing connections
| Pump body thread | G2" (internal and external thread) |
|---|---|
| Union size | 1.5 in or 2 in (metric 48.3 or 60.3 mm); union kit supplied |
| Recommended pipe size | 2 in, suction and return |
Dimensions
| Overall (L × W × H) | 597 × 254 × 294 mm (23.5 × 10.0 × 11.6 in) |
|---|---|
| Inlet centre height | 197 mm (7.8 in) |
| Discharge height | 286 mm (11.3 in) |
Certifications
| ENERGY STAR | Certified — MP15AIDV and MP165AIDV (115 V and 230 V) and MP2AI, markets United States and Canada |
|---|
Before you buy
- Connect only to a circuit protected by a Class A ground-fault circuit interrupter (GFCI). A solid copper bonding conductor of at least 8 AWG is required when the motor is within 1.5 m (5 ft) of the pool, and the pump must be at least 1.8 m (6 ft) from the inside walls of the pool. Do not use an extension cord.
- For permanently installed pools only; Moov does not recommend it for storable pools that are taken apart for the winter.
- Mount the pump horizontally in a dry, ventilated spot with 150 mm (5.9 in) of clearance. Keep elbows at least 350 mm (13.8 in) from the inlet and use the supplied union kit.
- Winterizing: drain the pump and strainer housing, disconnect both unions, and store the pump indoors or cover it.
- Wi-Fi control needs a 2.4 GHz network. Moov specifies installation by an appropriate technician, such as an electrician.
- Pump sizing depends on pool volume, pipe runs and filter. Moov recommends confirming the model with a pool professional.
Not sure which size fits your pool? Request a quote and we will confirm the right model, pricing and availability.
Frequently asked questions
How much energy can the Moov Ai pump save?
Running the pump at low RPM during extended daily filtration schedules can reduce electrical energy use by up to 85% compared to single-speed induction pool pumps.
How is the strainer basket inspected and cleaned?
The pump features a transparent twist-lock lid that allows easy visual inspection of debris, with a large-capacity removable filter basket.
What is the winterization procedure for the Moov Ai pump?
Shut off the electrical breaker. Remove the drainage plugs at the base of the wet end, disconnect the 2-inch union nuts, empty all water, and store the unit in a frost-free area or blow lines dry.
Documents

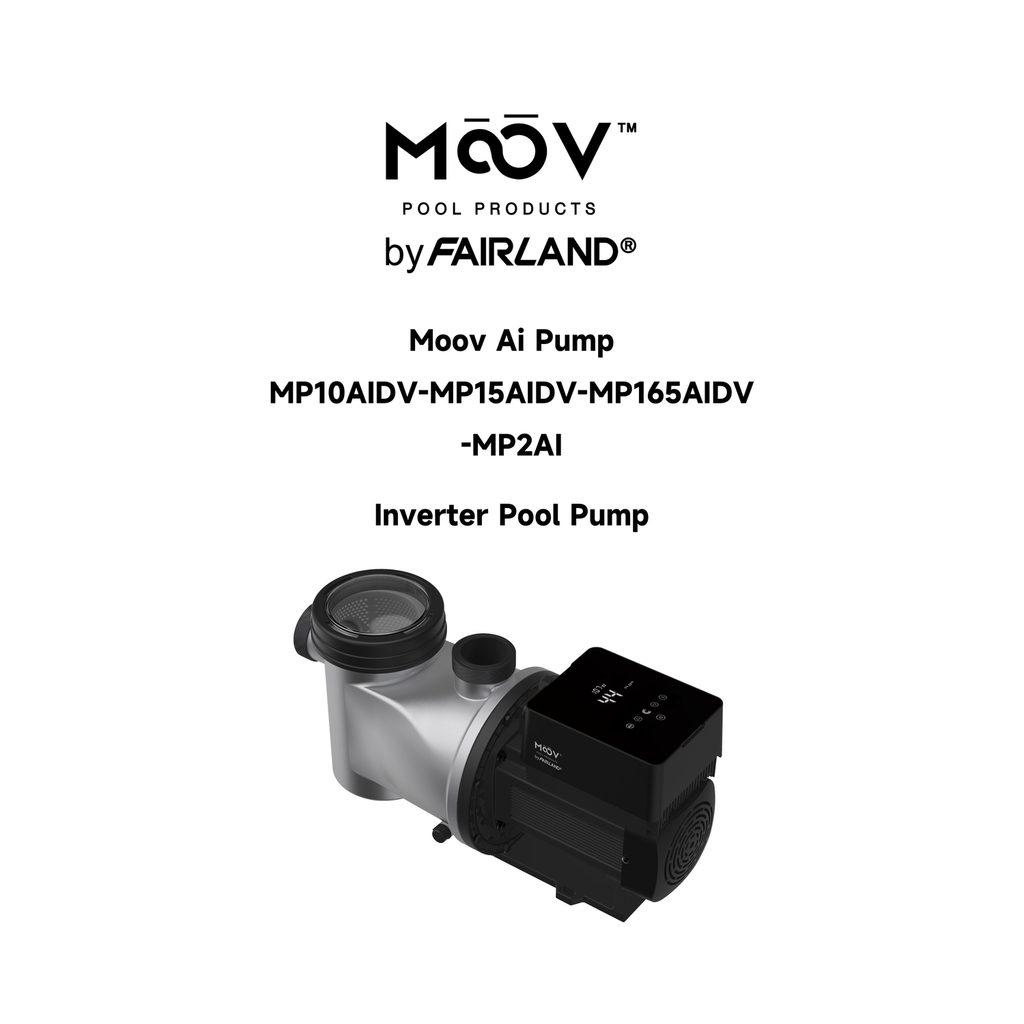

Specifications from the Moov Ai inverter pool pump installation and user manual (AG110-DC3B-06) and the Moov Ai product page; sound level from the Moov Ai brochure (March 2026); weighted energy factor and certification from the ENERGY STAR certified pool pumps list. Specifications are subject to change by the manufacturer. View the Moov Ai manual (PDF).
Installation & Safety Notice: Inverter pool pumps require proper electrical bonding and plumbing by a qualified pool installer in accordance with manufacturer specifications and local pool electrical codes.
