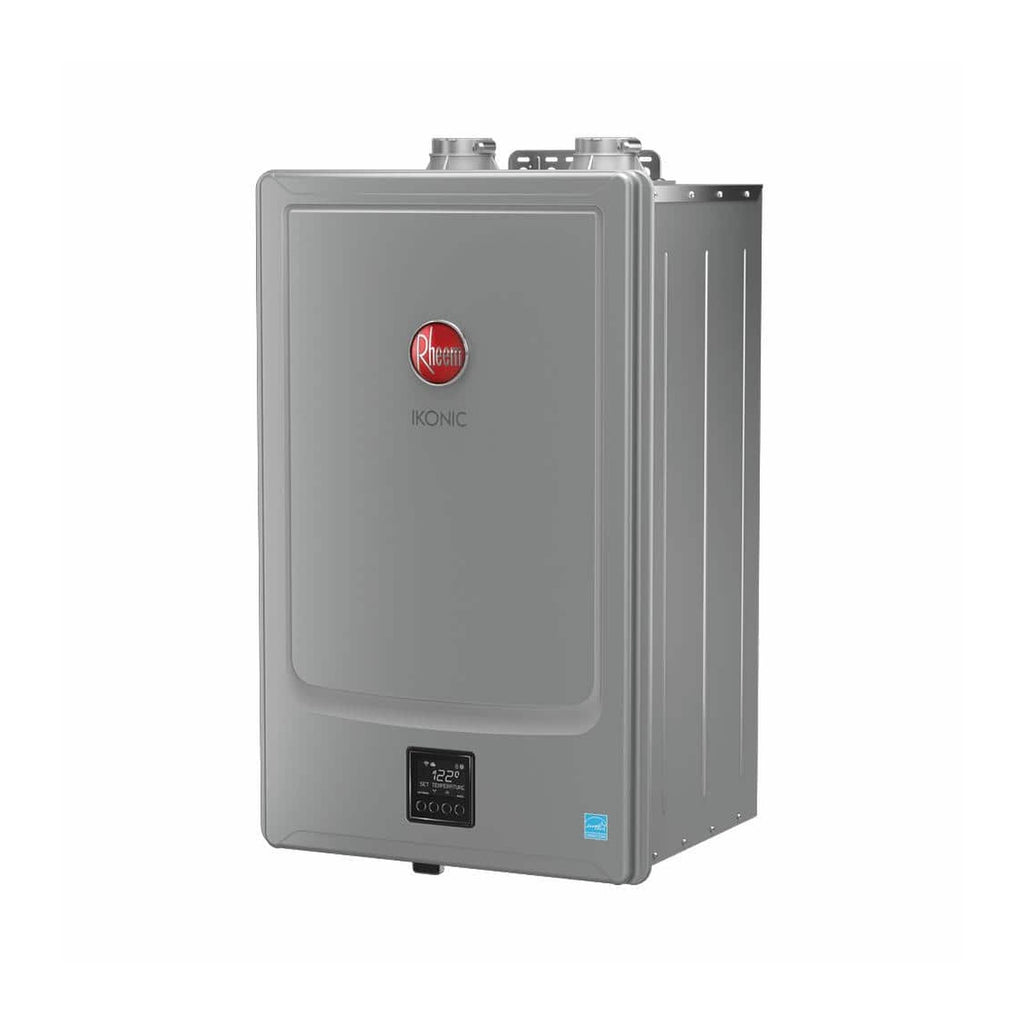

The premier ultra-high-efficiency condensing tankless water heater engineered for continuous, on-demand hot water and built-in smart home control. Delivering up to 11.0 GPM max flow (41.6 L/min) at an industry-leading 0.96 Uniform Energy Factor (UEF), the Rheem IKONIC™ platform combines dual commercial-grade stainless steel heat exchangers, Hot Start Programming™, and integrated EcoNet® Wi-Fi for dependable performance through demanding Canadian winters.
Technical specifications
| Warranty | 15 Year Heat Exchanger - (w/ registration) 12 Year Heat Exchanger - (w/o registration) 5-Year Parts 1-Year Labor Source: Rheem warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
|---|
Key features

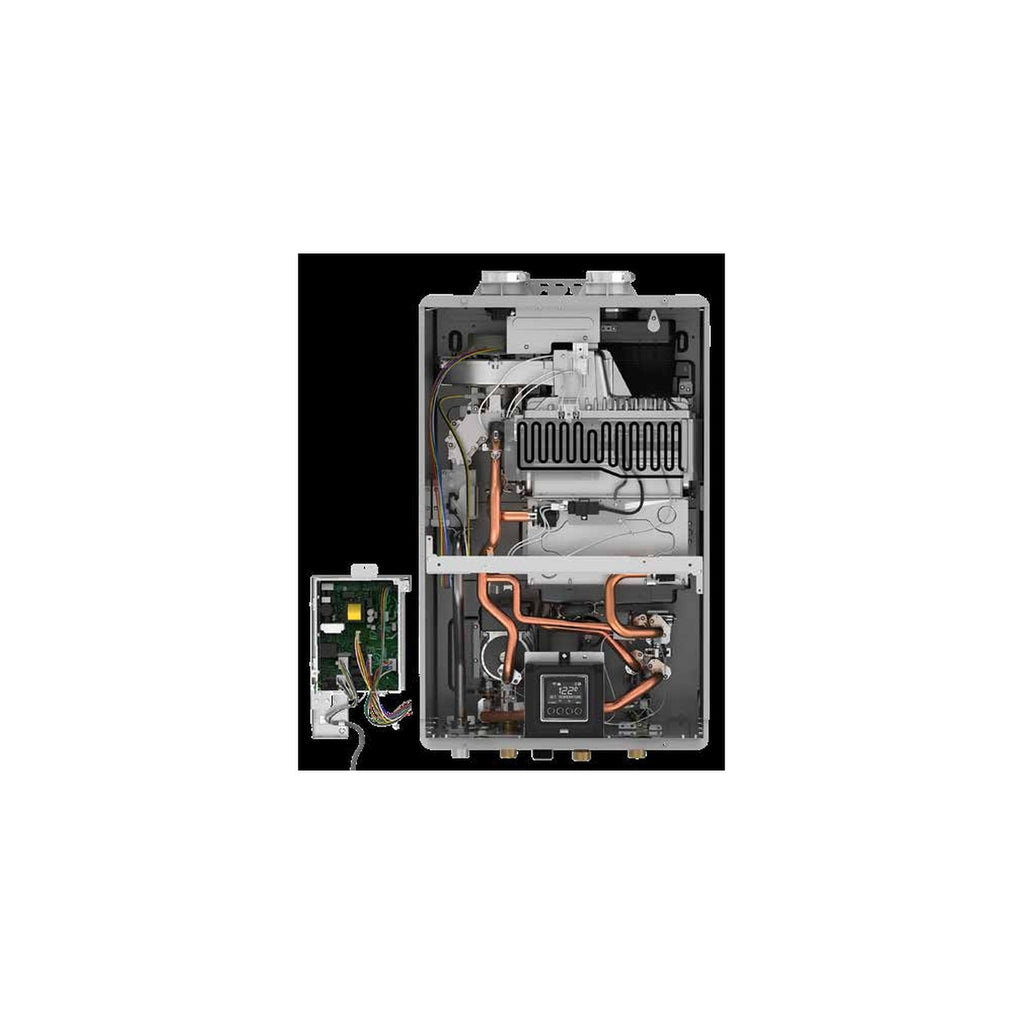

- 0.96 UEF condensing efficiency — dual commercial-grade stainless steel heat exchangers extract maximum latent heat from combustion exhaust, cutting natural gas consumption by up to 36% compared to standard tanks.
- Hot Start Programming™ — intelligent pre-warming eliminates cold water bursts during back-to-back household usage.
- High continuous flow capacity — 199,900 BTU/h modulating burner delivers up to 11.0 GPM max flow, sustaining a steady 5.3 GPM continuous output during steep 70 °F (39 °C) winter temperature rises.
- Built-in EcoNet® Wi-Fi — monitor performance, receive proactive maintenance alerts, adjust temperature down to the degree, and track energy usage directly from your smartphone.
- Flexible 2-inch and 3-inch PVC venting — certified for venting runs up to 60 ft with 2-inch pipe or up to 150 ft with 3-inch Schedule 40 PVC, CPVC, or polypropylene.
- Compact space-saving wall mount — lightweight design frees up valuable basement floor space and includes a quick-hang bracket for straightforward installation.
How the Rheem IKONIC™ condensing tankless works
Specifications
| Brand | Rheem |
|---|---|
| Series | IKONIC™ Super High Efficiency Condensing |
| Product type | Indoor condensing tankless gas water heater |
| Maximum gas input | 199,900 BTU/h (58.6 kW) |
| Minimum gas input | 11,000 BTU/h (3.2 kW) |
| Uniform Energy Factor (UEF) | 0.96 |
| Maximum flow rate | 11.0 GPM (41.6 L/min) |
| Continuous flow at 70 °F (39 °C) rise | 5.3 GPM (20.1 L/min) |
| Heat exchangers | Dual commercial-grade stainless steel |
| Turndown ratio | 18:1 intelligent modulating burner |
| Connectivity | Integrated EcoNet® Wi-Fi |
| Venting diameter & max length | 2 in (up to 60 ft) / 3 in (up to 150 ft) PVC/CPVC/PP |
| Dimensions (H × W × D) | 27.5 × 17.75 × 11.25 in (69.9 × 45.1 × 28.6 cm) |
| Unit weight | 58 lb (26.3 kg) |
Before you buy
- Gas service verification: Confirm incoming gas supply and meter flow capacity for 199,900 BTU/h under Canadian gas code CSA B149.1; compatible with 1/2-inch lines up to 24 ft.
- Groundwater temperatures: In Ontario, winter groundwater cools to 4 °C (40 °F). At an 80 °F rise to 120 °F, continuous delivery is 4.7 GPM, effortlessly running 2 simultaneous high-flow showers.
- Venting compliance: Must be vented directly outside using certified ULC S636 PVC, CPVC, or polypropylene pipe with appropriate exterior snow clearances.
- Condensate line: Requires a dedicated drain line with an inline condensate neutralizer kit.
Documents
- Specification sheet — Rheem IKONIC Super High Efficiency Condensing (PDF)
- Venting and installation guide — Rheem High Efficiency Gas (PDF)
Specifications from Rheem technical engineering documentation. Subject to manufacturer revisions.
