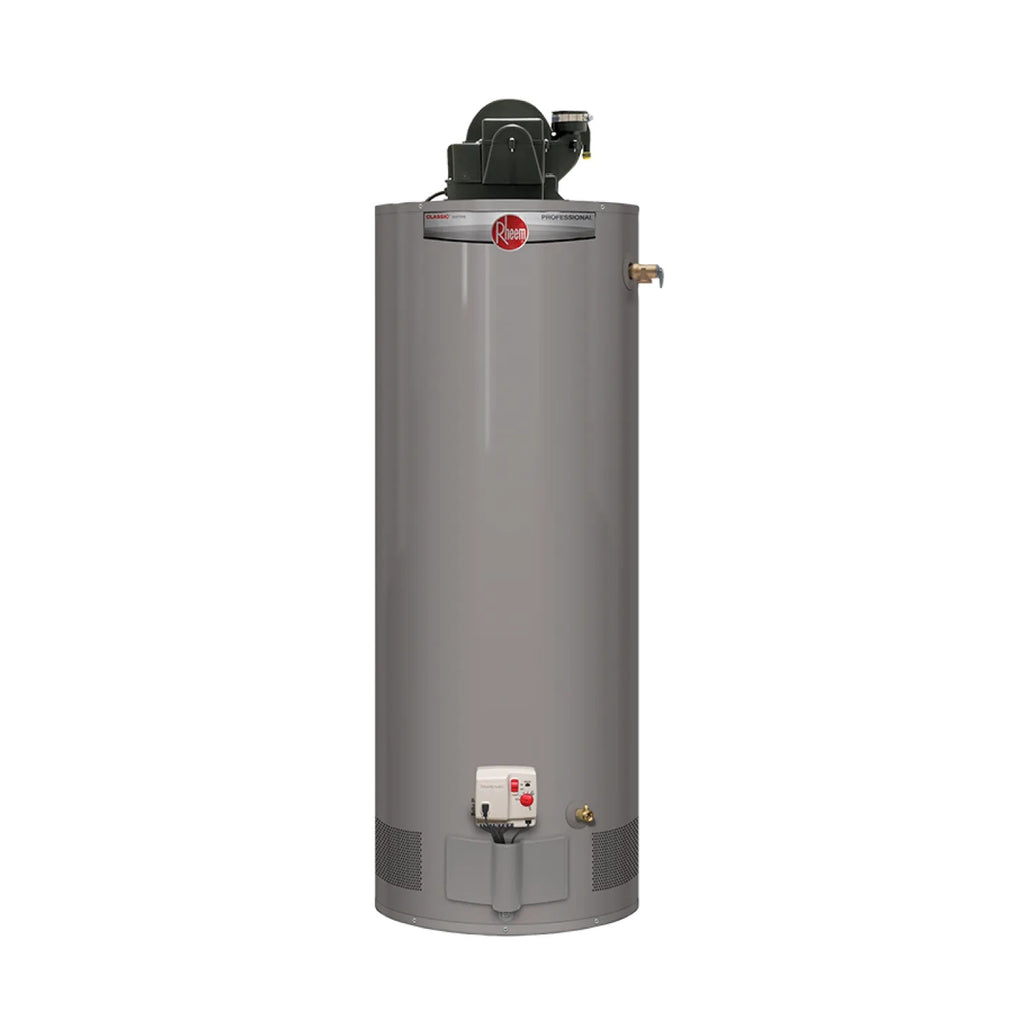

The trusted #1 replacement power vent gas tank water heater for Canadian homes without vertical chimney access. Featuring a whisper-quiet motorized blower that exhausts combustion gases through an exterior wall, Honeywell electronic thermostat self-diagnostics, and EverKleen™ self-cleaning dip tube technology, the Rheem Performance Power Vent series provides dependable high-capacity domestic hot water year after year.
Key features

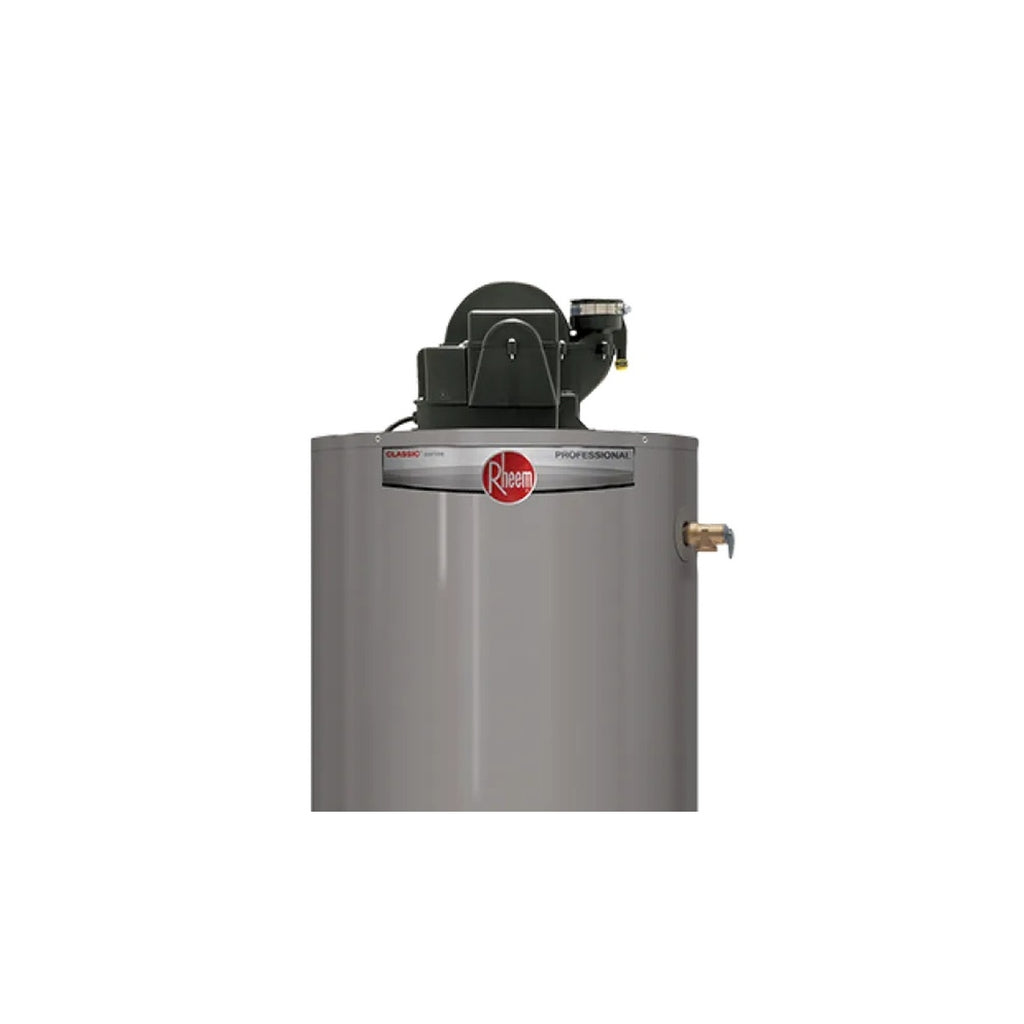

- Quiet, powerful side-wall venting — heavy-duty motorized draft blower exhausts through standard 2-inch or 3-inch PVC, ABS, or CPVC piping horizontally through an exterior wall or vertically through the roof.

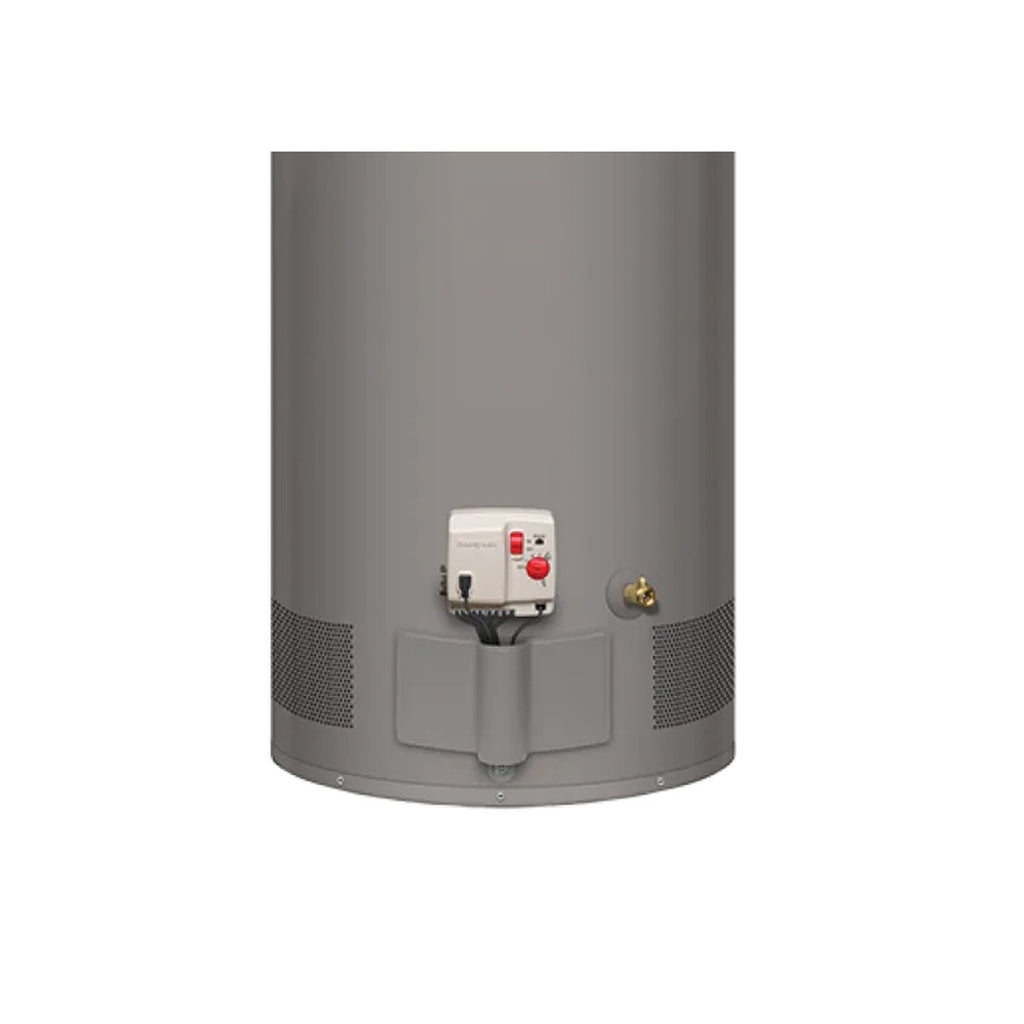

- Honeywell electronic gas control valve — self-diagnostic status LED indicator provides immediate operational feedback without a standing pilot light, improving efficiency.
- Guardian System® FVIR technology — exclusive air filtration system resists flammable vapor ignition with zero maintenance required.
- EverKleen™ self-cleaning system — swirling water stream fights sediment and mineral buildup at the base of the tank to prolong service life and maintain high heat transfer efficiency.
- Premium anode rod protection — high-grade magnesium anode rod shields inner glass-lined steel tank from corrosive municipal water conditions.
- Low NOx eco-friendly burner — engineered to meet strict environmental emission standards while delivering rapid recovery.
Specifications
| Brand | Rheem |
|---|---|
| Series | Performance Power Vent High Efficiency |
| Product type | Power-vented storage tank gas water heater |
| Gas input (40 & 50 Gal / 60 Gal) | 40,000 BTU/h / 55,000 BTU/h |
| First Hour Rating (FHR - 50 Gal) | 86 US Gallons (326 L) |
| Uniform Energy Factor (UEF) | 0.68 - 0.70 |
| Venting material & size | 2 in (up to 40 ft) or 3 in (up to 100 ft) PVC, ABS, CPVC |
| Gas control valve | Honeywell electronic with diagnostic LED |
| Electrical requirement | 120 V AC, 60 Hz, standard 15 A grounded outlet |
| Water connection size | 3/4 in NPT top inlet and outlet |
| Dimensions (50 Gal - H × Dia) | 58.25 × 21.75 in (148.0 × 55.2 cm) |
| Warranty | 6-year limited tank & parts warranty |
Before you buy
- Venting path: Confirm clear exterior wall penetration for 2-inch or 3-inch vent pipe with minimum 12-inch clearance above snow level.
- Electrical outlet: Requires a standard 120 V household electrical receptacle within 6 feet to power the draft inducer blower.
- Sizing recommendation: 40 Gallon suits 2–3 occupants; 50 Gallon is standard for 3–5 occupants; 60 Gallon accommodates large soaking tubs or 5+ occupants.
Documents
- Specification sheet — Rheem Power Vent Canadian Series (PDF)
- Use and care manual — Rheem Power Vent Gas Water Heaters (PDF)
Specifications from Rheem technical engineering documentation. Subject to manufacturer revisions.
Installation & Safety Notice: Gas water heaters must be installed and serviced by a licensed gas technician (TSSA certified in Ontario) in strict accordance with the manufacturer's installation instructions and local fuel safety codes.
