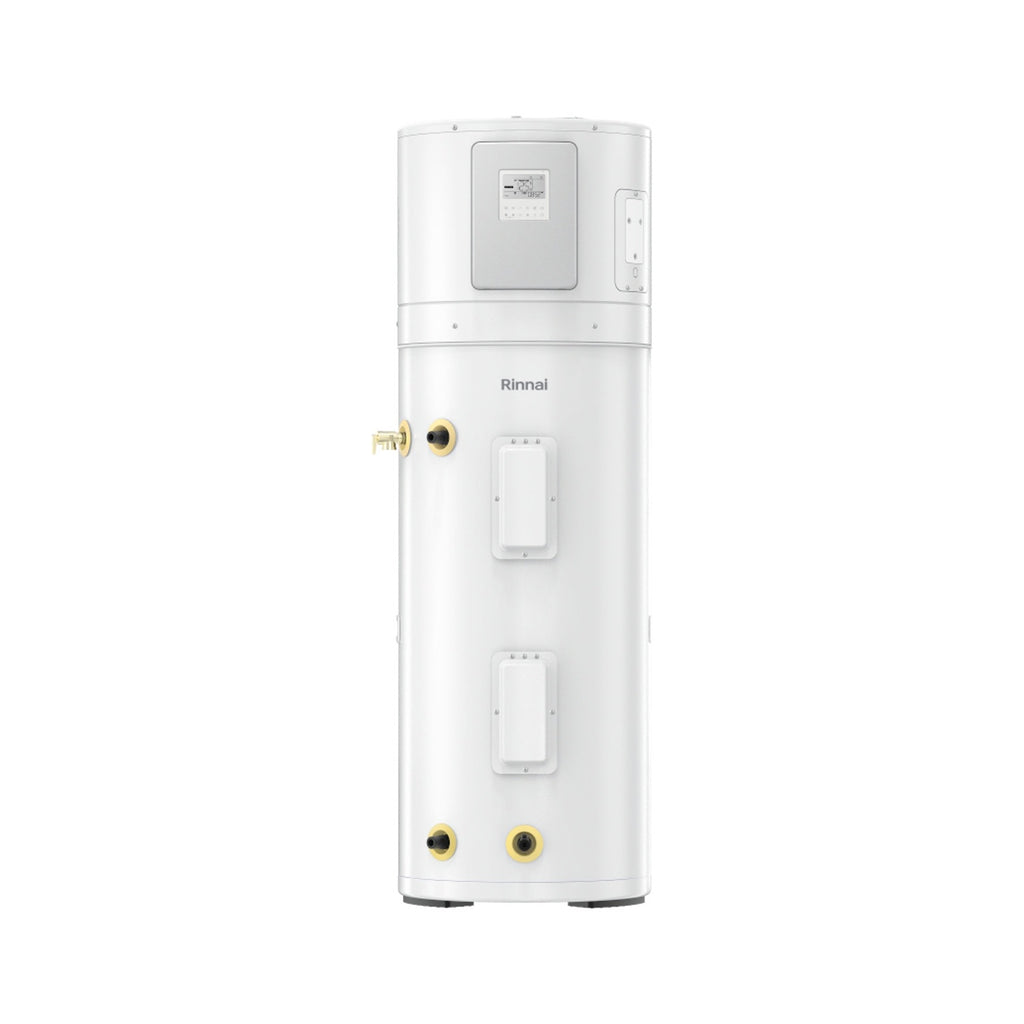

A super-high-efficiency 50-gallon (189 L) hybrid electric heat pump water heater designed to reduce residential water heating electricity consumption by up to 75%. Operating at an industry-leading 4.0 Uniform Energy Factor (UEF), the Rinnai REHP50C earns ENERGY STAR® Tier 4 certification and qualifies for highest-tier Canadian decarbonization incentives.
Technical specifications
| Heater Type | Tank (Storage) |
|---|---|
| Fuel Type | Electric |
| Warranty | Tank & All Other Parts & Components: 10 Years. Reasonable Labor: 1 Year. This Limited Warranty applies only to products that meet the requirements of a “qualified product installation” and are originally installed in the United States and Canada. Source: Rinnai warrantyWarranty is provided by the manufacturer under its own terms. See the source link for full details. |
Key features
- Up to 4.0 Uniform Energy Factor (UEF) — advanced heat pump compressor absorbs ambient thermal energy from surrounding basement air, transferring heat efficiently into stored water.
- Over 70% electricity savings — slashes annual electrical operating costs compared to standard electric resistance tank water heaters.
- Multiple operating modes — Heat Pump Only, Hybrid (Automatic), Electric High Demand, and Vacation mode to optimize efficiency based on household schedules.

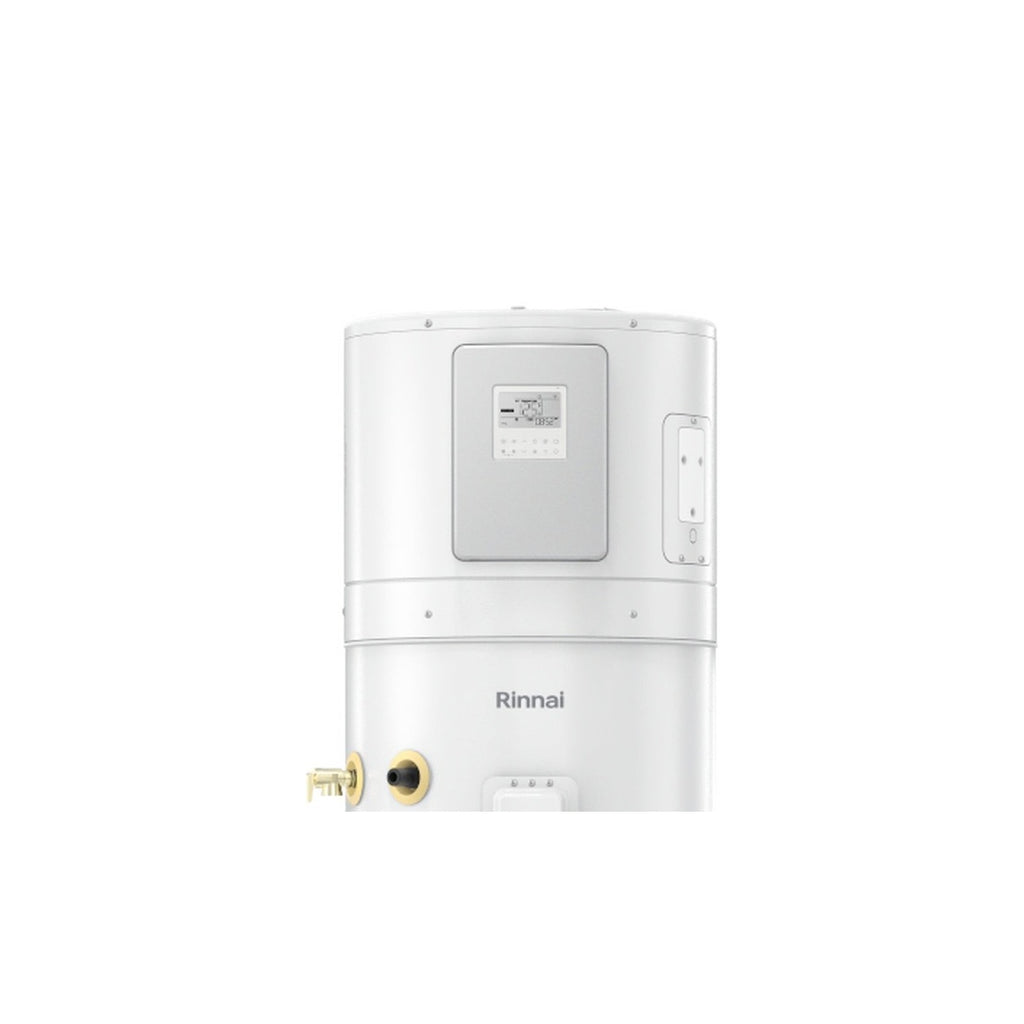

- Top duct collar connections — enables direct ducting to exterior or mechanical spaces to manage ambient cool air exhaust in Canadian basements.
- Whisper-quiet operation — compressor and fan operate at a gentle sound level below 49 dB(A).
- Heavy-duty tank construction — commercial-grade glass lining and dual backup electric heating elements ensure rapid recovery during peak hot water demand.
Specifications
| Brand | Rinnai |
|---|---|
| Series | REHP Series Hybrid Electric Heat Pump |
| Nominal storage capacity | 50 US Gallons (189 L) |
| Uniform Energy Factor (UEF) | 4.00 |
| First Hour Rating (FHR) | 65 US Gallons (246 L) |
| Compressor type | Inverter rotary heat pump compressor |
| Refrigerant | Eco-friendly R134a |
| Electrical requirement | 240 V AC, 1 Phase, 60 Hz, 30 A dedicated breaker |
| Operating ambient air temperature range | 2 °C to 43 °C (35 °F to 110 °F) |
| Operating sound level | ≤ 49 dB(A) |
| Dimensions (H × Dia) | 68.0 × 22.0 in (172.7 × 55.9 cm) |
| Approximate shipping weight | 196 lb (89 kg) |
Before you buy
- Electrical service: Requires a dedicated 240 V, 30 A electrical circuit from the main electrical panel.
- Installation space: Requires a minimum unconfined room volume of 700 cubic feet (approx. 10 ft × 10 ft with 7 ft ceiling) or top ducting to adjacent spaces for proper airflow.
- Condensate drainage: Dehumidifying action produces clear condensate; requires nearby gravity drain, laundry tub, or condensate removal pump.
Documents
- Specification sheet — Rinnai REHP Hybrid Heat Pump (PDF)
- Installation and operation manual — Rinnai REHP (PDF)
- Product brochure — Rinnai Canada REHP Series (PDF)
Specifications from Rinnai Canada technical documentation. Subject to manufacturer revisions.
Installation & Safety Notice: Hybrid electric heat pump water heaters require a dedicated 240V circuit and condensate drain. Installation must be performed by a qualified plumber and licensed electrical contractor.
