SPAN 32-circuit 200A intelligent electrical panel delivering circuit-level energy monitoring, automated load management, and seamless integration with solar, EV charging, and residential battery systems.
Key features
- Replaces standard residential electrical panels with 32 independently monitored and controllable branch circuits
- Built-in revenue-grade metering measures power consumption and generation on every individual circuit
- Dynamic load shedding automatically prioritizes critical household appliances during power outages
- Enables whole-home electrification (heat pumps, EV chargers, induction cooking) without costly utility service upgrades
- Direct integration with solar inverters and battery storage systems including Tesla Powerwall 3 and FranklinWH

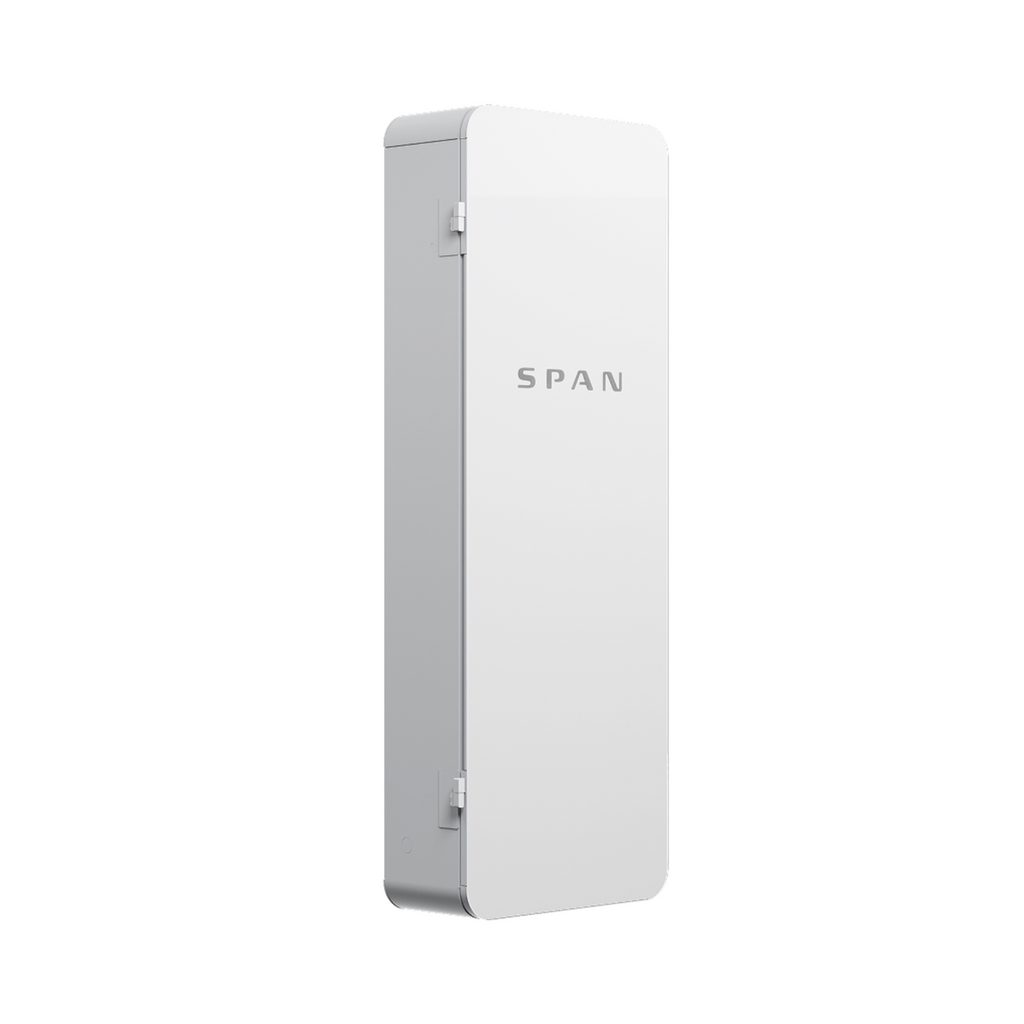

- NEMA 3R outdoor-rated powder-coated steel enclosure with sleek white tempered glass aesthetic finish
- Multi-path connectivity via Ethernet, 2.4/5 GHz Wi-Fi, Bluetooth, and built-in cellular (4G/LTE) backup
- Intuitive SPAN Home mobile application for real-time energy visualization, load prioritization, and notifications
Varieties & configurations
The SPAN Smart Electrical Panel is engineered in a standard 200A main breaker configuration for residential service:
- 32-Circuit 200A Main (1-00800-04): Designed for whole-home service installations, accommodating up to 32 controllable standard 1-inch branch circuits (up to 90A max per branch breaker) and dual-pole 240V circuits. Features a 225A busbar rating and supports top, bottom, and side conduit feed entries in new construction or retrofit panel replacements.
Specifications
| Specification | SPAN Panel MAIN 32 |
|---|---|
| Manufacturer model / SKU | 1-00800-04 |
| Product category | Smart Electrical Load Center |
| Nominal electrical service | 120/240 VAC, Split-phase, 60 Hz |
| Main breaker rating | 200 A (compatible with 100 A – 200 A main breakers) |
| Busbar continuous rating | 225 A |
| Controllable branch circuits | 32 circuits (90 A maximum per circuit) |
| Breaker compatibility | Standard 1-inch breakers (Square D Homeline, Eaton BR, Siemens QP) |
| Short circuit current rating (SCCR) | 22 kA with main breaker |
| Metering accuracy | Revenue-grade accuracy (±0.5% per ANSI C12.20) |
| Enclosure rating | NEMA 3R (Indoor and Outdoor rated) |
| Operating temperature range | -30°C to 50°C (-22°F to 122°F) |
| Mounting options | Surface mount or semi-flush mount (with optional trim kit) |
| Dimensions (H × W × D) | 998 × 362 × 153 mm (39.3 × 14.3 × 6.0 in.) |
| Unit weight | 46.5 kg (102.5 lb) |
| Communication protocols | Ethernet (RJ-45), Wi-Fi (802.11 b/g/n 2.4/5 GHz), Bluetooth Low Energy, 4G/LTE Cellular |
| Microgrid interconnection device (MID) | Built-in automatic islanding switch controller |
| Safety standards & certifications | UL 67, UL 916, UL 869A, CSA C22.2 No. 29, FCC Part 15 Class B |
Before you buy
- SPAN Panel installation involves working inside the main service entrance and must be performed by a licensed electrician in compliance with the Canadian Electrical Code (CEC) and local utility regulations.
- Ensure adequate wall stud spacing and clearance: the panel cabinet measures 14.3 inches wide and fits standard 16-inch on-center stud bays for semi-flush mounting.
- Verify that your utility meter and supply feed conductors are properly sized for 200A service disconnects.
- Check local permitting and inspection requirements before replacing an existing main disconnect panel.
Frequently asked questions
What makes the SPAN Smart Panel different from a traditional electrical panel?
The SPAN Panel replaces a standard 200 A electrical panel with intelligent solid-state switching that monitors power consumption down to the individual circuit level in real time and allows remote app-based circuit control from anywhere.
How many branch circuits does the SPAN 32-circuit panel support?
The SPAN Panel includes 32 controllable circuit spaces and accommodates standard standard-format 1-inch and tandem branch circuit breakers from Square D (QO, Homeline), Siemens, Eaton, and Leviton.
How does SPAN extend home battery backup run time?
When grid power drops, SPAN immediately sheds non-essential high-draw circuits (such as EV chargers, hot tubs, or guest rooms) and prioritizes critical loads (refrigeration, heat pumps, well pumps, Wi-Fi), extending battery backup duration by up to 40%.
What main service amperage ratings are supported?
The SPAN Panel is rated for 100 A to 200 A main electrical service, with a 225 A busbar rating that allows 100% continuous solar and battery interconnection without costly main service upgrades.
What network connectivity is built into the SPAN panel?
SPAN includes built-in Wi-Fi, Ethernet (RJ45), Bluetooth, and integrated cellular LTE connectivity to ensure uninterrupted monitoring and control even if home internet is offline.
Can SPAN be installed indoors and outdoors?
Yes. The SPAN Panel features a NEMA 3R outdoor-rated weather-resistant architectural white glass-and-steel enclosure suitable for indoor basements, garages, or outdoor wall installations.
How does the SPAN Home app provide energy insights?
The app displays real-time energy flow from the grid, solar panels, and battery storage down to the watt, calculating historical consumption patterns and identifying energy-hog appliances.
Is SPAN compatible with solar inverters and battery systems?
Yes. SPAN integrates directly with Tesla Powerwall, Enphase, SolarEdge, and other major residential battery and hybrid solar systems.
What is the availability and certification status of the SPAN panel?
The SPAN Panel is engineered to UL 67, UL 916, and UL 869A standards. Canadian market distribution and local utility/ESA acceptance are subject to manufacturer verification. The unit is currently listed as sold out and unavailable for purchase.
Can individual circuits be turned on or off remotely?
Yes. Homeowners can turn individual branch circuits on or off with a tap in the SPAN Home app, providing instant circuit isolation during emergencies or travel.
Documents

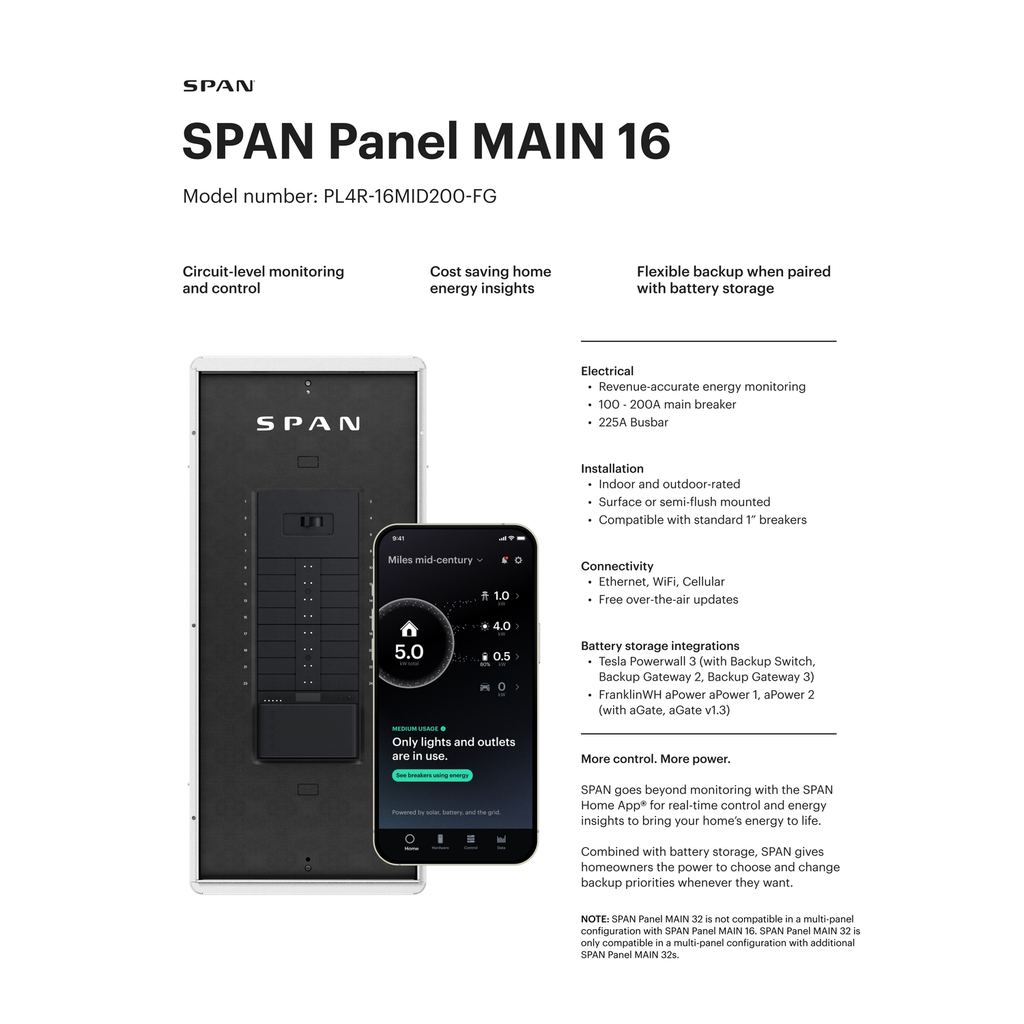

- SPAN Panel system specification sheet — 32-circuit 200A engineering data (PDF)
- SPAN Panel multi-panel and MLO architecture engineering specification guide (PDF)
- SPAN Remote Meter external power sensing and monitoring technical specification (PDF)
- Intertek ETL electrical safety authorization report for SPAN smart load centers (PDF)
Technical specifications sourced from manufacturer documentation published by SPAN.IO, Inc.
